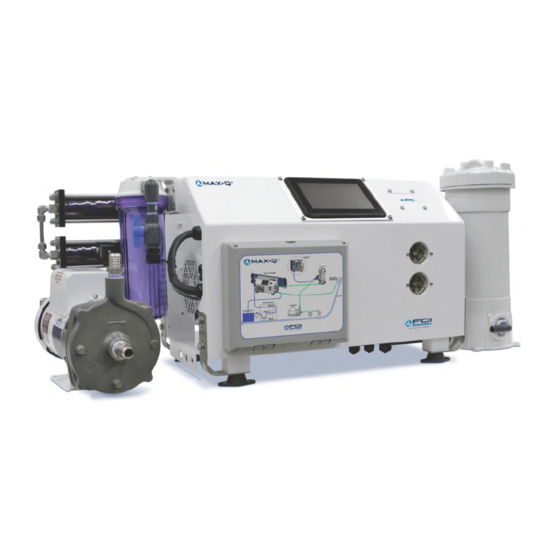

Page 3 Over 25 years of experience of engineering and extensive lab testing has gone into the design of your watermaker. In fact many industry standards are a result of innovations made by FCI Watermakers, including one‑touch commands, multiple station operation, remote system control, touchscreen displays, and automated pressure control.
Page 4: General
The term system will be used throughout this manual, and it generally refers to the FCI Watermakers System. Reading this manual in its entirety will familiarize you with the system and the operation of its components. By understanding the system in its entirety, one can readily operate and diagnose problems.
Page 5: Glossary Of Terms
GLOSSARY OF TERMS Following terms are helpful in becoming familiar with a FCI Watermakers Reverse Osmosis System. BOUNDARY LAYER / CONCENTRATION POLARIZATION When water permeates through the membrane, nearly all the salt is left behind in the brine channel. In any dynamic hydraulic system, the fluid adjacent to the wall of the vessel is moving relatively slow.
Page 6 The system pressure will need to be adjusted to maintain a precise amount of product water flow. For systems with APC, this adjustment will be automatic. FCI WATERMAKERS, INC. FCI WATERMAKERS, INC. General...
Page 7: Limited Warranty
NOTE: Warranty registration is required to activate your warranty. Please be sure to fill out the registration included in this manual and provide a copy to FCI Watermakers, Inc. WARRANTY PERIOD The following items are covered under warranty for the periods designated: Max•Q...
Page 8 The Reverse Osmosis Membrane Elements are not covered under warranty for any specific period by FCI Watermakers. Any misuse or improper operation or maintenance of the system that causes premature fouling of the Membrane Element is not under warranty.
Page 9: Warranty Registration
WARRANTY REGISTRATION INSTRUCTIONS: At the time of purchase of the FCI Watermakers system, please complete the warranty information listed below. After completing this form, please make a copy and submit the copy using one of the options at the bottom of the page—...
Page 10: Copyright Notification
FCI Watermakers, Inc. and protected by U.S. and international copyright laws. All software used in the design and manufacture of a FCI Watermakers Reverse Osmosis Desalination System is the property of FCI Watermakers, Inc. and protected by U.S. and international copyright laws.
Page 11: Fci Contact Information
FCI CONTACT INFORMATION If you have questions regarding your FCI Watermakers system or the contents of this manual, or if you need replacement parts, please do not hesitate to contact us immediately. Our hands-on technical support is always at your service.
Page 12: Table Of Contents
SCHEMATICS (Optional Actuated Valve, Three Phase, 380V, 50Hz) FINAL INSTALLATION CHECKLIST OPERATIONAL INSTRUCTIONS TEMPERATURE & PRESSURE EFFECTS CHART INITIAL STARTUP AND SHUTDOWN V4 CONTROL SYSTEM OVERVIEW DISPLAY OPERATIONAL OVERVIEW DISPLAY SCREENS SYSTEM FUNCTIONALITY SYSTEM ALARMS FCI WATERMAKERS, INC. FCI WATERMAKERS, INC. General...
Page 13 GENERAL ASSEMBLY DIAGRAMS / SOLENOID VALVE GENERAL ASSEMBLY DIAGRAMS / PRE‑FILTER GENERAL ASSEMBLY DIAGRAMS / FRESH WATER FLUSH GENERAL ASSEMBLY DIAGRAMS / ELECTRICAL GENERAL ASSEMBLY DIAGRAMS / PRESSURE VESSEL REVISION HISTORY REVISION HISTORY FCI WATERMAKERS, INC. FCI WATERMAKERS, INC. General...
Page 14: Table Of Figures And Tables
Figure 27: Operating the Media Filter (if equipped) Table 1: Specifications for Components Supplied by Installer Table 2: Component Maintenance Intervals Table 3: System Troubleshooting Guide Table 4: High Pressure Pump Troubleshooting Guide FCI WATERMAKERS, INC. FCI WATERMAKERS, INC. General...
Page 15: General Information
FCI watermakers are the most advanced desalinating systems available, which produce potable water from seawater or brackish water. For over a twenty years, FCI Watermakers, Inc. has pioneered technology and innovated features that have become standards for today’s desalinators: one-touch commands, multiple station operation and remote system control and monitoring, touchscreen displays, and automated pressure control.
Page 17: Theory Of Operation
• Thin Film Composite (TFC) • Chlorine sensitive, chlorine must be removed up stream of the membrane • Bacteria resistant • pH range is 3.0 to 11.0 • Highest water production rate of all reverse osmosis membranes FCI WATERMAKERS, INC. FCI WATERMAKERS, INC. General...
Page 18: Pre-Installation
The FCI Watermakers system is supplied with an installation kit which includes an assortment of hoses needed to install the system. Because of the...
Page 19 Always allow hoses and tubes to enter and exit straight from the connection for a minimum of one inch prior to a bend. If stress is placed on the fitting due to a tight bend the fitting will leak and may break. FCI WATERMAKERS, INC. Pre-Installation...
Page 20 ELECTRICAL POWER REQUIREMENTS — Ensure that the power source is sufficiently sized to provide the correct voltage and cycles during start up and operation. If unsure, please consult with your local installation specialist or qualified electrician. FCI WATERMAKERS, INC. Pre-Installation...
Page 21 R.O. membranes are not installed. If the R.O. membrane elements are not installed and you wish to install them at this time, contact FCI Watermakers, Inc. and supply us with your original purchase order number, FCI’s invoice number, and this system’s serial number.
Page 23: Piping & Interconnect Diagram
2 Way Solenoid Valve (Optional) (Ship’s Supply) Product (Ship’s Supply) Particulate 3 Way Solenoid Valve Water Tank Matter (PM) Probe (Ship’s Supply) Manual Needle Valve Flow Restrictor Auto Needle Valve Figure 3: Piping & Interconnect Diagram FCI WATERMAKERS, INC. Pre-Installation...
Page 24: Component Descriptions
Using third party, Non‑FCI components may void any and all FCI Watermakers Warranty. We only wish to help you enjoy the luxury of owning a FCI Desalinating System. Treat it properly by using only FCI supplied parts, recommended consumables, and authorized accessories.
Page 25 If the depth is too great, the membranes can be removed and remotely mounted on a bulkhead or overhead. (Special mounting fittings required, please consult your dealer or FCI Watermakers directly.) If the width is too great, the fresh‑water flush package can also be remotely mounted.
Page 27 The V4 Control System of the Max•Q is set up to work with the DTS, should you ever upgrade with the optional accessory. FCI WATERMAKERS, INC. Pre-Installation...
Page 28: Installation
PC board located on the back of the enclosure's cover. WIRING SCHEMATICS Wiring diagrams and schematics are available for reference when connecting the wiring. FINAL INSTALLATION CHECKLIST After completing the installation, a checklist is provided to help you check your work. FCI WATERMAKERS, INC. Installation...
Page 29: Components Supplied By Installer
The fitting must be installed on the boats hull in a position that provides continual feed water flow without air to the system. FCI WATERMAKERS, INC. Installation...
Page 30 • The FCI Watermakers System must not be tied into another existing auxiliary water line already supplying another accessory on the boat. • If the FCI Watermakers System is connected to a sea chest or stand DO NOT pipe, plumb the FCI Watermakers System feed line to the “top”...
Page 39 Treatment System (DTS), refer to the manual provided with the DTS. 10.9 Units: inches Tolerances: ± 0.10 inches Figure 13: Dimensions for Low Pressure Actuated Valve (optional) 37.62 Units: inches Tolerances: ± 0.10 inches 15.99 14.32 Figure 12: Dimensions of Media Filter (optional) FCI WATERMAKERS, INC. Installation...
Page 43: System Installation / Mounting
The pressure vessels and fresh‑water‑flush assemblies can be removed and mounted remotely if space is an issue. Special mounting fittings are required for the pressure vessels, please consult your dealer or FCI Watermakers directly. The mounting bracket for the fresh‑water‑flush assembly is designed to accommodate a remote installation.
Page 44 Open/Closed INLET ACTUATED VALVE MOUNTING (optional) Indicator Mounting consideration are unique to each installation. FCI Watermakers recommends you consult an installer for installation of the optional inlet actuated valve. FCI WATERMAKERS, INC. Installation...
Page 48: System Installation / Electrical Connections
Opening the cover will allow access to the PC board (attached to the back of the cover) and the contactor blocks (inside the enclosure). Cable Grips Screws Hinges System Left Panel Cover PC Board Contactor Blocks FCI WATERMAKERS, INC. Installation...
Page 49 Add more water if required. If pump does not build up pressure as motor develops speed, shut down and re-prime. DO NOT attempt to prime pump or add liquid while pump is in operation. FCI WATERMAKERS, INC. Installation...
Page 59: Final Installation Checklist
• All Coast Guard/local codes have been met • No iron or ferrous fittings have been used • Electrical connections are correct • Plumbing connections do not leak • Thru hull is open • Filter housings are tight • Hose clamps are tight FCI WATERMAKERS, INC. Installation...
Page 60: Operational Instructions
APC, always try to maintain the pressure necessary for the system to operate at its rated output. As a safety feature, the system will shutdown when the pressure is too high or too low. FCI WATERMAKERS, INC. Operational Instructions...
Page 61: Temperature & Pressure Effects Chart
1500 1400 1300 1200 1100 1000 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 ºC Figure 24: Water Temperature vs. Output (constant pressure) FCI WATERMAKERS, INC. Operational Instructions...
Page 63: V4 Control System Overview
V4 CONTROL SYSTEM OVERVIEW The V4 Control System was specially designed by FCI Watermakers for our reverse osmosis systems. The system is designed to be run either locally via the display, or remotely via remote display or remote IP access.
Page 64: Display Operational Overview
Timer Setpoint or a TDS Setting. These can be found in the setup section of the display. To change a setting, touch the number in white. Upon pressing a Numeric Input, the Numeric Keypad will open up. FCI WATERMAKERS, INC. Operational Instructions...
Page 65 Setup – Displays the Setup Screen which allows the user to change settings. Contact – Displays the Contact Screen. Direction Arrows – Allow the user to navigate through various screens. The arrows will be white when they can be pressed to show additional screens. FCI WATERMAKERS, INC. Operational Instructions...
Page 66 Flashing Green – System is active, and is either priming or initializing. Green – System is active and running. Red – System is shutting down. Flashing Blue – Fresh water flush delay is active and will start soon. Blue – Fresh water flush is active. FCI WATERMAKERS, INC. Operational Instructions...
Page 67 Slow Flashing Red – System is running, but a warning or alarm condition is present. Red – System has stopped due to a shutdown. Fast Flashing Blue – System is not ready to start due to Service Mode or Backwash mode being selected. FCI WATERMAKERS, INC. Operational Instructions...
Page 68: Display Screens
In addition you can Start / Stop / FWF your unit from this screen. If any run options are selected they will be displayed in the lower left hand corner of the screen. FCI WATERMAKERS, INC. Operational Instructions...
Page 69 DTS button as shown below. To start the DTS, press the DTS button. The Dockside Mode screen is displayed. You will need to confirm valve setup and press the Start button to proceed. FCI WATERMAKERS, INC. Operational Instructions...
Page 70 Clear – Press this button to clear the system once a shutdown has taken place. Stop – Press this button to stop the system. Navigation Bar – This allows the user to easily navigate between main screens. FCI WATERMAKERS, INC. Operational Instructions...
Page 71 Clear – Press this button to clear the system once a shutdown has taken place. Stop – Press this button to stop the system. Navigation Bar – This allows the user to easily navigate between main screens. FCI WATERMAKERS, INC. Operational Instructions...
Page 73 Clear – Press this button to clear the system once a shutdown has taken place. Stop – Press this button to stop the system. Navigation Bar – This allows the user to easily navigate between main screens. FCI WATERMAKERS, INC. Operational Instructions...
Page 74 Clear – Press this button to clear the system once a shutdown has taken place. Stop – Press this button to stop the system. Navigation Bar – This allows the user to easily navigate between main screens. Left Arrow – Goes back to the main setup screen. FCI WATERMAKERS, INC. Operational Instructions...
Page 75 Clear – Press this button to clear the system once a shutdown has taken place. Stop – Press this button to stop the system. Navigation Bar – This allows the user to easily navigate between main screens. Left Arrow – Goes back to the main setup screen. FCI WATERMAKERS, INC. Operational Instructions...
Page 76 Stop – Press this button to stop the system. Navigation Bar – This allows the user to easily navigate between main screens. Left Arrow – Goes back to the main setup screen. Down Arrow – Goes to page #2 of Service. FCI WATERMAKERS, INC. Operational Instructions...
Page 77 Stop – Press this button to stop the system. Navigation Bar – This allows the user to easily navigate between main screens. Left Arrow – Goes back to the main setup screen. Up Arrow – Goes to page #1 of Service. FCI WATERMAKERS, INC. Operational Instructions...
Page 78 Stop – Press this button to stop the system. Navigation Bar – This allows the user to easily navigate between main screens. Left Arrow – Goes back to the main setup screen. Down Arrow – Goes to page #2 of Config. FCI WATERMAKERS, INC. Operational Instructions...
Page 79 Press and hold the grey circle to load user defaults, a popup will appear confirming you want to Load User Defaults. Press and hold Yes until a red USER DEFAULTS LOADED appears. FCI WATERMAKERS, INC. Operational Instructions...
Page 80 Stop – Press this button to stop the system. Navigation Bar – This allows the user to easily navigate between main screens. Left Arrow – Goes back to the main setup screen. Up Arrow – Goes to page #2 of Config. FCI WATERMAKERS, INC. Operational Instructions...
Page 81 Clear – Press this button to clear the system once a shutdown has taken place. Stop – Press this button to stop the system. Navigation Bar – This allows the user to easily navigate between main screens. Left Arrow – Goes back to the main setup screen. FCI WATERMAKERS, INC. Operational Instructions...
Page 82 1. Select backwash mode by touching the grey circle marked, “MANUAL. ” 2. Once selected, use the on screen directions to complete a backwash. You will be instructed to set the media filter valves to the backwash position, and touch confirm when done. FCI WATERMAKERS, INC. Operational Instructions...
Page 83 3. You can select the valves icon towards the bottom center of the screen for help in the setup the media tank valves. 4. Once backwash position is set and the confirm button is pressed, you will be prompted to start the backwash process. FCI WATERMAKERS, INC. Operational Instructions...
Page 84 “BACKWASHING.” Also, the timer will indicate how many seconds are left in the backwash till completed. 6. Once completed, set the media tank valves back into service position and confirm. Backwashing has now been completed. FCI WATERMAKERS, INC. Operational Instructions...
Page 85 The Fresh Water Flush Interval can be left active even when you run your machine as normal. The control system will calculate and ensure there is a Fresh Water Flush completed on your system based on the number of days set by the user. FCI WATERMAKERS, INC. Operational Instructions...
Page 86 Clear – Press this button to clear the system once a shutdown has taken place. Stop – Press this button to stop the system. Navigation Bar – This allows the user to easily navigate between main screens. Left Arrow – Goes back to the main setup screen FCI WATERMAKERS, INC. Operational Instructions...
Page 88: System Functionality
Run Options are selected, they will be shown on the Home Screen in the lower left hand area. Certain Run Options will allow the system to start automatically. A manual Fresh Water Flush can also be selected when in Standby Mode from the Home screen. FCI WATERMAKERS, INC. Operational Instructions...
Page 89 Clear – Press this button to clear the system once a shutdown has taken place. Stop – Press this button to stop the system. Navigation Bar – This allows the user to easily navigate between main screens. Right Arrow – When pressed, system will proceed to the Initialize Sequence. FCI WATERMAKERS, INC. Operational Instructions...
Page 90 Clear – Press this button to clear the system once a shutdown has taken place. Stop – Press this button to stop the system. Navigation Bar – This allows the user to easily navigate between main screens. Right Arrow – When pressed, system will proceed to the Running Sequence. FCI WATERMAKERS, INC. Operational Instructions...
Page 91 When the system is in Run Sequence and stabilized: LPP – is on HPP – is on FWF Valve – is closed Quality Valve – directed to product tank APC (if equipped) – is stabilized FCI WATERMAKERS, INC. Operational Instructions...
Page 92 Clear – Press this button to clear the system once a shutdown has taken place. Stop – Press this button to stop the system. Navigation Bar – This allows the user to easily navigate between main screens. FCI WATERMAKERS, INC. Operational Instructions...
Page 93 When the system is in Flush Sequence and Fresh Water Flush Timer is counting down; LPP – is off HPP – is off FWF Valve – is open Quality Valve – directed overboard APC (if equipped) – open position FCI WATERMAKERS, INC. Operational Instructions...
Page 94 Clear – Press this button to clear the system once a shutdown has taken place. Stop – Press this button to stop the system. Navigation Bar – This allows the user to easily navigate between main screens. FCI WATERMAKERS, INC. Operational Instructions...
Page 95: System Alarms
Clear: Once you have changed the HPP Oil, navigate to the Setup / Stats. A reset button will appear under the life monitor for the HPP Oil. Hold the button for 5 seconds or until the button disappears. FCI WATERMAKERS, INC. Operational Instructions...
Page 96 Cause: Triggered when the HPP is running but the LPP pump is not meeting the minimum flow rate. Clear: Select the alarm, press the Ack Selected button, and clear the system by pressing icon in the lower left hand corner. FCI WATERMAKERS, INC. Operational Instructions...
Page 97 Cause: Triggered when the High TDS Alarm has been active for set High TDS Shutdown Timer duration. Clear: Select the alarm, press the Ack Selected button, and clear the system by pressing icon in the lower left hand corner. FCI WATERMAKERS, INC. Operational Instructions...
Page 98: Maintenance & Repair
• Hypochlorite • Petroleum Products • Bromide Or any other specific chemical not approved in writing by FCI Watermakers Inc. Use of non-authorized or misuse of authorized chemicals voids warranty. Never use third party “cleaners” or “storage” chemicals. Third party chemicals will dissolve copolymer components within the watermaker and will destroy the membrane element.
Page 99: Weekly Quick Check
Clean any salt water or salt deposits from the system with a wet rag. Check for water leaks throughout the system and supporting water lines. Check all tubing and high‑pressure hoses for wear and abrasion against rough surfaces. The hoses must not contact heated or abrasive surfaces. FCI WATERMAKERS, INC. Maintenance & Repair...
Page 100: Component Maintenance Intervals
(Table 2) is an estimate of the time intervals at which maintenance may be required on the various system components. This is based upon factual data compiled from FCI Watermakers installations around the world. However, this schedule must be adjusted to each individual system depending upon the variables listed.
Page 101: Component Maintenance & Repair Overview
Replace the seals every 1,000 hours and the valves every 1,500 hours. Replace of System) the oil the first 50 hours and every 500 hours thereafter. Refer to "HIGH PRESSURE PUMP MAINTENANCE & REPAIR" on page 111. Oil Level Sight FCI WATERMAKERS, INC. Maintenance & Repair...
Page 102 15 psi. The media in the filter should be replaced every year. DOCKSIDE TREATMENT SYSTEM (if equipped) Refer to the manual that is provided with the DTS for maintenance and repair information. FCI WATERMAKERS, INC. Maintenance & Repair...
Page 103: Inlet Thru Hull Maintenance & Repair
Installation chapter of this User’s Manual. INLET THRU HULL FITTING This is a non FCI Watermakers component. Keep the inlet thru hull fitting free and clear of debris and marine growth. If the inlet thru hull fitting is clogged, this results in a low feed pressure condition, which causes the system to shut off.
Page 104 (continued) SEA COCK VALVE This is a non‑FCI Watermakers component. The packing and connections of the inlet sea cock valve must be tight and must properly seal. Clean the valve cavity of debris or replace the seal and seat or the entire valve, as required. This section is under a vacuum condition while operating the system.
Page 105: Low Pressure Pump / Maintenance & Repair
Without the aid of a working capacitor the motor will “hum”, FCI WATERMAKERS, INC. Maintenance & Repair...
Page 106 6 months. Give three pumps of high temperature motor bearing lubricant into each grease jerk. Use a Polyurea Base Grease such as Chevron SRI (Polyurea Base) or Shell Dolium R (Polyurea Base). DO NOT USE LITHIUM OR SILICONE BASE GREASE. FCI WATERMAKERS, INC. Maintenance & Repair...
Page 107 Apply blue Loctite® to the motor shaft threads. Hold the Motor shaft and reinstall the impeller. Tighten the impeller by turning it clockwise until it is snug. Reinstall the volute. Tighten the bolts evenly. Thoroughly prime the pump. FCI WATERMAKERS, INC. Maintenance & Repair...
Page 109: Pre-Filter Element Replacement
WATERMAKERS SUPPLIED PRE-FILTER ELEMENTS. The resulting failure of the system to remain in operation, and or damage to the FCI Watermakers system caused by third party pre-filter elements is attributed to improper maintenance and operation, is the liability of the operator and owner, and is not covered by the FCI Watermakers warranty.
Page 110 Bleed Valve P/N 20-2261 Filter Cartridge 5 micron 40 sq. ft. (5 in x 13 in) Commercial Pre-Filter Housing Figure 25: Replacing the Pre-Filter Element FCI WATERMAKERS, INC. Maintenance & Repair...
Page 111: High Pressure Pump Maintenance & Repair
Without the aid of a working capacitor the motor will “hum, ” pull starting current (locked rotor) amperage, not rotate, and trip the supply power circuit breaker when attempting to operate the system. FCI WATERMAKERS, INC. Maintenance & Repair...
Page 112 Check the motor starter relay (contactor) for “burnt” contacts. SERVICING THE HIGH PRESSURE PUMP When servicing the high pressure pump, refer to the assembly drawing, specifications, and exploded view illustration on the following pages. FCI WATERMAKERS, INC. Maintenance & Repair...
Page 114 .492 / 12.5 Oil Capacity 12.0 oz. Maximum Fluid Temperature 140°F Inlet Port Thread 112" NPT-F Discharge Port Thread 318" NPT-F Shaft Diameter 518 in Hollow Weight 13.5 lbs. Dimensions 9.0 X 7.5 X 6.0 in FCI WATERMAKERS, INC. Maintenance & Repair...
Page 116: Membrane Replacement
Inspect the o‑rings on the end plug, replace if needed, lubricate the o‑ring and slide into the vessel. Slide rods forward through the mounting holes and re‑assemble nuts. Tighten until the washer does not spin freely. DO NOT OVERTIGHTEN Reconnect the hoses. FCI WATERMAKERS, INC. Maintenance & Repair...
Page 118: Cleaning And Storage Procedures
(20%) food-grade glycerin (propylene glycol). NOTE: USE OF CHEMICALS Although chemicals are necessary in some instances, FCI recommends using them only as needed. The chemicals can attack the membrane polymers and weaken the integrity of the membrane. FCI WATERMAKERS, INC. Maintenance & Repair...
Page 119 When returning the system to operation, discard the storage chemical in an environmentally safe manner. FCI WATERMAKERS, INC. Maintenance & Repair...
Page 120 Remove suction line from container and let system drain for 30 seconds. Rinse system with fresh water, to drain, for 15 minutes. When R.O. unit is first restarted, product water should be diverted to drain for the first 15 minutes. FCI WATERMAKERS, INC. Maintenance & Repair...
Page 121 Upon start up, after storage, open valves for operation. Start the system up and run for 15 minutes, with no applied pressure. When R.O. unit is first restarted, product water should be diverted for 15 minutes. FCI WATERMAKERS, INC. Maintenance & Repair...
Page 123: Troubleshooting
R.O. membrane element. Suspended solids fouling resulting from silt, coral dust, iron (rust), river or inland waterway debris, or other small solid matter may not be cleanable. For "System Troubleshooting Guide", refer to Table 3 on page 124. FCI WATERMAKERS, INC. Troubleshooting...
Page 124: System Troubleshooting Guide
Pressure beyond high pressure trip point Reduce pressure • System Pressure Adjust trip point Too High Switch has failed or wire connections Replace switch to switch are loose Check wire connection Replace wire Restriction downstream of brine discharge Remove restriction FCI WATERMAKERS, INC. Troubleshooting...
Page 125 Usually caused by one of the coils at what stage the fuse blows. (Ex. When HP in the solenoids or contactors pump starts, when fresh water flush solenoid engages etc.) Check connections to that component, secure wires or replace component FCI WATERMAKERS, INC. Troubleshooting...
Page 126 High quality light Pressure too low on system Increase pressure to rated output does not come on Membrane is fouled Clean or replace membrane Probe needs to be cleaned Clean or replace probe FCI WATERMAKERS, INC. Troubleshooting...
Page 127: High Pressure Pump Troubleshooting Guide
KNOCKING NOISE Inadequate inlet liquid supply. Check liquid supply. Increase line size, pressurize. • Inlet supply Broken or worn bearing. Replace bearing. • Bearing Loose pulley on crankshaft Check key and tighten set screw. • Pulley FCI WATERMAKERS, INC. Troubleshooting...
Page 128 NOT RUN PUMP WITHOUT LIQUID. Running pump dry. Increase hose one size larger than inlet port size. Pressurize. Starving pump of Increase hose one size larger than inlet port size. Pressurize. adequate liquid. Eroded manifold. Replace manifold. Check liquid compatibility. FCI WATERMAKERS, INC. Troubleshooting...
Page 129: Accessories & Optional Equipment
Granular‑Activated Charcoal Filters are great for post‑tank filtration, and remove particulate, chlorine and other contaminants found in your fresh water holding tank. REPLACEMENT PARTS FCI carries a complete line of replacement parts including filters, membranes, hoses, fittings, spanners, o‑rings and more. FCI WATERMAKERS, INC. Accessories...
Page 131: Parts List
Seal Kit, LP Pump, SS, HP Series 43-2235b Seal Kit, LP Pump, SS, HP Series 43-2235c Seal Kit, LP Pump, SS, HP Series 43-2235d Seal Kit, LP Pump, SS, HP Series 43-2420 Impellor, PVC, Low pressure pump, 4.5", Closed, HP FCI WATERMAKERS, INC. Parts...
Page 132 Spiral Wrap, 3/4", 6ft. 67-0001 Washer, Flat, 3/8 67-0001 Washer, Flat, 3/8 67-0002 Washer, Spring Lock, 3/8 67-0004 Screw, #10 x 1, Pillips Pan H, Sheet Metal 67-0005 Hex head Cap screw, 3/8-16x1" 67-0006 Screw, 5/16-18 x 3/4", HHC FCI WATERMAKERS, INC. Parts...
Page 133 70-0391 Hose Barb, Elbow, PVC 3/4"x3/4", MNPT, sch80 70-0395 Bushing, PVC3/4" x 1/2", TxT, sch 80 70-1621 Nipple, PVC 3/8" x 2", sch 80 70-1622 Elbow, PVC3/8", TxT, sch 80 70-2093 Nipple, PVC 3/4" x 2 FCI WATERMAKERS, INC. Parts...
Page 134 74-0464 Tee, PE, Black 1/4 MPT x 3/8"" Tube x 3/8 T"" 74-0467 Bulkhead fitting, PE, Black 3/8" 74-0468 Bulkhead fitting, PE, Black 1/2" 74-0473-11.80 Tubing, PE, 3/8" 74-0473-20ft Tubing, 3/8" PE 74-0473-3.13 Tubing, PE 3/8" FCI WATERMAKERS, INC. Parts...
Page 135 Valve, HP, SS 1/4" FNPT 84-0580 Plug, F, Solenoid Electrical connector w/cable grip 84-0580 Plug, F, Solenoid Electrical connector w/cable grip 84-4782 Solenoid, 2-Way, 24 VDC, 1/2", FWF 84-4835 Solenoid, 3-Way, 24 VDC, 1/4 FPT 85-4790 HPCV, 1/4" Valve FCI WATERMAKERS, INC. Parts...
Page 168: Revision History
REVISION HISTORY Revision Date Descripion 12/03/2014 Initial release. 12/12/2014 Extra word deleted (Osmosis) p30. HPP Specification layout improved p114-5. Order of Assembly Drawings swapped p163 and p164. 12VDC corrected to 24VDC p125. 06/01/2016 Schematics updated. FCI WATERMAKERS, INC. Revision History...
Page 170 Document Part Number: 97‑5044 Revision C 3782 W 2340 S, STE E | WEST VALLEY CITY, UT 84120‑7291 | 801 906 8840 | fciwatermakers.com...
