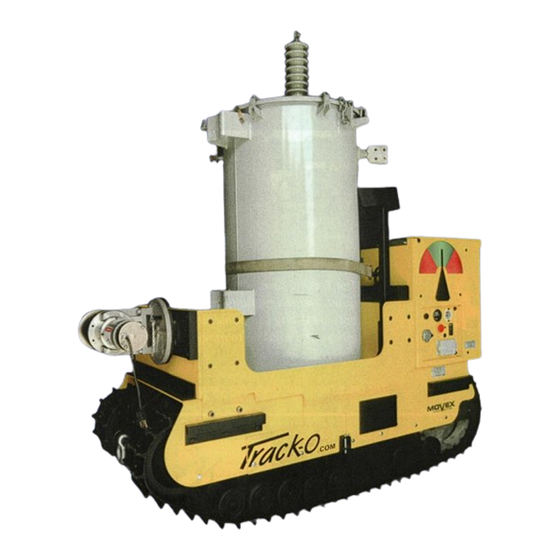

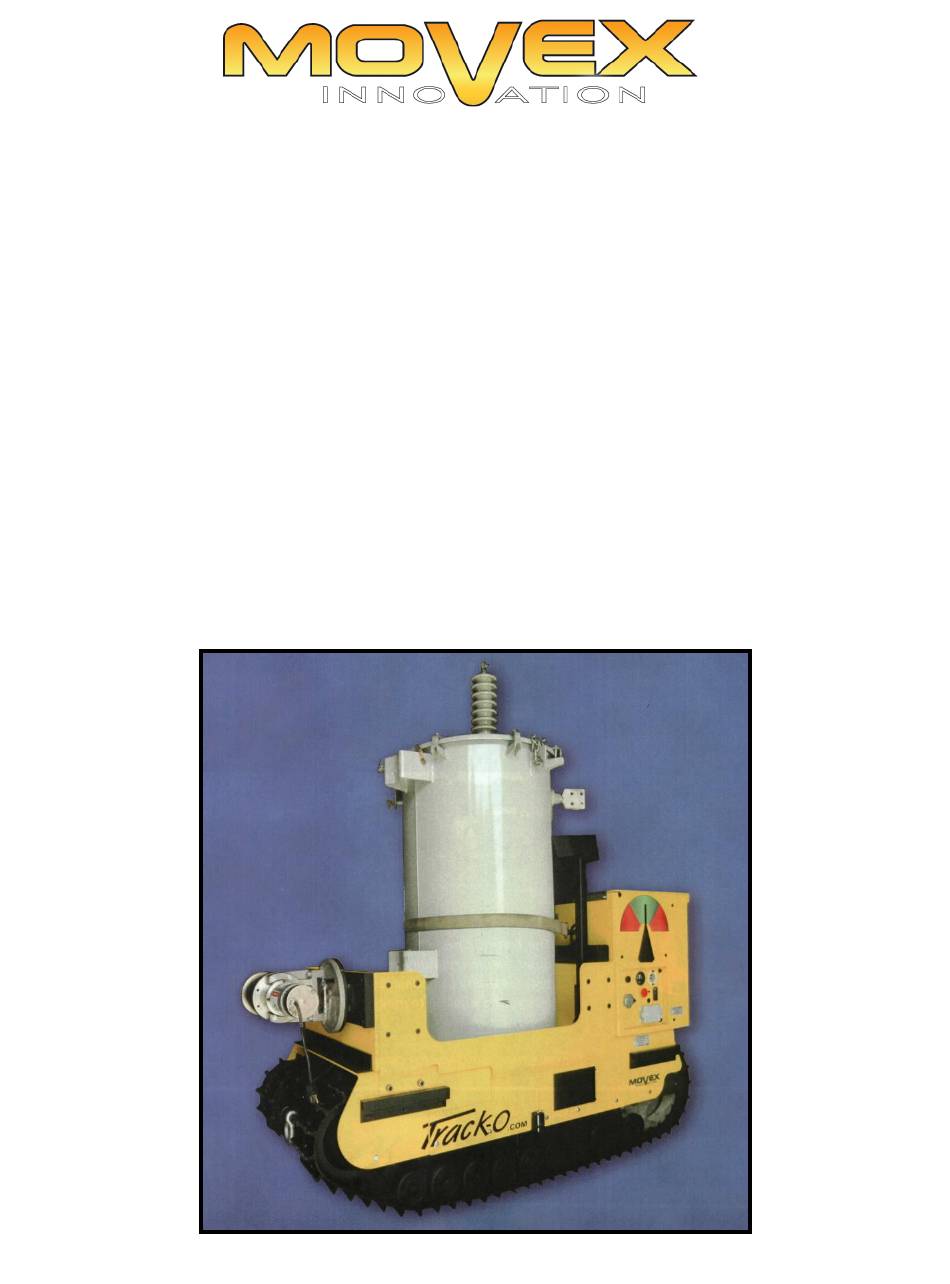

- Page 1 Track-O «CROSS-COUNTRY UTILITY» OPERATING MANUAL...
- Page 2 READ CAREFULLY THIS MANUAL BEFORE USING THE TRACK-O GENERAL SAFETY AND USE OF A TRACK-O OPERATOR TRAINING REQUIRED The employer must ensure that each operator of the TRACK-O has the skills to use it safely, after receiving full training and assessment by a qualified person. ...
- Page 3 PRECAUTIONS BEFORE USE: Make sure the route to take is free from objects and surfaces that are free from grease and/or lubricants which may result in a reduced friction tracks. Also, please make sure that the route to take do not require special protection if restricted area.
- Page 4 BEFORE EACH HANDLING OPERATION WITH A TRACK-O: Ensure that the load being moved is within the limits of weight recommended by the manufacturer, depending on the model used, and this, as well as on flat surface as inclined surface. ...
- Page 5 AFTER EACH HANDLING OPERATION WITH A TRACK-O: At the end of each use, power off the Track-O by pushing the emergency button on the electrical panel. If you have a wireless remote, power off the remote by pressing the emergency button on remote. Also, turn off the emergency stop on the control panel.
-
Page 6: Table Of Contents
TABLE OF CONTENTS GETTING STARTED / CROSS-COUNTRY UTILITY Putting breaker to “ON” position ........7-8 Control panel .............. 9 Wireless remote control ..........9 Wired remote control ........... 10 Moving the Track-O ............. 11 Inclinometers ............11 Working angles ............12 Configuration of the Track-O box ........ -
Page 7: Getting Started / Cross-Country Utility
OPERATING MANUAL GETTING STARTED / CROSS-COUNTRY UTILITY IMPORTANT «ON» UTTING REAKER TO POSITION DUE TO SHIPPING REGULATIONS, CIRCUIT BREAKERS ARE IN OFF POSITION BEFORE OPERATING THE TRACK-O, FOLLOW INSTRUCTIONS BELOW 1) REMOVE THE ACCESS PANEL LOCATED ON THE LEFT SIDE OF THE TRACK-O AND TURN YELLOW BREAKER SWITCH TO «ON»... - Page 8 OPERATING MANUAL 2) REPLACE THE ACCESS PANEL 3) UNSCREW THE SCREWS AND NUTS ON EACH SIDE OF THE BOX. TAKE CARE TO REMOVE ONLY SCREWS AND NUTS AT THE TOP OF THE BOX. 4) TIP UP THE INNER PLATE AND TURN YELLOW BREAKER SWITCH TO «ON»...
-
Page 9: Control Panel
OPERATING MANUAL CONTROL PANEL Note: Recharge when the needle shows 23 V. A - Cable connector for the Track-O’s wired control B - Voltmeter battery power display Empty battery 22V Full battery: between 24 and 28V C - Charging socket D - 24V outlet E - Emergency stop. -
Page 10: Wired Remote Control
OPERATING MANUAL WIRED REMOTE CONTROL ACTIVATION OF 2 SPEED FORWARD REVERSE TURN RIGHT TURN LEFT FOR SAFETY REASONS IT IS STRONGLY RECOMMENDED THAT WHEN THE TRACK-O IS NOT BEING USED TO MOVE A LOAD THAT THE EMERGENCY STOP BUTTON BE PRESSED (E ITHER ON RACK OR ON THE... -
Page 11: Moving The Track-O
OPERATING MANUAL MOVING THE TRACK-O By pressing gently the “Forward” or “Back” buttons, you can move the Track-O slowly: putting more pressure on the buttons will make the Track-O accelerate the movement. direction buttons allow left right movements of the Track-O. Light pressure allows for a simple curve, increased pressure for a tighter curve. -
Page 12: Working Angles
OPERATING MANUAL WORKING ANGLES When the Track-O is used on rough terrain or covered with vegetation, safety skates should be installed. The skates kept storage compartment. These pads fit into the side cavity of the cab to ensure the stability of the Track-O in case of unexpected side tilt due to uneven terrain. -
Page 13: Configuration Of The Track-O Box
OPERATING MANUAL CONFIGURATION OF THE TRACK-O BOX The Track-O box can be configured to carry securely several types of transformers. The sides can be removed if needed to allow the cooling radiators to be loaded on the Track-O box. -
Page 14: Securing The Transformer
OPERATING MANUAL SECURING THE TRANSFORMER Securely place the transformer against the support. Ensure that the adapter is required to properly shoulder the transformer to the support. adapter is set on the existing support to allow a better clearance for certain types of transformer. Note: This adapter is generally used for very old transformers. -
Page 15: Positioning The Capstan
OPERATING MANUAL POSITIONING THE CAPSTAN - STORAGE MODE The capstan has four positions: Two working positions, one position for troubleshooting and one position for storage. Storage mode (used when carrying the Track-O to a site). POSITIONING THE CAPSTAN - TROUBLESHOOTING MODE ... -
Page 16: Retention Mechanism
OPERATING MANUAL RETENTION MECHANISM FOR SLIPPERY GROUND The retaining mechanism is used as needed to stabilize the Track-O on slippery surfaces such as ice, when using the capstan. Retaining cylinders can be used in two ways, directly on the chassis of the automotive Track-O or on the safety skates ... -
Page 17: Connecting The Capstan To The Track-O
OPERATING MANUAL CONNNECTING THE CAPSTAN TO THE TRACK-O Connecting the capstan to the Track-O : 1. Connect the pedal power cable to the capstan 2. Activate the inverter to power AC electrical outlets The LED on the inverter will stay on for 4 hours. -
Page 18: Features
FEATURES CAPACITY of the Track-o The automotive Track-O has been designed for rough terrain use. It is nonetheless totally fit for back-lot access. DETAILS DESCRIPTION Metric Imperial Width 76 cm 30 in. Length 168 cm 66 in. Weight 739.35 kg 1,630 lbs Slow linear speed... - Page 19 FEATURES CONT’D 120 V Inverter Capacity: Continuous 1000 W 15 A (3000 W peak) Automatic shutdown conditions are: The battery level reaches 21.2V; The temperature of the inverter is too high; There is a short-circuit on the 120VAC output; ...
