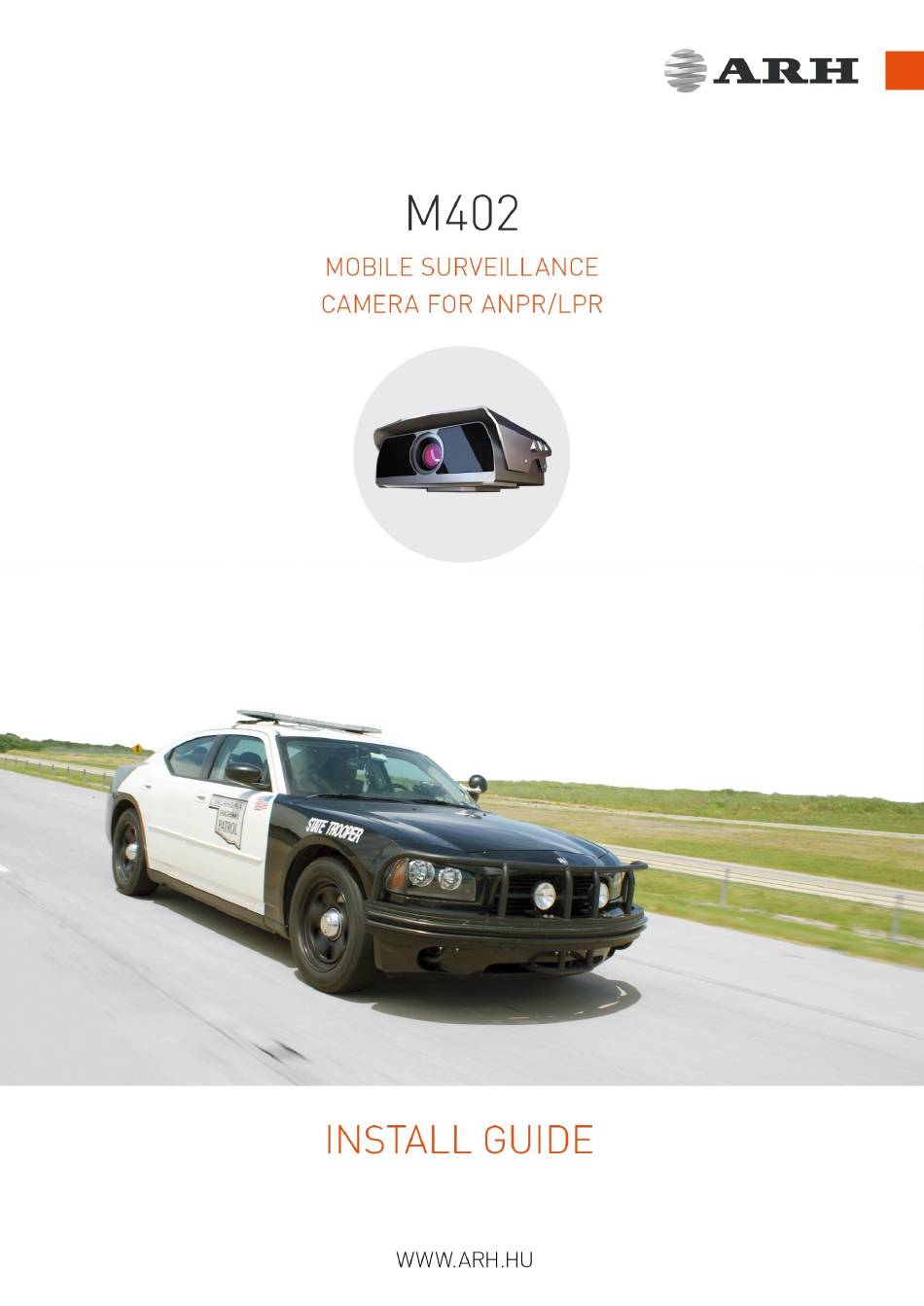

- Page 1 Page 1/14 M402 Install Guide...
-
Page 2: Table Of Contents
CONNECT THE CABLES ................................... 5 1. CABLE LAYOUTS ..................................... 5 SOFTWARE REQUIREMENTS ................................6 ACCESSING THE CAMERA ..................................7 RECOMMENDED CAMERA POSITION.............................. 9 MAINTENANCE / STORAGE ................................11 APPENDIX ........................................12 CONTACT INFORMATION ................................... 14 Page 2/14 M402 Install Guide... -
Page 3: Hardware Overview
Senses the level of ambient light to determine when to switch day/night mode. Do not cover the light sensor otherwise the automatic brightness control will not operate properly. Combined connector POE Network connection (more details at the Cable Layouts section). Page 3/14 M402 Install Guide... -
Page 4: Install The Hardware
Do not overtighten the screws. 1. MOUNTING The bracket can be mounted onto different surfaces. Use appropriate screws for installation according to the mountable surface. Failures due to inappropriate installation void the warranty. Page 4/14 M402 Install Guide... -
Page 5: Connect The Cables
Please use the proper input according to the specification and consider voltage drop if you use cables. Power requirement POE+ Power consumption 14 – 25 W Route the cable according to the image to avoid collecting rainwater at the socket. Page 5/14 M402 Install Guide... -
Page 6: Software Requirements
SOFTWARE REQUIREMENTS The standalone M402 is developed to operate without any kind of special software. That means that it does not require any special ARH software to be installed by the customer. ANPR is delivered separately. It has to be installed by the customer after purchase. -
Page 7: Accessing The Camera
5. Start a browser then enter the default IP address of the camera into the address bar (http://192.0.2.3). After this, the camera starts with administrator privileges, ready to be set up and configured. Page 7/14 M402 Install Guide... - Page 8 The firmware version of the camera can be seen on the right lower side of the screen. New firmware versions are regularly released. If update is necessary, do not hesitate to contact the support team of ARH. Page 8/14 M402 Install Guide...
-
Page 9: Recommended Camera Position
(inclined ~3° down relative to horizontal): ~2° difference Height of the vehicle rooftop may change the tilt angle ( Try to keep the license plate in a horizontal position in the live view (see above image). Page 9/14 M402 Install Guide... - Page 10 A line width of a character on the image should be at least 2 pixels. A properly set camera should provide a similar image: A proper sample image for ANPR Proper character sizes (in pixels) on the sample image Page 10/14 M402 Install Guide...
-
Page 11: Maintenance / Storage
the front of the camera and the camera itself is clean (no spider webs or any other contaminants inhibit the visibility), there are no strange circumstances (vapor, damage). Page 11/14 M402 Install Guide... -
Page 12: Appendix
2. Enter the ifconfig command to see the reserved Ethernets (e.g. eth0). 3. Enter the following command: ifconfig ethY 192.0.2.25 where Y is a free eth (e.g. eth1) and 192.0.2.25 is a sample IP address. Page 12/14 M402 Install Guide... - Page 13 The M402 is equipped with an 850nm InfraRed illumination unit. The human eye will not or slightly see this light coming from the LED’s. Do not look into the illumination unit directly from close range or for more than 100 seconds.
-
Page 14: Contact Information
Web: www.adaptiverecognition.com ARH Technical Support System (ATSS) is designed to provide you the fastest and most proficient assistance, so you can quickly get back to business. Information regarding hardware, software, manuals and FAQ are easily accessible for customers who previously registered to enter the dedicated ATSS site. Besides offering assistance, the site is also designed to provide maximum protection while managing your business information and technical solutions utilized.
