Installation

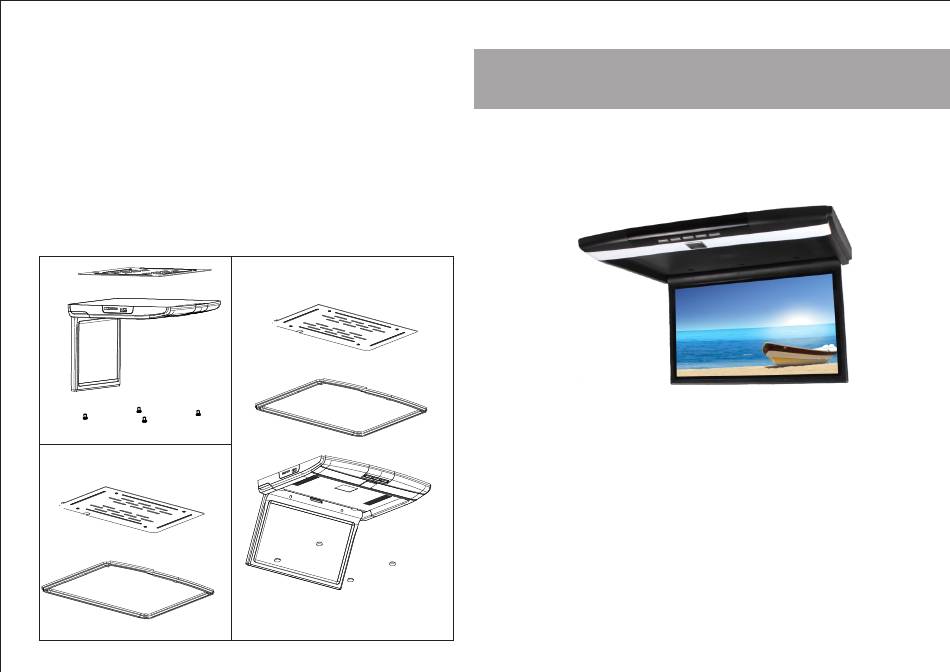

1. Open the monitor and take off the screws from the inside and remove the
metal support bracket from the unit as shown in the first illustration.
2. Carely take off the cover of the ceiling in your car. Make sure you have marked
the fix position of the monitor at the ceiling. Place the metal support bracket
under the ceiling cover at the marked position as shown in the second
illustration.
3.
Fix the monitor with the screws to the metal support bracket. The ceiling cover
must be between the monitor and the support bracket as shown in the third
illustration. Place the rubber stoppers inside the screw holes.
①
②
ceiling cover
③
ceiling cover
〃
〃
15.6&17.3ROOFMOUNTMONITOR
OPERATING
INSTRUCTIONS
Advertisement
Table of Contents
Related Manuals for iCartech RM173HD
Summary of Contents for iCartech RM173HD
- Page 1 Installation 〃 〃 15.6&17.3ROOFMOUNTMONITOR 1. Open the monitor and take off the screws from the inside and remove the metal support bracket from the unit as shown in the first illustration. 2. Carely take off the cover of the ceiling in your car. Make sure you have marked the fix position of the monitor at the ceiling.
- Page 2 Appearanceandfunction ①Power on/off ②Back rewind ③Left ④Last song ①.Open ⑤Exit ⑥Volume- ②.Light switch ⑦AV switch ⑧USB/SD switch ③.Analog+ ⑨Up ⑩Forward rewind ④.MENU ① ⑪Enter ⑫Right ②③④ ⑤⑥ ⑤.Analog- ⑬Down ⑭Next song ⑥.Power switch/AV Switch ⑮Play/Pause ⑯MUTE ⑦.Standby ⑰MENU ⑱Volume+ ⑦ Wiring Diagram - Power Red to 12V (24V) DC Fuse...
- Page 3 Montage 15.6 " & 17.3 " Deckenmonitor 1. Öffnen Sie den monitor und lösen Sie die Schrauben von der Innenseite, um die Metallhalterung zu entfernen. Siehe Bild 1. 2. Lösen Sie vorsichtig den Dachhimmel des Fahrzeugs. Markeiren Sie vorher die Positiondes Deckenmonitors.
- Page 4 Bedienelemente ①An/Ausschalten ②Zurückspulen ④Titel zurück ③links ①Öffnen ⑥Lautstärke - ⑤Exit ②Leuchte ein/ausschalten ⑧USB/SD Auswahl ⑦AV switch ③Weiterschalten ⑨hoch ⑩Vorpulen ④Menü ① ⑪Bestätigen ⑫rechts ②③④ ⑤⑥ ⑤Zurückschalten ⑭Titel weiter ⑬runter ⑥An/Ausschalten - Modi wechseln ⑮Wiedergabe/Pause ⑯Stummschalten ⑦Standby ⑱Lautstärke + ⑰Menü ⑦ Kabeldiagram - Strom - rot an 12V (24V) zündungsgeschaltet...
