Summary of Contents for Epic Office Furniture NPM-DLEG

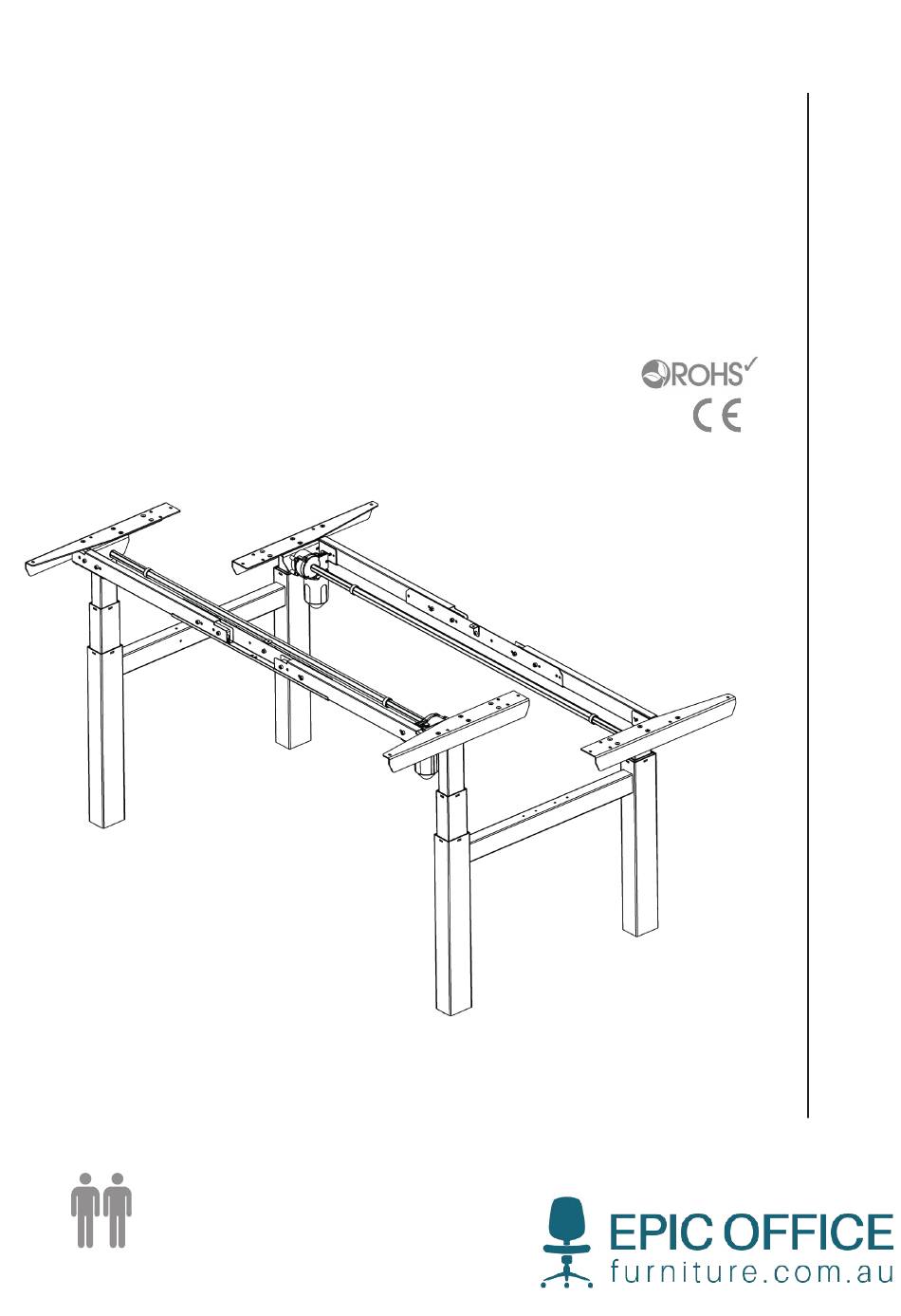

- Page 1 346980.1 Assembly instructions NPM-DLEG...
- Page 2 TABLE OF CONTENT 1. SAFETY AND WARNINGS IMPORTANT NOTES ! 2. USAGE 3. SET UP AND INSTALLATION Prior to installation, use and 4. OPERATION maintenance of the table frame, any installer and any user of the table 5. MAINTENANCE AND DEFECTS must study this assembly and operation 6.
- Page 3 9. DECLARATION OF CONFORMITY We hereby declare, under our sole responsibility that the following products : – Sit and stand table product type NPM-DLEG is in accordance with : – Directive 2006 / 42 / EF of The European Parliament and of the Council of 17 May 2006 on machinery...
- Page 4 7. Parts Legs Driveshaft Support - Left & right 2x 2 Transformer Power cable Controller Stiffening rails 5*16H Screws M6x10 x 24 M6x35 M6x10 Cable clips x 12 Transformer bracket Cable tie Extender wire Assembly instruction Made in PRC...
- Page 5 8. Assembly instructions ⁄ ⁄ Select the width of your frame Frame width 1420 mm Frame width 1720 mm ⁄ ⁄ 8. Assembly instructions Attach top beam with appropriate screws ⁄ ⁄ 8. Assembly instructions Mount the top bracket Mountingbag Assembly instruction Made in PRC...
- Page 6 8. Assembly directions IMPORTANT The frame must be assembled as shown on the drawing — upside down. Turn the frame around to standing position and follow the drawing on page 6. Assembly instruction Made in PRC...
- Page 7 Standing position — follow the next steps on this drawing. * See next page for components position and wiring. Assembly instruction Made in PRC...
- Page 8 Components position and wiring Black / Black Red / Red Important : Only plug leads red to red and black to black. To ensure correct up and down operation of the desk frame it has to be fitted with a table top or applied a similar weight.
