INSTALLATION INSTRUCTIONS AND
INSTALLER / SERVICE TECHNICIAN:
Use the information in this manual for the installation / servicing and keep the document near the furnace
for future reference.
Communication wire connected between the indoor and outdoor units must be rated for at least 120VAC,
they are protected by the outdoor unit breaker and must be sized appropriatly.
Do not install any metering device on the indoor coil. The expension valve is located in the outdoor unit.
If a metering device is already installed in the indoor coil, it must be removed.
Both refrigerant lines must be separately insulated in order to avoid condensation and to ensure proper
efficiency.
HOMEOWNER:
Please keep this manual near the furnace for future reference.
CAUTION:
Do not tamper with the unit or its controls. Call a qualified service technician.
Printed in Canada on
100% recycled paper
HOMEOWNER'S MANUAL

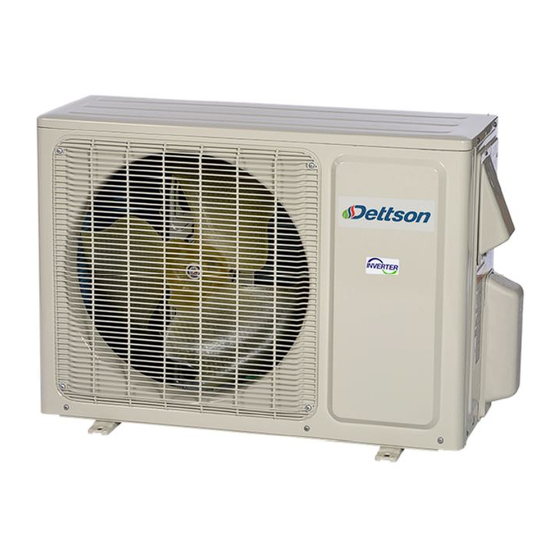

COND-ELD
Liquid line dia (In)
Gas line dia (In)
Models:
COND-ELD-09
COND-ELD-12
COND-ELD-18
COND-ELD-24
COND-ELD-CO-09
COND-ELD-CO-12
COND-ELD-CO-18
COND-ELD-CO-24
-09
-12
-18
-24
1/4
1/4
1/4
1/4
3/8
3/8
1/2
5/8
2020-05-08
Manufactured by:
Dettson Industries Inc.
Sherbrooke, Qc, Canada
www.dettson.com
X40258 Rev.A
Advertisement
Table of Contents
Related Manuals for Dettson COND-ELD-09
Summary of Contents for Dettson COND-ELD-09
- Page 1 HOMEOWNER: Please keep this manual near the furnace for future reference. CAUTION: Do not tamper with the unit or its controls. Call a qualified service technician. Manufactured by: Dettson Industries Inc. Sherbrooke, Qc, Canada www.dettson.com Printed in Canada on 2020-05-08 X40258 Rev.A...
-
Page 2: Table Of Contents
Table of Contents List of Figures Figure 1: Installation and Clearances ..SAFETY Figure 2: Winting Interface Board to ODU . . Figure 3: Indoor Coil Sensor Location ..1.1 Warning ......Figure 4: Tube Tightening . -
Page 3: Safety
• Have all wiring connected tightly. Loose con- nections may lead to overheating and a possible fire hazard. All installation or repair work shall SAFETY be performed by your dealer or a specialized subcontractor as there is the risk of fire, electric Installing, starting up, and servicing air conditioner shock, explosion or injury. -
Page 4: Specifications
2 Specifications Table 1 – Outdoor Unit Specifications Model COND-ELD-09 COND-ELD-12 COND-ELD-18 COND-ELD-24 Power Supply 208/230 VAC, 60 Hz, 1 phase Cooling Capacity (min-max) BTU/h 9000 (5000-11300) 12000 (3600-12502) 18000 (7165-20000) 22000 (8630-23200) Heating Capacity (min-max)* BTU/h 9554 (5300-12000) 13000 (5300-13500) 19000 (7430-23500) 23000 (8650-26000) -
Page 5: Installation
• The site should be able to withstand the full weight and vibration; • Select a dry place, and do not expose the unit to 3 Installation direct sunlight nor strong winds; • Make sure that the outdoor unit is installed in 3.1 Notices accordance with the installation instructions, and is convenient for maintenance and repair;... -
Page 6: Clearances
Installation of the interface card is made easy on the Condensate Drain Dettson’s Chinook and Supreme furnaces. Installation Coils are equipped with multiple drain connections. port has been designed on these furnaces. Refer to the... -
Page 7: Outdoor Unit
3.7 Outdoor Unit for installation location and thermostat wiring. Wire to the outdoor unit as shown in the figure. Electrical Wiring Figure 2 – Winting Interface Board to ODU 1. Remove the handle on the right side plate of outdoor unit; 2. -
Page 8: Connection Pipes
Table 3 – Checklist After Installation Items to be checked Possible malfunction Has the unit been fixed firmly? The unit may drop, shake or emit noise Has the refrigerant leakage test been performed? It may cause insufficient cooling (heating) Is thermal insulation sufficient? It may cause condensation Is water drainage satisfactory? It may cause water leakage... -
Page 9: Troubleshooting
4 Troubleshooting 4.1 Interface Board Figure 5 – Interface Board Table 4 – Interface Board Display... -
Page 10: Outdoor Unit Error Codes
4.2 Outdoor Unit Error Codes Table 5 – Outdoor Unit Error Codes 9k, 12k 18k, 24k LED Flashes LED Status # Malfunction D40 D41 D42 D43 Status Causes Yellow Red Green D5 D6 D16 D30 1 High pressure protection Unit stops Poor exchange (blockage), ambiant temperature too high, too much refrigerant 2 Anti-freeze protection... -
Page 11: Commissioning Checklist
5 Commissioning Checklist Indoor Unit: ______________ s/n#: ______________ Figure 6 – ODU Serial Number Location Outdoor Unit: ______________ s/n#: ______________ Filter is clean Line length: ________ ft Line height: ________ Temp sensor position at mid-height on A-coil A-coil orifice removed Error code: ________ Temp rise through the coil: T before:... -
Page 12: Replacement Parts
6 Replacement Parts Figure 7 – Exploded View 9k and 12k... -
Page 13: Table 6: Parts List 9K And 12K
Table 6 – Parts List 9k and 12k Description COND-ELD-CO-09 COND-ELD-09 COND-ELD-CO-12 COND-ELD-12 Front grill 01473051 01473051 01473051 01473051 Cabinet 0143304401P 0143304401P 0143304401P 0143304401P Axial flow fan sub assy 1033300901 1033300901 1033300901 1033300901 Fan motor 1501307301 1501307301 1501307301 1501307301 Chassis sub assy... -
Page 14: Figure 8: Exploded View 18K And 24K
Figure 8 – Exploded View 18k and 24k... -
Page 15: Table 7: Parts List 18K And 24K
Table 7 – Parts List 18k and 24k Description COND-ELD-CO-18 COND-ELD-18 COND-ELD-CO-24 COND-ELD-24 Front grill 01473049 01473049 016004000006 01473049 Front panel assy 01433047P 01433047P 000003060055 01433047P Axial flow fan 10335008 10335008 10335008 10335008 Fan motor 1501506402 1501506402 1501506402 1501506402 Chassis sub assy 02803281P 0280336701P 02803214P...
