Installation Instructions
and User Guide

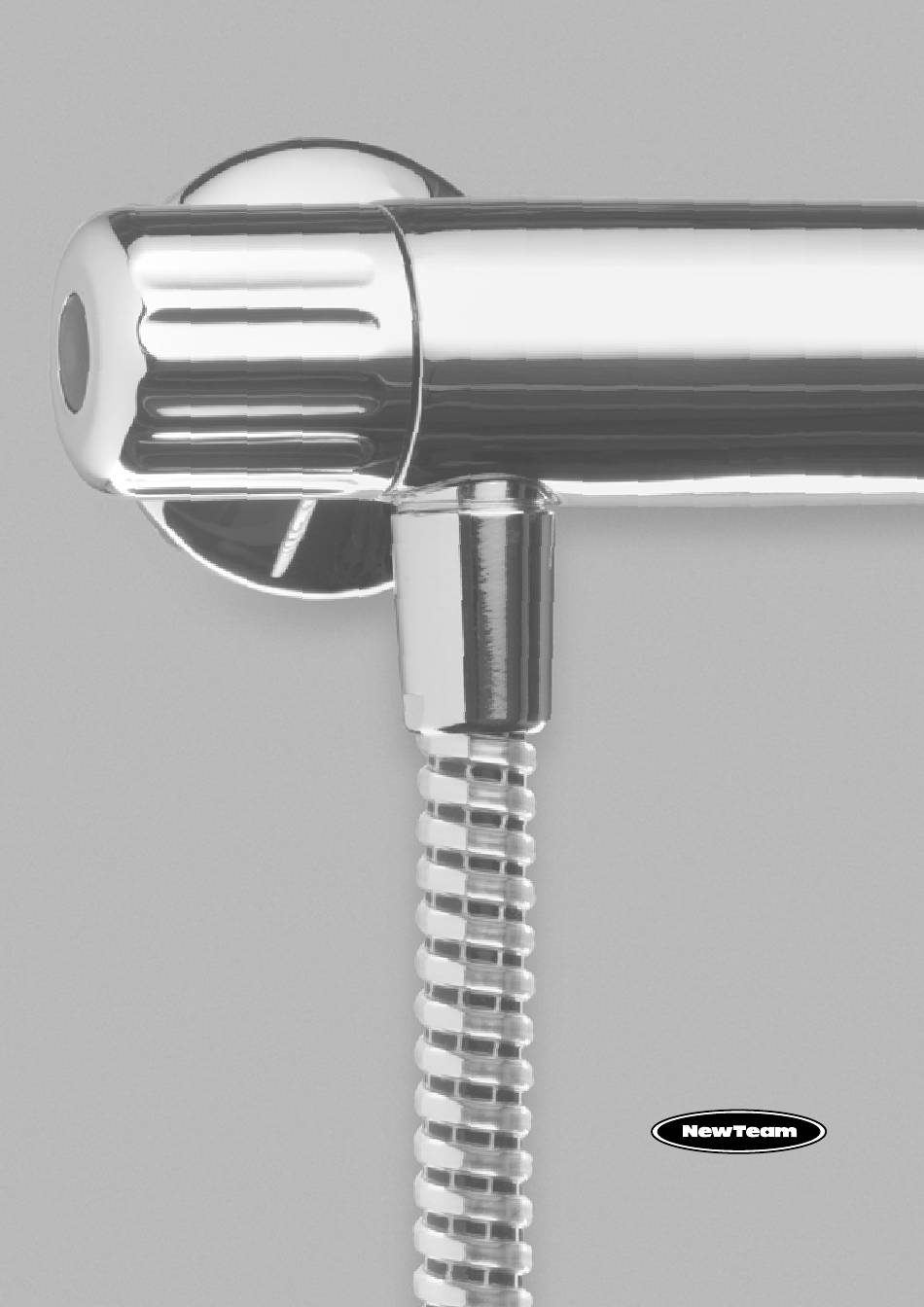

NEWTEAM 902-T
THERMOSTATIC MIXER SHOWER
IN THE EVENT OF ANY QUERY PLEASE CONTACT
THE NEWTEAM CUSTOMER HELPLINE
Tel : 01536 264 012
PLEASE KEEP THIS BOOKLET
FOR FUTURE REFERENCE
DEAR INSTALLER WHEN YOU HAVE READ THESE INSTRUCTIONS
PLEASE ENSURE YOU LEAVE THEM WITH THE USER
Advertisement
Table of Contents
Related Manuals for NewTeam 902-T
Summary of Contents for NewTeam 902-T
- Page 1 User Guide NEWTEAM 902-T THERMOSTATIC MIXER SHOWER IN THE EVENT OF ANY QUERY PLEASE CONTACT THE NEWTEAM CUSTOMER HELPLINE Tel : 01536 264 012 PLEASE KEEP THIS BOOKLET FOR FUTURE REFERENCE DEAR INSTALLER WHEN YOU HAVE READ THESE INSTRUCTIONS...
- Page 2 Product Features NewTeam 902-T 902-T NEWTEAM 902-T SHOWER VALVE...
-
Page 3: Table Of Contents
SPARE PARTS LIST GUARANTEE Refer to back cover for Guarantee, Customer Service and Replacement Parts Policy. In the event of any query regarding installation please contact the NewTeam Customer Service Department Tel: 01536 264 012 • Fax: 01536 409 201 E-mail: service@newteam.co.uk •... -
Page 4: Introduction
902-T The 902-T shower valve is thermostatically controlled. The NewTeam 902-T Mixer Valve is suitable for the following: • High Pressure systems to a maximum of 8.0 Bar (50 Metre Head). • Low Pressure systems with a minimum pressure of 0.1 Bar Cold Water Storage Tank (1 Metre Head). -
Page 5: Fitting Your Shower
• Plan the whole installation before you start. Cut the necessary pipework to length, assemble and offer up to the installation before making and soldered joints. • Carry out any cutting with a pipe cutter in preference to a hacksaw, to minimise swarf. Always remove sharp edges. NEWTEAM 902-T SHOWER VALVE... -
Page 6: General
Fitting Your Shower General: IMPORTANT THE 902-T MIXER SHOWER IS HELD IN POSITION BY THE PIPEWORK. IT IS ESSENTIAL THAT THE PIPEWORK IS RIGIDLY SUPPORTED CLOSE TO THE VALVE. A CONCEALED WALL MOUNT FIXING IS INCLUDED WITHIN THE SHOWER BOX. -
Page 7: Fitting The Shower
• Fit the mixer body to the 3 /4” BSP mounting spigots using the large sealing washers supplied with your fitting. Fig 4 - To install using installation bracket NEWTEAM 902-T SHOWER VALVE... -
Page 8: Fitting The Riser Rail
NOTE - The hose nut, and not the handset handle, fits into the slider, and the slider moves more freely on the rail, if gripped next to the rail rather than at the handset. Fig 5 NEWTEAM 902-T SHOWER VALVE... -
Page 9: Adjusting Maximum Temperature
If required, the valve can be adjusted to ensure that the indicated temperature is the same as the temperature obtained from the mixer. To do this, carry out the following steps:- 902-T Mixer Valve - Fig 6 1. Rotate the temperature control knob so that the water issuing from the mixer is at 38ºC. -
Page 10: Cleaning
Maximum temperature too low or too high. Re-adjust maximum temperature. See Adjusting Maximum Temperature. Spare Parts List SP-245-0001-CP Rail Ends SP-280-0302-CP Rail & Slider SP-168-0211-CP Zag Handset SP-285-0820-CP Hose NEWTEAM 902-T SHOWER VALVE... -
Page 11: Guarantee
Our service staff are fully qualified to advise on correct installation procedures and will be able to diagnose whether the fault will require a replacement part or a visit from a NewTeam engineer. If required, a service call will be booked, and either yourself or an appointed representative (who should be a person of 18 years or over) must be present during the visit. - Page 12 NewTeam Product Knowledge Product Features Product Styling Price Other (please specify) ______________________________________________________________ Please tick here if you do not require any further information or product updates from NewTeam POST BACK FOLD AND TAPE AS INSTRUCTED OVERLEAF NEWTEAM 902-T SHOWER VALVE...
- Page 13 NewTeam Ltd. Customer Service Dept. Brunel Road Earlstrees Industrial Estate Corby Northants NN17 4JW...
- Page 14 3rd Fold Affix Stamp NewTeam Ltd. Customer Service Dept. Brunel Road Earlstrees Industrial Estate Corby Northants NN17 4JW 2nd Fold...
