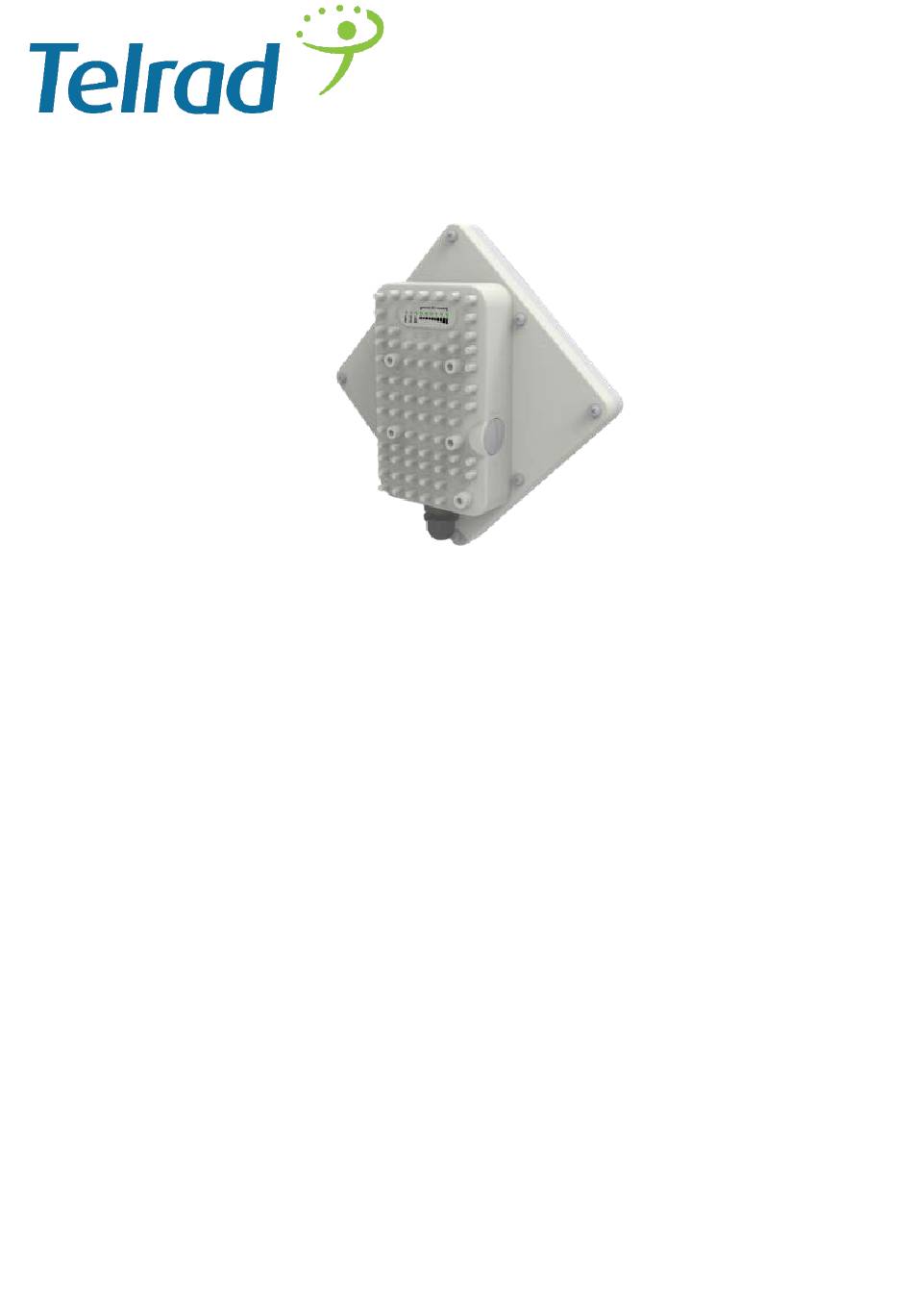

- Page 1 Outdoor CPE8000 Installation and Configuration Guide V1.0 Page 1...
-
Page 2: Table Of Contents
Table of contents OVERVIEW ..............................4 1.1. NTERFACE PECIFICATION ......................4 1.2. LTE I NTERFACE PECIFICATION ......................4 GETTINGSTARTED ..........................4 2.1. CPE U ACKING LIST AND ....................... 4 2.2. NSTALLING THE QUIPMENT ......................... 5 Device logic connection ........................5 Installing Outdoor Unit (ODU) ... - Page 3 Council) and the EU Restriction of Hazardous Substances (RoHS) Directive(Directive 2002/95/EC of the European Parliament and of the Council). FCC Notice, USA The CPE8000 units comply with Part 25 of the FCC rules. Operation is subject to the following two conditions: •...
-
Page 4: Overview

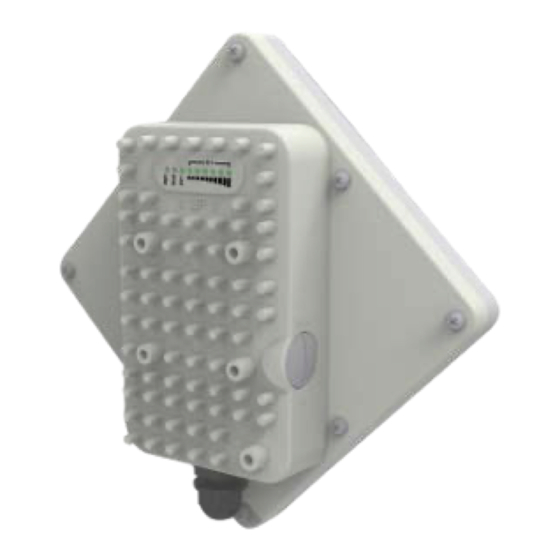

1. Overview The ODU is a high performance 4G LTE outdoor CPE product designed to enable quick LTE fixed data service deployment to the remote customers. It provides high data throughput and networking features to end users who need both bandwidth and quality service in the remote area. -
Page 5: Installing The Equipment
Upon receiving the product, please unpack the product package carefully. Each product is shipped with the following items: Table 2-1 Packing List Outdoor CPE Products Quantity ODU unit Power adapter Power Line Mounting brackets PC Ethernet Cable If you find any of the items is missing, please contact our local distributor immediately. CPE Unit：... -
Page 6: Installing Outdoor Unit (Odu)
the device becomes operational. For CPE with the RUN LED indicator, a slowly flashing light indicates the system has completed the startup procedure. To connect PC, LAN switch or other type of IP device to the CPE product, the user should use standard CAT5 Ethernet cable and connect to the appropriate LAN port. -
Page 7: Led Display
LED Display Function Description Indicator Power Indicator Green Color – Device is powered on Fast Blinking – Device is rebooting System Run Indicator Slow Blinking – Device is in normal operation Solid Green – LAN port is up LAN port status Blinking Green –... -
Page 8: Managing Cpe Device
3. Managing CPE Device The ODU supports several management interfaces including TELNET, WEB, and TR-069 for local or remote managements. However normal end user is only provided with WEB based access 3.1. WEB Login--192.168.0.1 It is a preferred to setup the CPE using a Web browser from a local PC connected to device LAN port. - Page 9 Page 9...
-
Page 10: Lte Configuration
3.3. LTE Configuration Radio Settings-ND&S Configure There is a LTE radio button which is used for the user can turn the radio on or off to restart the LTE module. The CPE would scan frequency auto as soon as the system has completed the startup procedure, and you can configure the fixed Frequency manual as follow: Note: After configure any parameters of the device, you must click the “Save &... - Page 11 And the CPE will obtain two different IP for two networks, as follow: Page 11...
-
Page 12: Enodeb Selection
3.4. eNodeB Selection The CPE would lock on the ND&S to connecting after the operator enabled the Lock ND&S when the Co-Channel Interference (CCI) is around. PLMN Selection Setting “Network Mode” as Nomadic, then click the “Search” button, After the CPE searched the “PLMN ID”, select the applicable PLMN ID and click “Add Info list”... -
Page 13: Enodeb Setting
eNodeB Setting After Enable the Preferred eNB List and configure the Earfcn/PCI, the CPE will scan the corresponding ND&S and connecting to — >eNB Settings — >Enable Preferred eNB List — >Enable Lock ND&S to the preferred list—>add the Earfcn and PCI—>Save & Apply Page 13... -
Page 14: Network Configuration
3.5. Network Configuration Modify MTU Size The default Operation Mode is Router, and the PC of the user that connected to device LAN port will obtain IP address via DHCP server of the device. The default MTU Size is 1428, user can modify the MTU Size if necessary Page 14... -
Page 15: Change Model From Router To Bridge
Change model from Router to Bridge The operation mode could be changed from Router to Bridge if necessary .Change model as follow picture: Network—>Internet—>L3 Bridge—>Save & Apply The operator’s PC which connected the LAN port of CPE will auto obtain the IP of APN Net when the CPE attached to the APN network, then you can connected to the APN network for Page 15... -
Page 16: Service Configuration-Dmz Setting
data services. And the PC should configure a static IP address as 10.1.1.x manual in order to visit the CPE managing page http://10.1.1.1 3.6. Service Configuration-DMZ Setting By enabling this option will make the specified local LAN host (DMZ IP) was exposed to the Internet, all ports can be accessed by other computers on the Internet. -
Page 17: Tr069 Configuration
TR069 Configuration After setting the Device Management Mode as TR069, you must also configure the validity acs url for monitoring the device via standard TR-069 ACS systems. Page 17... -
Page 18: Firmware Upgrade Over Http
Firmware Upgrade over HTTP Select the Default settings to reset the CPE after upgrade Click on the Browser button to select the firmware file to be uploaded to the device. Click the” Upgrade” button to begin the upgrade process. Please do not interrupt the upgrade process and continue to wait for the following pop window to appear. -
Page 19: Change Password
Change Password You can select the language or modify the web login password via the Maintenance page. Load Factory Default Click the “Restore” button will restore the device to original factory setting. User will need to reconfigure the authentication setting in order to get the device operational. Maintance—>System Rest—>Restore Page 19... -
Page 20: Faq And Troubleshooting
4. FAQ and Troubleshooting My PC cannot connect to the CPE. Re-plug the PC Ethernet cable and check if the PC LAN connection is up or showing activity. Check if the system run LED is on. If it is not, check the power cord and make sure it is connected properly.
