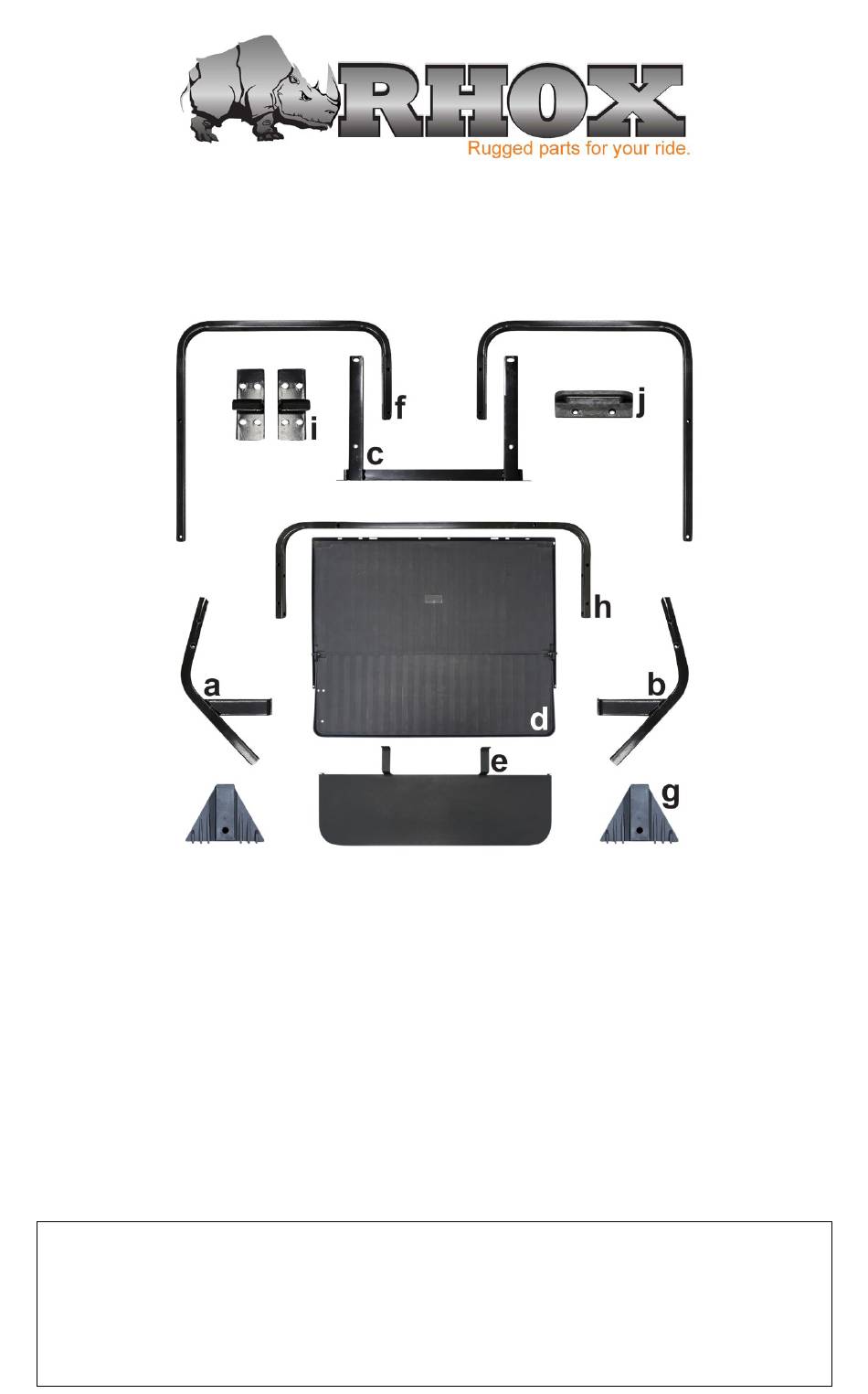

Contents of SEAT-341 RHOX 300 Series Rear Seat Kit:
a
b
c
d
e
f
g
h
i
j
k
NOTE: Yamaha G14-G19 carts require TOP-0108 Top Struts for OE Top (not included).
Caution: Please read through the instructions carefully. Installer is responsible for
damage if instructions are not followed properly. Look behind each drill or cut loca-
tion BEFORE YOU DRILL OR CUT. Installer is responsible for damage (i.e. drilling/
cutting into a wiring harness, battery, fuel tank etc.). Extra installers will be helpful in
some parts of the installation. Refer to vehicle's maintenance manual for torqueing
specifications on reused hardware.
SEAT-341
Yamaha G14-G22
RHOX Seat Kit
Installation Instructions
(1 ea.) Front Seat Back Support, Driver Side
(1 ea.) Front Seat Back Support, Passenger Side
(1 ea.) Vertical Support Bracket
(1 ea.) Seat Platform
(1 ea.) Foot Plate
(2 ea.) Handrails
(2 ea.) Foot Plate Support Brackets
(1 ea.) Rear Seat Back Support Frame
(2 ea.) Rear Seat Back Brackets
(1 ea.) Seat Bottom Handle
(1 ea.) Box of Hardware (Contents on Next Page)
Advertisement
Table of Contents
Related Manuals for RHOX SEAT-341
Summary of Contents for RHOX SEAT-341
- Page 1 SEAT-341 Yamaha G14-G22 RHOX Seat Kit Installation Instructions Contents of SEAT-341 RHOX 300 Series Rear Seat Kit: (1 ea.) Front Seat Back Support, Driver Side (1 ea.) Front Seat Back Support, Passenger Side (1 ea.) Vertical Support Bracket (1 ea.) Seat Platform (1 ea.) Foot Plate...
- Page 2 Contents of SEAT-341 Hardware Kit Bag #1 #2 #3 #4 #5 10mm x 80 Hex Head Bolts 10mm x 70 Hex Head Bolts 10mm x 45 Hex Head Bolts 10mm x 30 Hex Head Bolts 10mm x 25 Hex Head Bolts...
- Page 3 Installation Preparation Engage parking brake. Turn key OFF. Electric Carts Only: Place Tow/Run Switch in Tow. Remove top. Carts with Non-Collapsible Struts: The factory struts will need to be modified in order to be reused. Carts with Collapsible Struts: If reinstalling the top, keep the top attached to the front struts and prop up the rear of the top Carts with Non-Collapsible Struts...
- Page 4 Remove the seat back support. Retain hardware and (2) rubber boots. Rear Seat Kit Installation Install the new front seat back support brackets where the original bracket was installed. Mount using Original Hardware and boots. NOTE: The driver and passenger side brackets are different.
- Page 5 Loosely install the seat platform to the front seat back support brackets using (2) 10mm x 25 Hex Head Bolts, (4) Flat Washers and (2) Nylock Nuts (Bag #2). NOTE: Protect the rear body from scratches with a thick blanket or clean piece of cardboard.
- Page 6 Loosely fasten the footplate to the vertical support bracket using (2) 10mm x 30 Hex Head Bolts, (4) Flat Washers and (2) Nylock Nuts (Bag #3). Loosely fasten the longer leg of a handrail to the rear most portion of the seat platform (blue arrow) using (1) 10mm x 40 Phillips Head Truss Bolt, (1) Flat Washer and (1) Nylock Nut (Bag 4).
- Page 7 12. Loosely fasten the top of the handrails to the support frame (green arrow, page 6) using (2) 10mm x 70 Hex Head Bolts, (4) Flat Washers, (2) Nylock Nuts and (2) Spacers (Bag #4). 13. Install the front seat back cushion using the Original Hardware. Loosen the front seat back supports temporarily if the holes do not align.
- Page 8 (red arrows) using the Original Hardware. Carts w/o Collapsible Struts or Extended Tops: If reinstalling the OE top or adding a RHOX extended top, install TOP-0108 rear struts to the rear seat back support frame (black arrows). Modify the OE struts as shown to reuse as front and middle portions of struts to support top.
