Summary of Contents for Allen + Roth TPGAZ2009

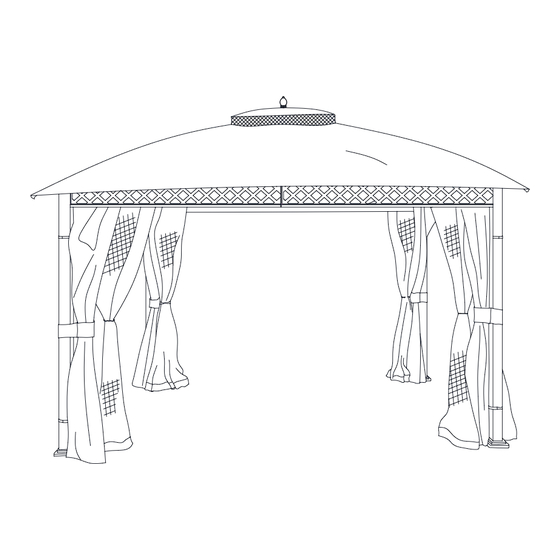

- Page 1 12 FT × 12 FT STEEL BEAM GAZEBO MODEL #TPGAZ2009...
- Page 2 PACKAGE CONTENTS DESCRIPTION DESCRIPTION DESCRIPTION PART PART QUANTITY PART PART QUANTITY Decoration Ball Post Small Center Connector Base Plate Large Center Connector Cover Hook Connector Hang Ring Small Top Bar Long Top Bar Corner Connector Large Roof Connector Small Roof Short Top Bar Mosquito Net Left Long Bar...
- Page 3 HARDWARE CONTENTS (shown actual size) M6 × 15 mm M6 × 32 mm M6 × 15 mm M6 × 15 mm Qty. 4 Qty. 8 Qty. 8 Qty. 48 Stake Wrench Wrench Qty. 16 Qty. 1 Qty. 2 allenandroth.com...
- Page 4 SAFETY INFORMATION Please read and understand this entire manual before attempting to assemble or install the product. Two to four people are need for assembly. Maximum load for the roof hook: 50 lbs. WARNING: KEEP ALL FLAME AND HEAT AWAY FROM THIS TENT FABRIC. This tent meets the flammability requirements of CPAI-84.
- Page 5 INSTALLATION INSTRUCTIONS 2. Insert the right long bar (J2) into the left long bar (J1). Secure together using M6*15 mm bolt (T). Repeat the procedure for the other right long bar (J2) and the left long bar (J1). Tighten securely with the wrench (X). Hardware Used Wrench 3.
- Page 6 INSTALLATION INSTRUCTIONS 4. Fix the corner connector (Q ) and the post (M) together by the screw M6*15mm (W). Fix the mosquito net pipe (L) and connector (P) to the bars (J1/J2) by the screw M6*15mm (U). Tighten securely with the wrench (X). Hardware Used ×...
- Page 7 INSTALLATION INSTRUCTIONS 7.Insert the long top bar (E) into the large center connector (C), connect the connector pipe (F) with the long top bar (E), then fix the connector pipe (F) and the corner connector (Q) together by the screw M6*32mm (V).
- Page 8 INSTALLATION INST RUCTIONS 9. Insert each small top bar (D) into the small center connector (B). Attach the small roof (R2) on the small top bar (D), then secure with the decoration ball (A). Put the large roof (R1) on the top bar shaft. allenandroth.com allenandroth.com...
- Page 9 INSTALLATION INSTRUCTIONS Connect the small top bar (D) with the large top bar (E). Hang the mosquito net (S1) onto inside 4 12 of the mosquito net pole, hang the sidewall (S2) onto outside of the mosquito net pole, as shown. allenandroth.com...
- Page 10 INSTALLATION INSTRUCTIONS 13. Move the cover (O) upward, fix the base 4 13 plate (N) by the stake (Z), then move the cover (O) down. Hardware Used Stake allenandroth.com...
