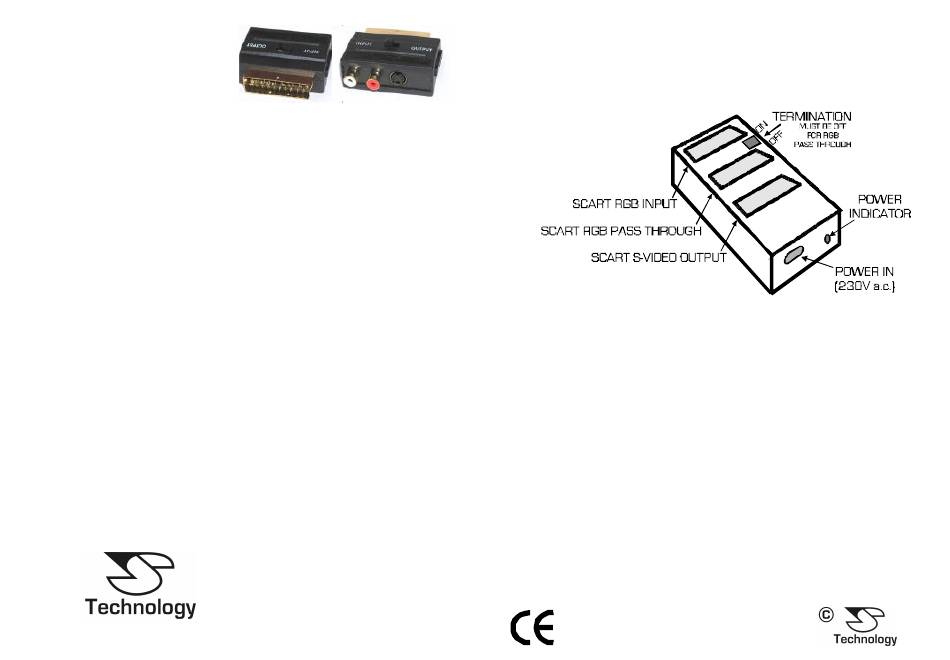

Optional SCART to Mini-DIN &
Audio Adaptor.
Allows for use of standard S-Video
cables with the Version 2 Converter.
Technical Specification.
Input:
RGB input from domestic video equipment, 1V pk-pk.
SCART input connector.
Output:
Separated luminance and chrominance signals via SCART.
RGB passed through to a SCART connector.
Left and right audio available at the SCART.
Power:
Standard fused (3A) UK mains plug, 230V and 50/60Hz ac.
consumption 1W. LED power indicator.
Dimensions:
150x85x48mm.
WARNING!
The RGB to S-Video converter is powered by 230V mains. All normal precautions
should be observed. Do not spill any liquids on the unit. Do not attempt to service
the unit. Do not cover the unit, do allow for ventilation. Do not use a higher rating
of fuse, and only replace with a like fuse.
combustable substances.
In the unlikely event the unit falters for any reason, disconnect from the mains
supply and retry after a few minutes. Contact information is provided below.
© 2002 – 2003
E-mail: support@rgbtosvideo.com Tel: 01294 471468 Fax: 01294 470916
Power
Do not spray the unit with any
J.S. Technology,
APL Centre,
Stevenston Ind. Est.,
Stevenston.
Ayrshire
KA20 3LR
RGB to S-Video Converter, Version 2.
http://www.rgbtosvideo.com
Instruction Manual.
•
Input of RGB from a DVD player, Sky Digibox, On/ITV/Freeview Digital box, Digi-
tal Cable, or any other domestic RGB video source.
•
RGB Pass-through - Keep RGB fed to your TV while still having an S-Video output,
idea for dual viewing or recording.
•
Improved S-Video picture quality via SCART connector, adaptor available for 4-pin
mini-DIN.
•
Wide Screen Switching on SCART outputs - Pin-8 Switching still present.
•
Record to S-VHS and D-VHS via the RGB to S-Video converter from digital TV.
•
Audio is passed through without modification to ensure optimum audio quality.
The Converter unit should be connected to the RGB source via a FULLY CONNECTED
SCART lead, or one that has at least the RGB, audio and composite connections. Fully
connected SCART leads are available at most retailers. The unit requires 230V a.c. 50-
60Hz mains supply to operate.
Designed & manufactured in UK/Europe.
2002-
2003
Advertisement
Table of Contents
Related Manuals for J.S. Technology RGB SV-2
Summary of Contents for J.S. Technology RGB SV-2
- Page 1 The Converter unit should be connected to the RGB source via a FULLY CONNECTED SCART lead, or one that has at least the RGB, audio and composite connections. Fully J.S. Technology, connected SCART leads are available at most retailers. The unit requires 230V a.c. 50- APL Centre, 60Hz mains supply to operate.
- Page 2 Configuration of RGB Pass-through System with the Configuration of the Digital Set-top Box and DVD Player. RGB to S-Video Converter. For Sky Digital, press the "Services" button on the remote control to bring up the services menu. Go to option 4 - System Set-up. Then to 1 - Picture Settings. Ensure that Video Output is RGB, not PAL.
