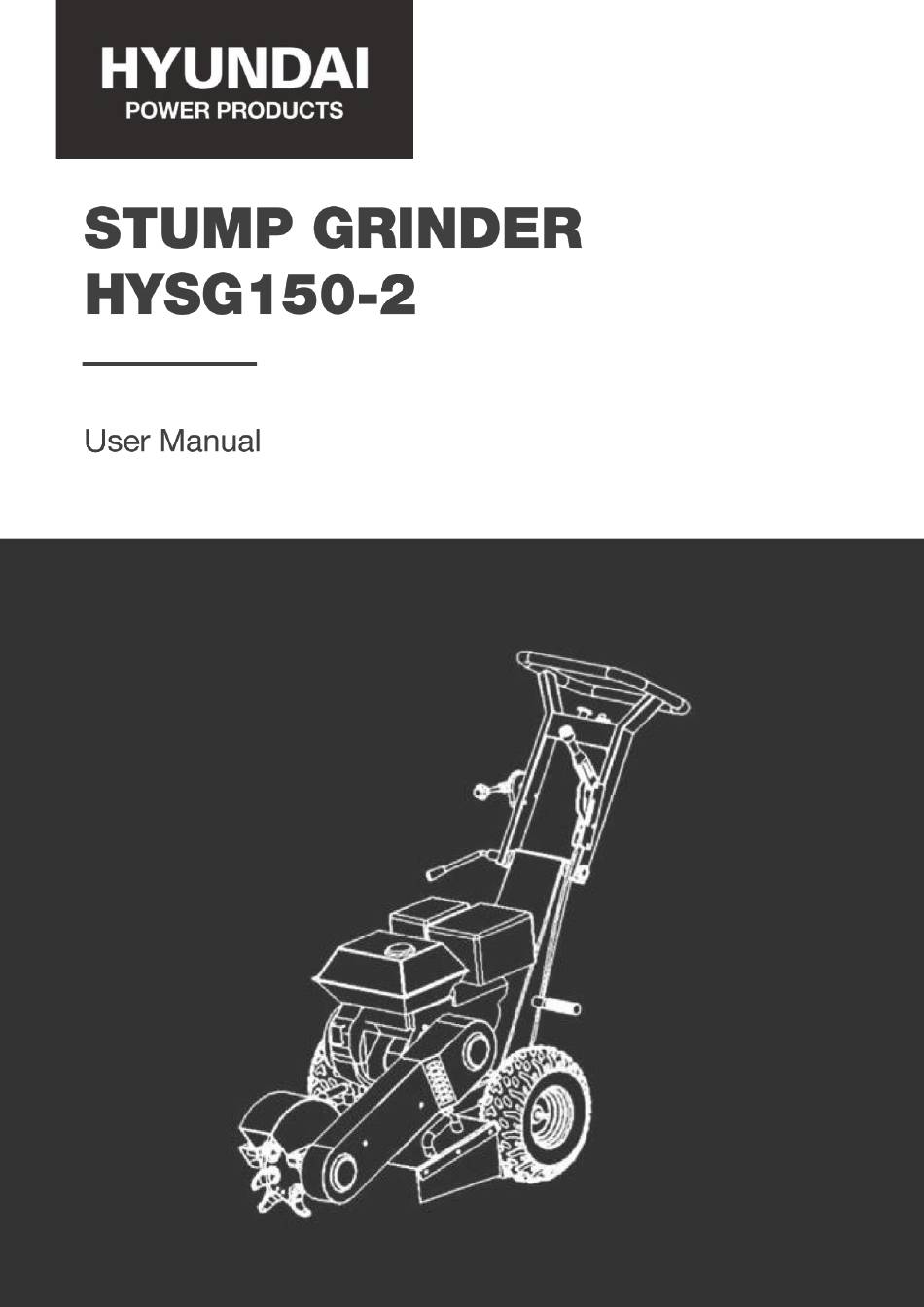

Hyundai power products HYSG150-2 User Manual

Stump grinder
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HYSG150-2 and is the answer not in the manual?

Questions and answers

Related Manuals for Hyundai power products HYSG150-2

Summary of Contents for Hyundai power products HYSG150-2

  • Page 2: Table Of Contents

    INDEX CONTENTS PAGE NO.S SAFETY 3 - 8 ASSEMBLY 9 - 10 FUEL & OIL 11 - 12 STARTING PROCEDURE STOPPING PROCEDURE OPERATION 14 - 18 MAINTENANCE 18 - 22 STORAGE & WINTERIZATION TRANSPORTATION TROUBLE SHOOTING SPECIFICATION DECLARATION OF CONFORMITY RECYCLING &...

  • Page 3: Safety

    1. SAFETY General Safety Notes. The operator of the machine is responsible for, and has a duty of care in making sure that the machine is operated safely and in accordance with the instructions in this user manual. Keep the manual safe and pass it on if the machine is loaned or sold to another user.
  • Page 4 1.10 Carbon Monoxide (where applicable). 1.11 Carbon monoxide is a colourless and odourless gas. Inhaling this gas can cause death as well as serious long term health problems such as brain damage. 1.12 The symptoms of carbon monoxide poisoning can include but are not limited to the following;...
  • Page 5 1.20 General Fuel Safety (where applicable). CAUTION ALL FUELS ARE FLAMABLE Fire Hazard – keep fuel away from all sources of ignition for example heaters. 1.21 Lamps, sparks from grinding or welding. 1.22 DO NOT carry out hot work on tanks that have contained fuel. 1.23 ALWAYS keep the work area tidy.
  • Page 6 1.46 All trailing cables should be routed so as not to cause any kind of trip hazard. 1.47 NEVER work on or near electricity with wet hands, wet clothing and wet gloves. 1.50 Batteries (where present). 1.51 Batteries present a risk if they become damaged by the possible leaking of electrolyte.
  • Page 7 recommended to observe the condition of your hands and fingers. Seek medical attention immediately if any of the above symptoms should occur. 1.70 Noise (where applicable). 1.71 The operating noise of the machine can damage your hearing. Wear hearing protection such as earplugs or ear defenders to protect your hearing. Long-term and regular users are advised to have hearing checked regularly.
  • Page 8 1.92 NEVER allow children or anyone unable to fully understand the directions given in this manual to operate this product. 1.93 Make sure you keep this manual handy so you may refer to it whenever questions arise and ensure you pass this manual on if the machine is loaned or sold. 1.94 Correct Personal Protective Equipment (PPE) MUST be worn at all times when operating or repairing this machine.

  • Page 9: Assembly

    2. ASSEMBLY Engine Wheel Washer Handle Bolt Washer Support...
  • Page 10 Handlebar Upper Handle Handle Bar Bolt Adjustment Lever Tow Bar Lock Front Support Tow Bar Bolt...

  • Page 11: Fuel & Oil

    3. FUEL & OIL CAUTION This machine is shipped WITHOUT Oil and Fuel and will require filling BEFORE use. Failure to do so will result in engine damage that will not be covered by the warranty. Recommended Oil: SAE30 or 15W40 Engine Oil Oil Capacity: 1200ml Recommended Fuel: Straight Unleaded Petrol Fuel Tank Capacity: 6Litres...
  • Page 12 FUEL CAUTION ALL FUELS ARE FLAMMABLE ALWAYS fuel and defuel in a well-ventilated area outside of buildings. ALWAYS wear correct, suitable and fit for purpose Personal Protective Equipment (PPE), suggested items are but not limited to safety gloves, overalls and eye protection. CAUTION DO NOT overfill the fuel tank, you MUST allow space for fuel expansion.

  • Page 13: Starting Procedure

    4. STARTING PROCEDURE Lock the travel wheel by pulling the brake lever fully back. Turn the fuel tap ON. Turn the engine ON/OFF switch to ON. Make sure the throttle is in the slow speed position. If the engine is cold, move the choke to the closed/start position. Raise the cutter wheel 4 to 5 inches off the ground by pushing downwards on the handlebar and hold in that position.

  • Page 14: Operation

    6. OPERATION DO NOT use the machine on slopes greater than 10° DO NOT use the machine if you are tired, consumed alcohol or if you are taking any drugs or medication that can affect your vision, judgement or coordination. NEVER use the machine indoors or in spaces lacking proper ventilation.
  • Page 15 Ask your dealer about approved protective clothing and approved protective equipment recommended. REMOVING STUMPS 5.13 Remove all loose pieces of wood, stones, wire and other debris from the area before beginning stump removal. 5.14 Wind direction should be considered as this influences the direction in which dust and wood chips are directed.
  • Page 16 5.16 Cut or trim the stump as low to the ground as required using a power saw. 5.17 Never operate the stump grinder after dark. There will not be adequate lighting for the operator to use the machine safely. 5.18 Allow a cold engine time to warm up before use.
  • Page 17 REMOVING ROOTS 5.26 Make sure the throttle is set to high speed, the cutter wheel will accelerate to cutting speed. 5.27 Swing the cutting wheel to one side, then lower it into the nearest roots that are buried at the foot of the stump. 5.28 Swing the cutting wheel before each sweep until the roots are sufficiently removed.

  • Page 18: Maintenance

    CONTINUE WITH FINAL ROOT REMOVAL 5.36 Cut the remaining roots as described until satisfactorily removed. 7. MAINTENANCE WARNING ALWAYS stop the engine allow to cool and unplug the spark plug HT lead cap before doing any repairs or maintenance. Check and maintain the fuel level regularly and check engine oil level daily. At regular intervals, check the tightness of all nuts, bolts and screws.
  • Page 19 Every year Every 6 1st Month or Every 50 Each use months or 20 hours hours 300 hours 100 hours Oil Check Engine oil Replace Check Air Filter Clean Air filter Replace Carburetor Clean Float bowl Spark plug Clean / Adjust Carburettor Replace Float bowl...
  • Page 20 Check the tightness of all bolts and screws at regular intervals. If the grinder hits an obstacle violently, stop the grinder and take it to a service dealer for inspection. AIR FILTER 6.10 Never let the engine run without and air filter being installed. A dirty air filter element affects the engine performance, increases fuel consumption and makes it difficult to start.
  • Page 21 SPARK PLUG 6.18 The spark plug MUST be fully tightened otherwise the engine will overheat causing damage. ALWAYS complete the following steps after the engine has been turned off and allowed to cool down. To make sure the engine runs correctly a spark plug gap of 0.6 – 0.7mm must be 6.19 maintained and the spark plug free of carbon deposits.
  • Page 22 ENGINE OIL CAUTION Risk of Burn from hot engine oil. ALWAYS allow engine oil to cool before changing. 6.25 Drain the engine oil when the engine is warm, not hot. Warm oil drains more effectively. 6.26 Place a suitable container underneath the oil drain plug. 6.27 Remove the oil filler cap/dipstick.

  • Page 23: Storage & Winterization

    8. STORAGE & WINTERIZATION NOTE If the machine is to be stored for Winter or for periods of more than 30 days, then you MUST follow the correct storage procedure. Failure to do so may result in poor starting, performance issues and machine failure that will not be covered by the warranty.

  • Page 24: Troubleshooting

    10. TROUBLESHOOTING If troubleshooting does not resolve your issue, then contact the service dealer. Use only parts recommended or supplied by the manufacturer. ENGINE WILL NOT START Fuel System POSSIBLE CAUSES 1. Fuel valve is in CLOSED position. 2. Choke OPEN. 3.
  • Page 25 Fuel System POSSIBLE CAUSE 1. Machine stored incorrectly with regards to emptying the fuel system. POSSIBLE CORRECTIVE ACTION 1. Check and clean fuel tank, fuel lines and carburettor of sludge. Belt Coming Off POSSIBLE CAUSE 1. Pulleys not aligned. 2. Incorrect belt tension. POSSIBLE CORRECTIVE ACTION 1.

  • Page 26: Specification

    11. SPECIFICATION Recoil SAE30 or 15w40...

  • Page 27: Declaration Of Conformity

    Declaration for 2000/14/EC Noise Emissions in the Environment by Equipment for use Outdoors. Product Details Brand: Hyundai Model: HYSG150-2 Description: Petrol stump grinder Name and address of technical documentation holder and EU distributor: Genpower Ltd, Isaac Way, Pembroke Dock, Pembrokeshire, SA72 4RW, UK.

  • Page 28: Recycling & Product Disposal

    13. RECYCLING & PRODUCT DISPOSAL...

  • Page 29: Contact Details / Warranty

    14. CONTACT DETAILS Our friendly aftersales team will be more than happy to help you. Phone Call our team on 01646 687 880, open Monday-Friday 8.30am-5pm. Email aftersales@hyundaipowerproducts.co.uk Online Live Chat Go to www.hyundaipowerproducts.co.uk Live chat is open Monday-Friday from 8.30am-5pm. Post Genpower Ltd, Isaac Way, Pembroke Dock, Pembrokeshire.
  • Page 30 Importer: GENPOWER LTD Isaac Way, London Road Pembroke Dock, UNITED KINGDOM, SA72 4RW T: +44 (0) 1646 687 880 F: +44 (0) 1646 686 198 E: info@hyundaipowerproducts.co.uk www.hyundaipowerproducts.co.uk Imported/Distributed by GENPOWER LTD for The United Kingdom & Ireland Licensed by Hyundai Corporation, Korea...
