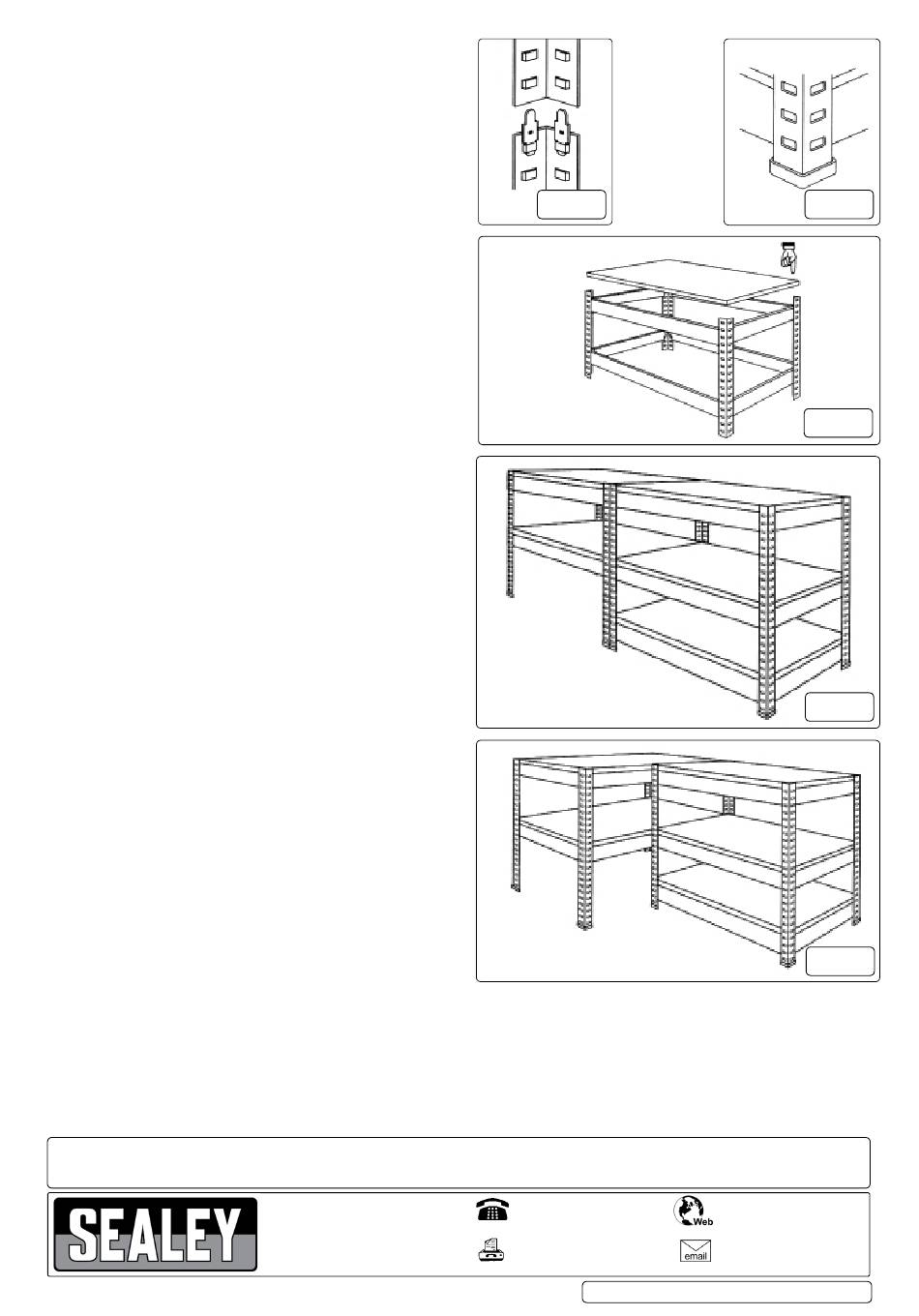

5.6. see fig.5. When the frame is complete attach the plastic floor
protectors to the bottoms of the angle sections. Get a second
person to steady the frame while this is done.
5.7. see fig.6. move the frame into position in the chosen area.
Place the 5 mdf shelves onto the shelf supports.
5.8. see fig.7. to assemble as a bench/low level shelving unit make
up two separate frames following steps 4.1 to 4.3 but with different
shelving positions. make up one frame with 3 shelves and one
frame with two shelves as shown below. ensure that the middle
and top shelves on both frames are at the same height.
fix the frames together with the four nuts and bolts supplied.
Place the 5 mdf shelves into position in the frames.
5.9. see fig.8. to assemble as a corner unit make up two separate
frames following steps 5.1 to 5.3 but with different shelving
positions. make up one frame with 3 shelves and one frame with
two shelves as shown below. ensure that the middle and top shelves
on both frames are at the same height. fix the frames together with
the four nuts and bolts supplied. Place the 5 mdf shelves into
position in the frames.
