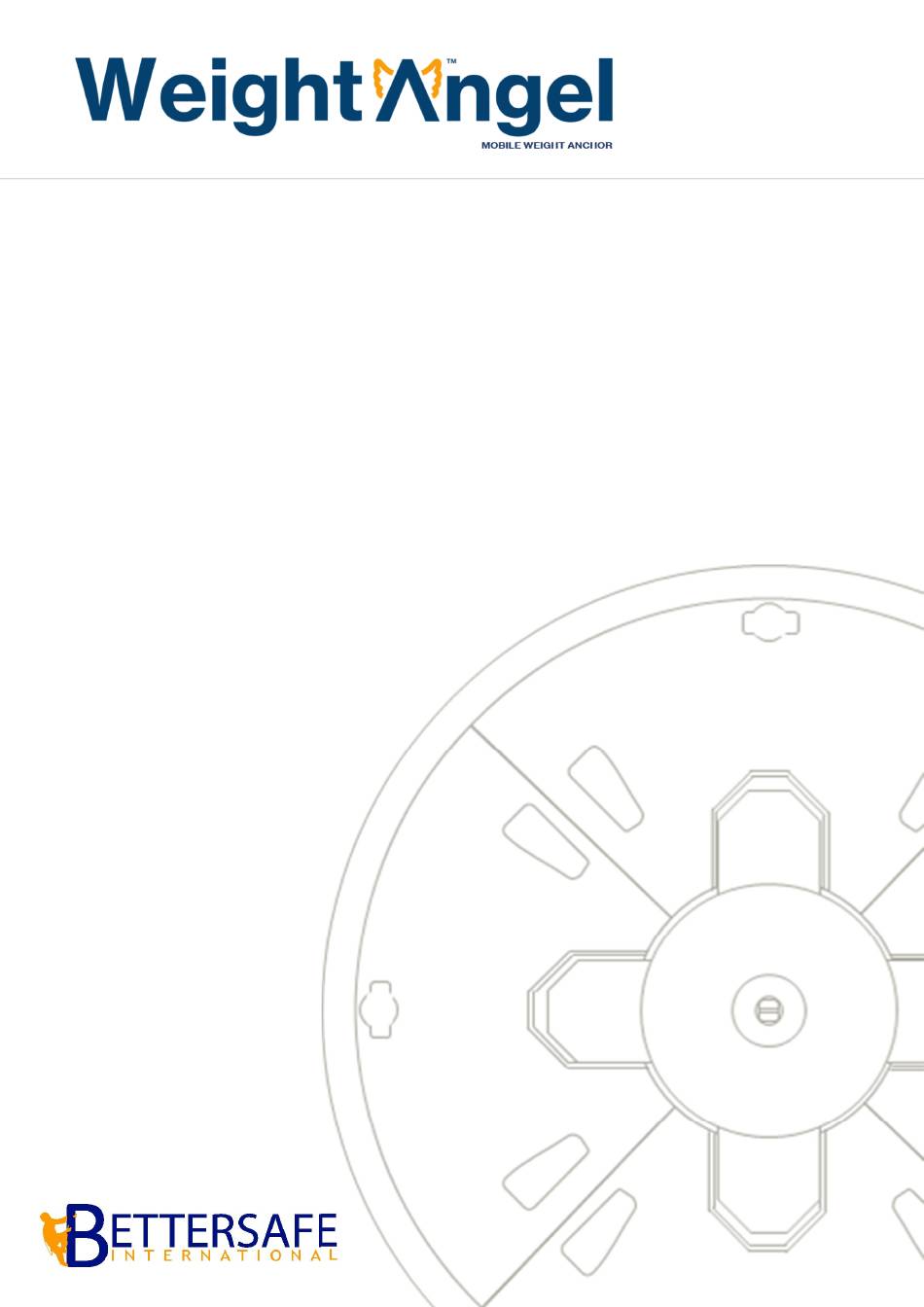

- Page 1 I n s t a l l a t i o n & Te c h n i c a l M a n u a l S e p t e m b e r 2 0 1 9 R e v i s i o n 3 .
- Page 2 Continued improvement and advancement of product design may have caused changes to the current Weight Angel Safety System, which are not included in this Manual. Whenever a question arises regarding the Weight Angel, or this Manual, please consult the Bettersafe International website at www.bettersafeinternational.com for the latest available information.
-
Page 3: General Information
Do not tamper with or make any alterations to the Weight Angel Safety System. • The Weight Angel Safety System shall not be used outside its limitations as described in this Manual, or for any purpose other than that •... - Page 4 The Weight Angel Safety System is designed with the following limitations: • Fall Arrest for one user. • Maximum roof pitch of five (5) degrees • The roof area must be capable of retaining the at least twice weight of the Weight Angel in the area required. • Roofing Materials •...
- Page 5 Introduction User Notes 1. The Weight Angel Safety System is suitable for use with the following products Full Body Harness conforming to EN361 Self Retracting Lifelines conforming to EN360 and sharp edge testing iii. Adjustable Lifelines conforming to EN353 iv. Horizontal single span lifelines conforming to EN795 Class C Rescue Equipment and Descent controllers conforming to relevant EN standards 2.
- Page 6 In this respect, this installation and servicing manual will need occasional updating. Bettersafe International shall issue all registered holders the relevant amendments. If in any doubt regarding the current Issue Status of a manual, please contact Bettersafe International. I n s t a l l a t i o n &...
-
Page 7: Installation
Pre-requisite Installation requirements Installation cannot take place until the following have been fully considered and completed. Site Plan A site plan must be drawn up to indicate the Weight Angel System configuration, to include: - Locations • Extremities •... - Page 8 Installation Process Lay the mat in the location where the Weight Angel is required to be installed. Insert the rod assembly into the base of the weight and lay on the mat. Repeat this for the 4 lower weights. I n s t a l l a t i o n &...
- Page 9 Installation Process Use the Post mounting frame to locate and align the lower weights, then remove the frame. Stack the remaining 8 weights onto the bolt I n s t a l l a t i o n & T e c h n i c a l M a n u a l S e p t e m b e r 2 0 1 9...
- Page 10 Installation Process Place the post mounting frame onto the bolts, and secure with the supplied nuts and washers. I n s t a l l a t i o n & T e c h n i c a l M a n u a l S e p t e m b e r 2 0 1 9...
- Page 11 Technical Dimensions 1200 1200 I n s t a l l a t i o n & T e c h n i c a l M a n u a l S e p t e m b e r 2 0 1 9 R e v 3 .
-
Page 12: Key Specifications
Technical Weights & Materials KEY SPECIFICATIONS Weight 300 kg Individual Weights 24 kg Qty Weights 12 units Weight of posts /supports 12 kg Width 1200 mm Height 465 mm Made from Recycled Materials MATERIALS Post Polyurethane & SS316 Eye Ring SS 316 Cover Aluminium... - Page 13 NETHERLANDS Azewijnseweg 12 SF Riverside, Mountbatten Way 4214 KC Congleton Vuren Cheshire, CW12 1DY t | + 31(0) 183 820 280 t | + 44 (0) 1260 217 437 info@bettersafeinternational.com www. bettersafeinternational.com I n s t a l l a t i o n &...
