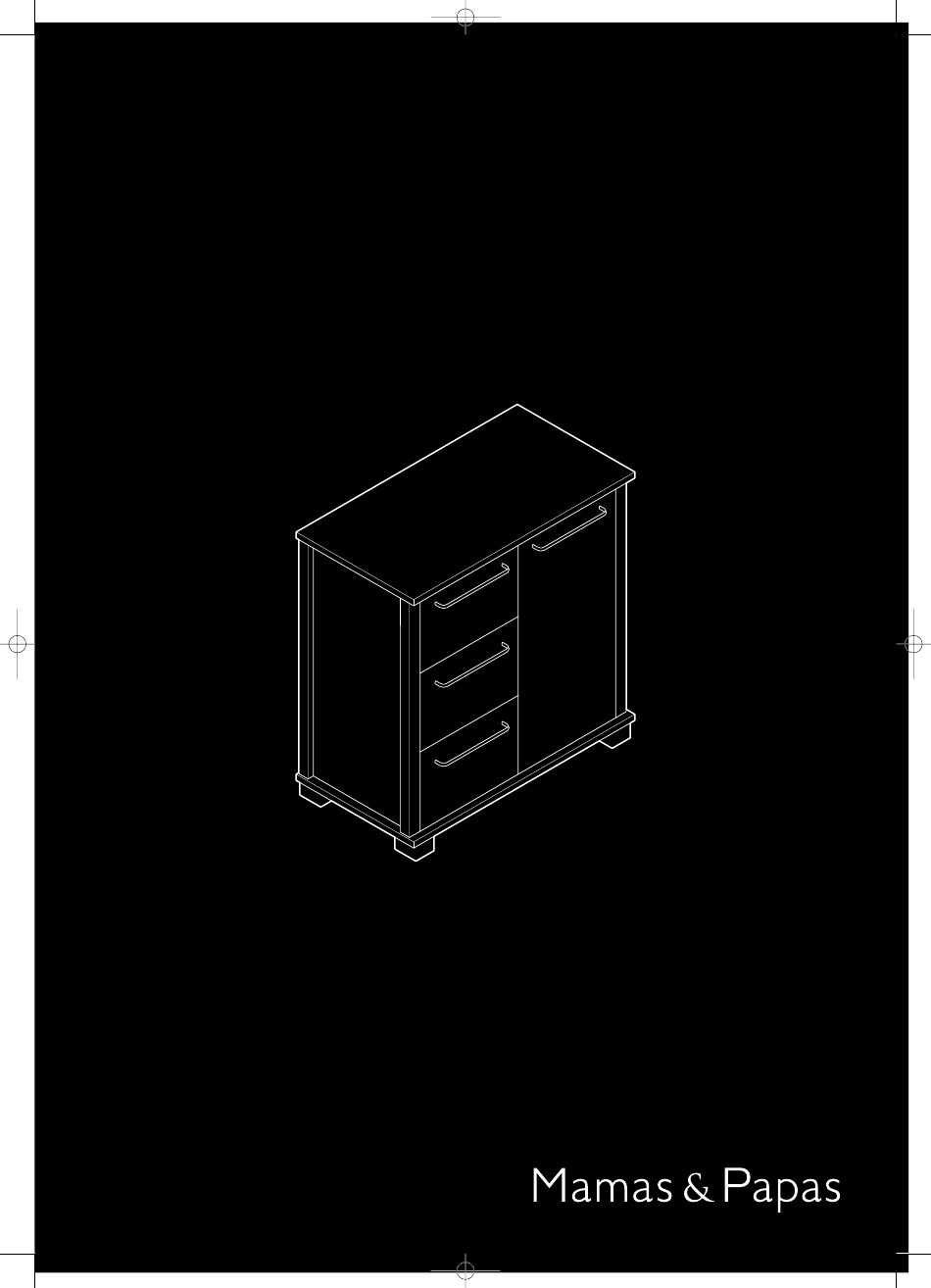

- Page 1 Horizons Dresser V1 30/6/05 08:36 am Page 1 instructions horizons dresser FR019DC: V1/06/05 IMPORTANT: Please read instructions carefully and keep for future reference...
- Page 2 HORIZONS DRESSER THESE INSTRUCTIONS ARE IMPORTANT. PLEASE READ THEM CAREFULLY AND RETAIN FOR FUTURE REFERENCE. Before assembling your Horizons dresser... Unpack all wooden components / fittings and identify them against the fittings and components lists. Do not discard any packaging until you are certain you have all the correct panels and fittings.
- Page 3 Horizons Dresser V1 30/6/05 08:36 am Page 3 FITTINGS x 34 Glue Dowels x 12 x 12 Drawer Cams Drawer screws x 24 Cam studs Handle screws x 26 Drawer runners (left and right hand versions) Assembly screws Part no. 0000---00000...
- Page 4 Horizons Dresser V1 30/6/05 08:36 am Page 4 TOOLS Cross-head Screwdrivers Hammer Flat-head Screwdriver To fit: D, E, F, G, M, O, & S. To be used for: B, J & Q. To fit: C, I, & K. When fitting the dowels...
- Page 5 Horizons Dresser V1 30/6/05 08:36 am Page 5 Align the holes in the backs of the drawer side (1/2) align with the holes in the ends of the drawer back (3). Check that the grooves in the panels are aligned, see diagram.
- Page 6 Horizons Dresser V1 30/6/05 08:36 am Page 6 Screw four cam studs (E) into the small holes in the back of the drawer front (5) using a cross-head screwdriver, see diagram. Screw the handle (6) to the drawer front using...
- Page 7 Horizons Dresser V1 30/6/05 08:36 am Page 7 Attach the drawer runners (H) to the sides of the drawers using six assembly screws (G). Ensure the runners are flush with the drawer front before fixing them in position and that the...
- Page 8 Horizons Dresser V1 30/6/05 08:36 am Page 8 Turn the base over so that it rests on its feet. Screw six cam studs (E) into the top of the base using a cross-head screwdriver. Select the left side panel (9).
- Page 9 Horizons Dresser V1 30/6/05 08:36 am Page 9 Attach the top two carcass runners (L) to the left side panel (9) using six carcass runner screws (M) and a cross- head screwdriver. Check with the diagram for the correct orientation of the...
- Page 10 Horizons Dresser V1 30/6/05 08:36 am Page 10 Attach the bottom carcass runner (L) to the assembled left side panel and base three carcass runner screws (M) and a cross-head screwdriver. Select the middle panel (11). Insert six dowels (B) into the top and bottom edges of middle panel.
- Page 11 Horizons Dresser V1 30/6/05 08:36 am Page 11 Attach the top two carcass runners (L) to the middle panel (11) using six carcass runner screws (M) and a cross- head screwdriver. Check with the diagram for the correct orientation of the runners and which screw holes to use.
- Page 12 Horizons Dresser V1 30/6/05 08:36 am Page 12 Attach the middle panel (11) to the base (8). Slot the dowels and cams into the appropriate holes in the middle panel and base. Tighten the cams by turning them clockwise using a flat-head screwdriver.
- Page 13 Horizons Dresser V1 30/6/05 08:36 am Page 13 Select the right side panel (10). Insert six dowels (B) into the top and bottom edges of right side panel. You may need to tap them in with a light hammer. Insert four carcass cams (K) into the inside face of the right side panel.
- Page 14 Horizons Dresser V1 30/6/05 08:36 am Page 14 Attach the right side panel (10) to the base (8). Slot the dowels and cams into the appropriate holes in the side panel and base. Tighten the cams by turning them clockwise...
- Page 15 Horizons Dresser V1 30/6/05 08:36 am Page 15 Turn the top (12) over and fit it onto the two side and the middle panels. Slot the dowels and cams into the appropriate holes in the side panel and base. Tighten the cams by...
- Page 16 Horizons Dresser V1 30/6/05 08:36 am Page 16 Slot the two back panels (13) into the H-section (14) and place them into the recesses in the side panels, top and base. Fasten the back panels to the dresser using the nails (Q) and a light hammer.
- Page 17 Horizons Dresser V1 30/6/05 08:36 am Page 17 Secure one end of the wall strap to the wall. See page 20 for more information. Thread the other end of the wall strap (R) through the gap between the top of the dresser and the back panels.
- Page 18 Horizons Dresser V1 30/6/05 08:36 am Page 18 Slot the shelf (15) onto the shelf studs, push the shelf against the back panel of the dresser. Slot the hanger rail (17) into the hanger rail cups. Attach the hinge arms on...
- Page 19 Horizons Dresser V1 30/6/05 08:36 am Page 19 Adjusting the height of the door: Loosen screws ‘C’ on both of the hinge plates. Lift or lower the door into the desired position and re-tighten all of the screws. Slot the runners on the...
- Page 20 Daytime Tel. No..............Email ........................Baby’s due date/date of birth .................................... Product purchased Horizons Dresser Purchase date ............Price .............. If you would like to receive further information regarding new products, promotions and special offers from Mamas & Papas please tick the boxes indicating your preferred method(s) of contact.
