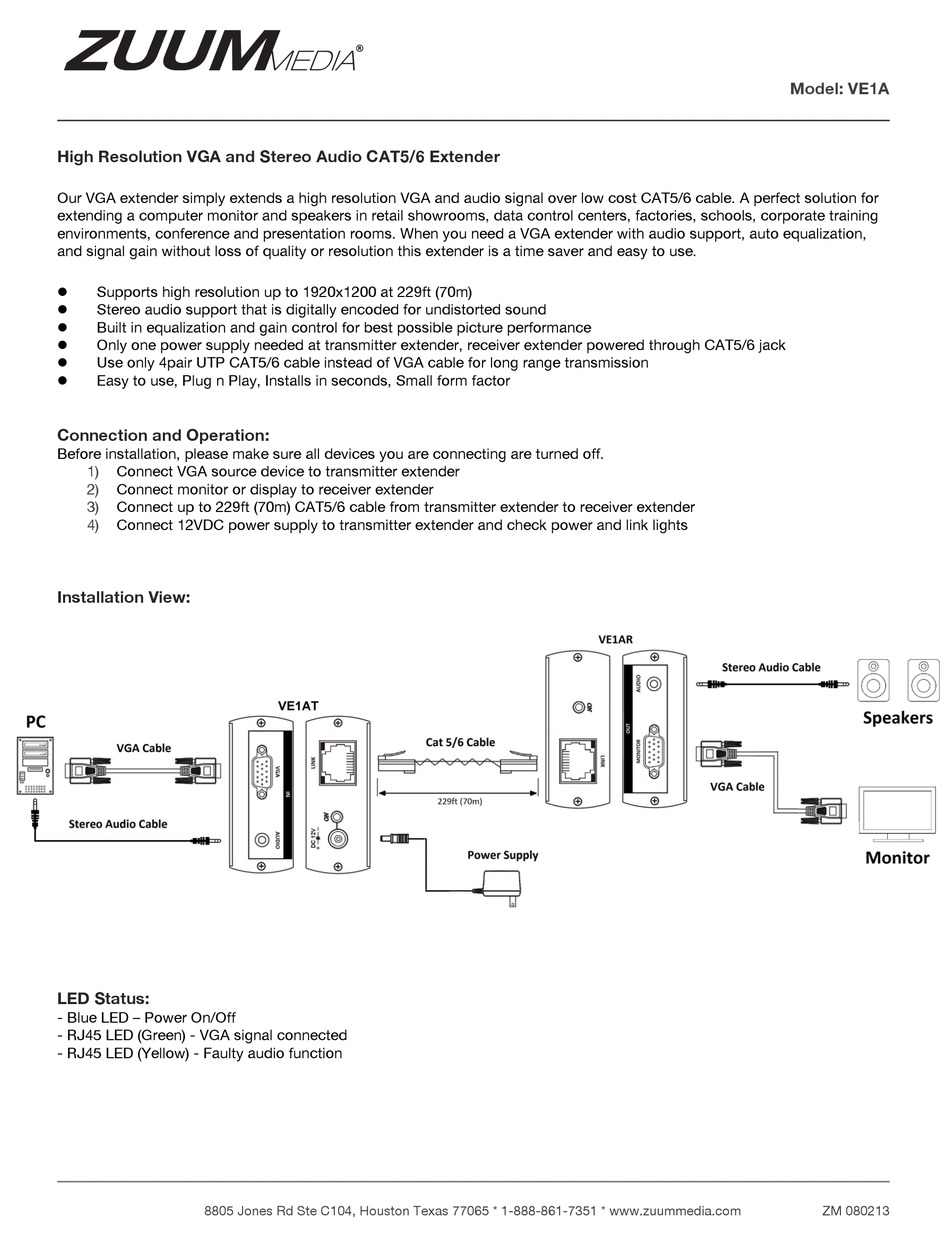

ZUUM Media VE1A Series Manual

____________________________________________________________________________________
High Resolution VGA and Stereo Audio CAT5/6 Extender
Our VGA extender simply extends a high resolution VGA and audio signal over low cost CAT5/6 cable. A perfect solution for
extending a computer monitor and speakers in retail showrooms, data control centers, factories, schools, corporate training
environments, conference and presentation rooms. When you need a VGA extender with audio support, auto equalization,
and signal gain without loss of quality or resolution this extender is a time saver and easy to use.
 Supports high resolution up to 1920x1200 at 229ft (70m)
Stereo audio support that is digitally encoded for undistorted sound

Built in equalization and gain control for best possible picture performance

Only one power supply needed at transmitter extender, receiver extender powered through CAT5/6 jack

Use only 4pair UTP CAT5/6 cable instead of VGA cable for long range transmission

Easy to use, Plug n Play, Installs in seconds, Small form factor

Connection and Operation:
Before installation, please make sure all devices you are connecting are turned off.
1) Connect VGA source device to transmitter extender
2) Connect monitor or display to receiver extender
3) Connect up to 229ft (70m) CAT5/6 cable from transmitter extender to receiver extender
4) Connect 12VDC power supply to transmitter extender and check power and link lights
Installation View:
LED Status:
- Blue LED – Power On/Off
- RJ45 LED (Green) - VGA signal connected
- RJ45 LED (Yellow) - Faulty audio function
____________________________________________________________________________________
8805 Jones Rd Ste C104, Houston Texas 77065 * 1-888-861-7351 * www.zuummedia.com
Model: VE1A
ZM 080213
