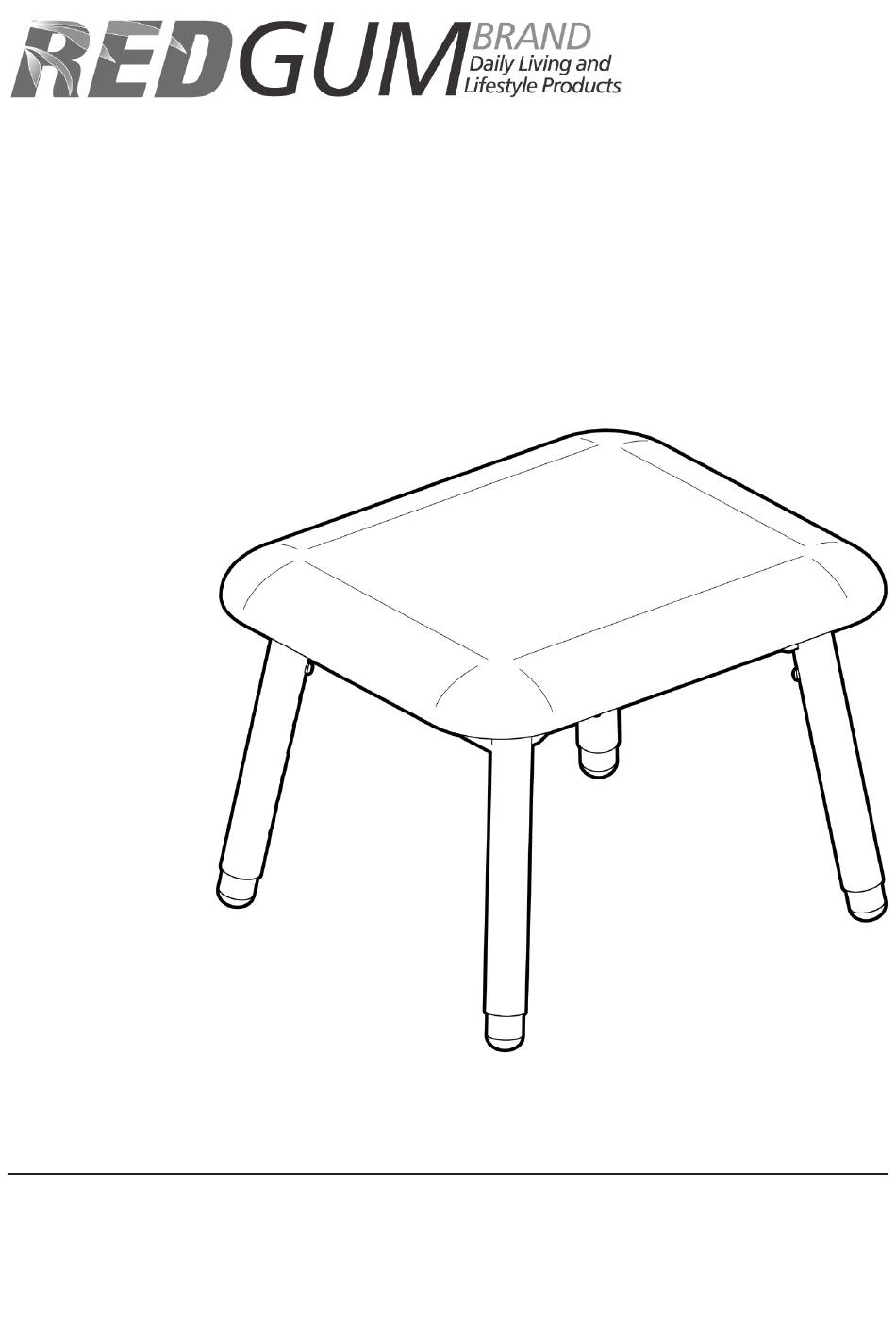

- Page 1 KATIE LEG REST / STOOL RG63LR JANUARY 2020 USER MANUAL Please read and keep these instructions redgumbrand.com.au...
- Page 2 KATIE LEG REST / STOOL user manual. Any information contained in this user manual shall not be photocopied, reproduced or translated into any other languages without the prior written consent of REDGUM Brand. REDGUM Brand strives to provide the highest quality products possible.
- Page 3 CONTENTS INTRODUCTION - INTENDED USE PRODUCT OVERVIEW - FEATURES / SPECIFICATIONS ASSEMBLY - UNPACK and INSPECT SUPPLIED PARTS ASSEMBLY - LEG ATTACHMENT SET UP - PLATFORM HEIGHT / ANGLE ADJUSTMENT USAGE GUIDELINES - DO’s + DON’Ts PRODUCT CARE - INSPECTIONS / CLEANING WARRANTY redgumbrand.com.au...
-
Page 4: Intended Use
INTRODUCTION Thank you for purchasing this quality REDGUM Brand product. If you have any issues or questions about the KATIE Leg Rest / Stool please contact your supplier or REDGUM Brand direct: T: +61 8 9248 4180 F: +61 8 9248 9452 E: sales@for-de.com.au... -
Page 5: Product Overview
Platform Width: 450mm Platform Depth: 380mm Height: 325 - 475mm (25mm adjustment increments) Product Weight: 5kg Maximum Weight Loading: 120kg - evenly distributed Please contact REDGUM Brand if you would like any further information on your KATIE Leg Rest / Stool. redgumbrand.com.au... - Page 6 ASSEMBLY - UNPACK and INSPECT SUPPLIED PARTS Ensure you have been supplied with the following parts: PARTS: 1 x PLATFORM 2 x LEG ASSEMBLY (includes adjustable legs) FASTENERS TOOLS SUPPLIED (Not shown to scale) - ALLEN KEY 6 x WASHER 6 x SCREW IMPORTANT NOTE Check the product for any visible damage.
-
Page 7: Leg Attachment
ASSEMBLY - LEG ATTACHMENT The KATIE Leg Rest / Stool requires some assembly prior to use. Please follow these steps: 1. Position platform with underside facing up. 2. Line up holes in leg with holes in platform. 3. Using the allen key provided, fix all 6 washers and screws in place. - Page 8 SET UP - PLATFORM HEIGHT / ANGLE ADJUSTMENT The KATIE Leg Rest / Stool can be adjusted in height and angle to suit the users requirements. To adjust - please follow these steps: 1. Flip Leg Rest / Stool over. 2.
-
Page 9: Usage Guidelines
USAGE GUIDELINES - DO’s + DON’TS Please follow these guidelines to get the optimal benefit from your KATIE Leg Rest / Stool. Failure to follow these guidelines may result in damage to the KATIE Leg Rest / Stool and put the user at risk. The KATIE Leg Rest / Stool is designed to take 120kg Maximum Load (evenly distributed). -
Page 10: Product Care
PRODUCT CARE - INSPECTIONS / CLEANING INSPECTIONS We suggest that you visually check your KATIE Leg Rest / Stool periodically for signs of damage or wear prior to use. Overall check that no components are loose or worn. Withdraw the KATIE Leg Rest / Stool immediately if you suspect damage or any other fault. -
Page 11: Warranty
If you have any issues or questions about your KATIE Leg Rest / Stool please contact your supplier or REDGUM Brand direct on: T: +61 8 9248 4180 F: +61 8 9248 9452 E: sales@for-de.com.au... - Page 12 DISTRIBUTOR: Proudly Australian Owned and Operated redgumbrand.com.au...
