Forms+Surfaces COLUMN TABLE Installation Instructions

COLUMN TABLE

MATERIALS INCLUDED

a
b
c
FOR ALL SURFACE MOUNTED COLUMN TABLES
a

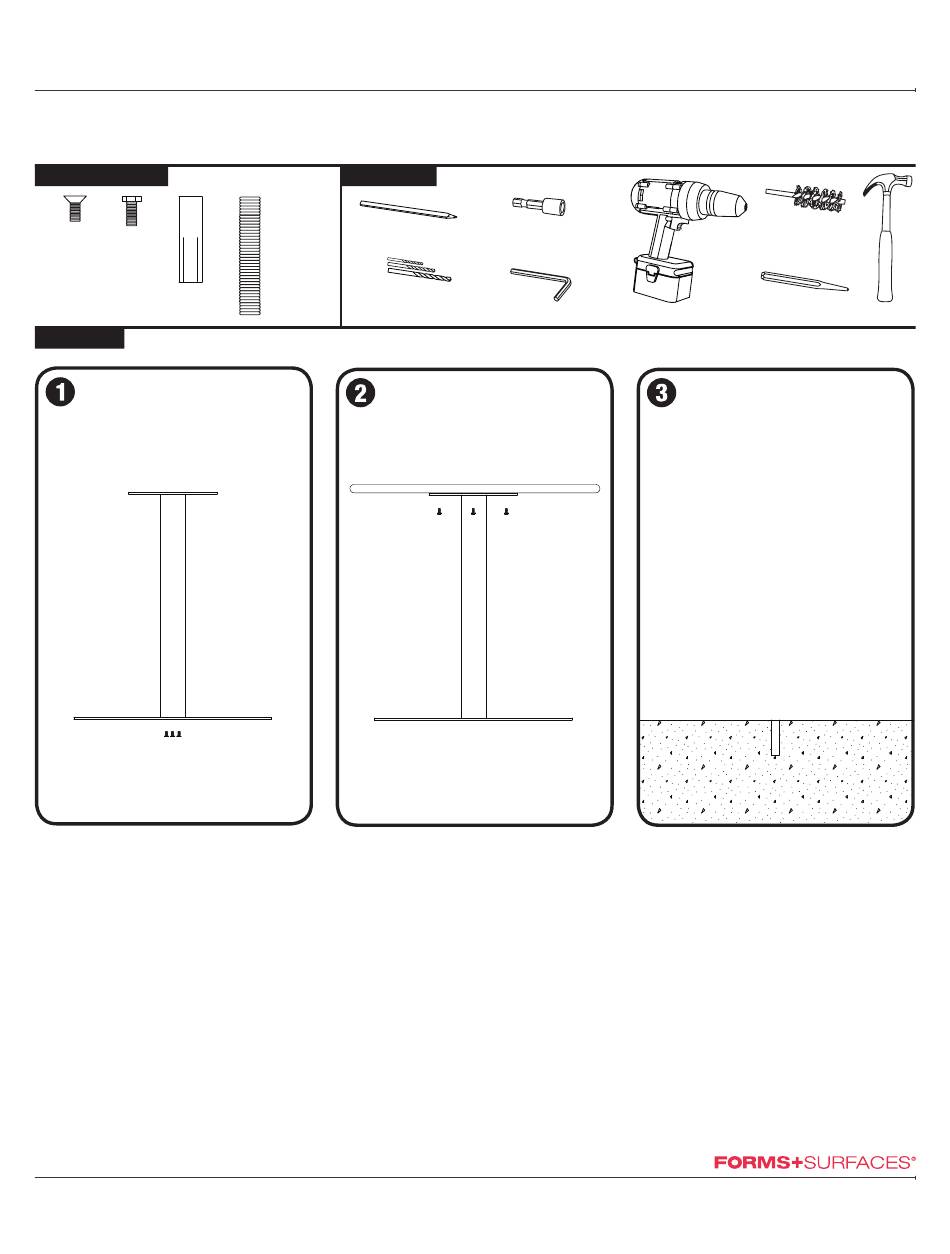

Attach base to column

• Use 3/16" hex key to attach base to
column using 5/16"-24 x 3/4" flat
head cap screws (a).
T 800.451.0410 | www.forms-surfaces.com
© 2012 Forms+Surfaces® | All dimensions are nominal. Specifications and pricing subject to change without notice. For the most current version of this document, please refer to our website at www.forms-surfaces.com.

TOOLS NEEDED

d
pencil
3/16", 3/8" & 5/8" drill
bits for concrete
Attach Table top to column
• Use drill with 1/2" nut driver (or socket
wrench with 1/2" socket) to attach table
top to column with 5/16"-18 x 3/4"
hex head bolts (b).
SURFACE MOUNT INSTALLATION INSTRUCTIONS
1/2" nut driver
3/16" hex key
hammer drill
b

Mark and drill anchor hole

• Locate desired position for center of table
on ground and mark with a pencil. Use
hammer drill to drill 2-1/4" deep x 5/8"
diameter anchor hole at marked location
using a 5/8" drill bit suitable for concrete
drilling.
NOTE: Forms+Surfaces recommends
starting holes with 3/16" diameter drill
bit followed by 3/8" and finally 5/8" for
maximum accuracy.
steel
wire brush
1/4" punch
hammer
page 1 of 2 | Rev. 12-18-12
