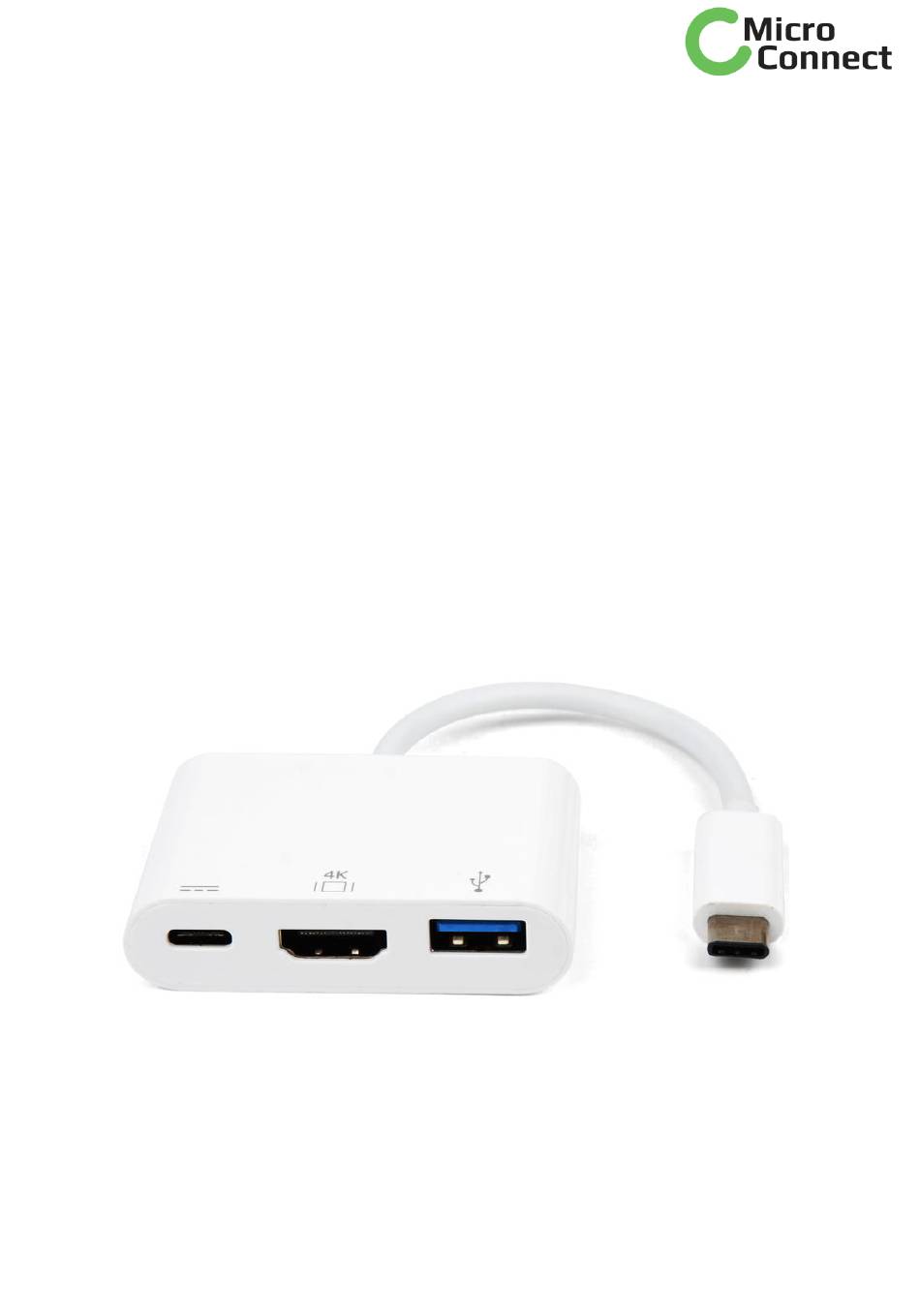

- Page 1 USB 3.1 Type-C to USB3.0+HDMI （4Kx2K@30HZ)+Type-C Charging Adapter User Manual...
-
Page 2: Table Of Contents
USB 3.1 Type-C to USB3.0+HDMI（4KX2K@30HZ) +Type-C Charging Adapter Contents 1.0 INTRODUCTION ..........1 2.0 FEATURES ............. 1 3.0 SPECIFICATIONS ........... 2 4.0 PACKAGE CONTENTS ........2 5.0 OPERATION ........... 3 6.0 CONNECTION DIAGRAM ........3... -
Page 3: Introduction
USB 3.1 Type-C to USB3.0+HDMI（4KX2K@30HZ) +Type-C Charging Adapter USB 3.1 Type-C to USB3.0+ HDMI(4KX2K@30HZ)+Type-C Charging Adapter DEAR CUSTOMER Thank you for purchasing this product. For optimum performance and safety, please read these instructions carefully before connecting, operating or using this product. Please keep this manual for future reference. -
Page 4: Specifications
USB 3.1 Type-C to USB3.0+HDMI（4KX2K@30HZ) +Type-C Charging Adapter ⚫ Support to charge for Macbook or Google new Chromebook Pixel and other USB-C supported devices and supply power for the adapter at the same time ⚫ USB-C female port supplies power up to 60W(20V/3A) ⚫... -
Page 5: Operation
USB 3.1 Type-C to USB3.0+HDMI（4KX2K@30HZ) +Type-C Charging Adapter 5.0 OPERATION 1) Connect the USB-C male port of this product to Macbook or Chromebook 2） Connect HDMI output of this product to HDTV with one HDMI cable 3) Connect the USB 3.0 output of this product to a USB 3.0/2.0 device with a USB cable 4) Connect the USB-C charging port, it can charge for the host computer and support this pruduct to work simultaneously...
