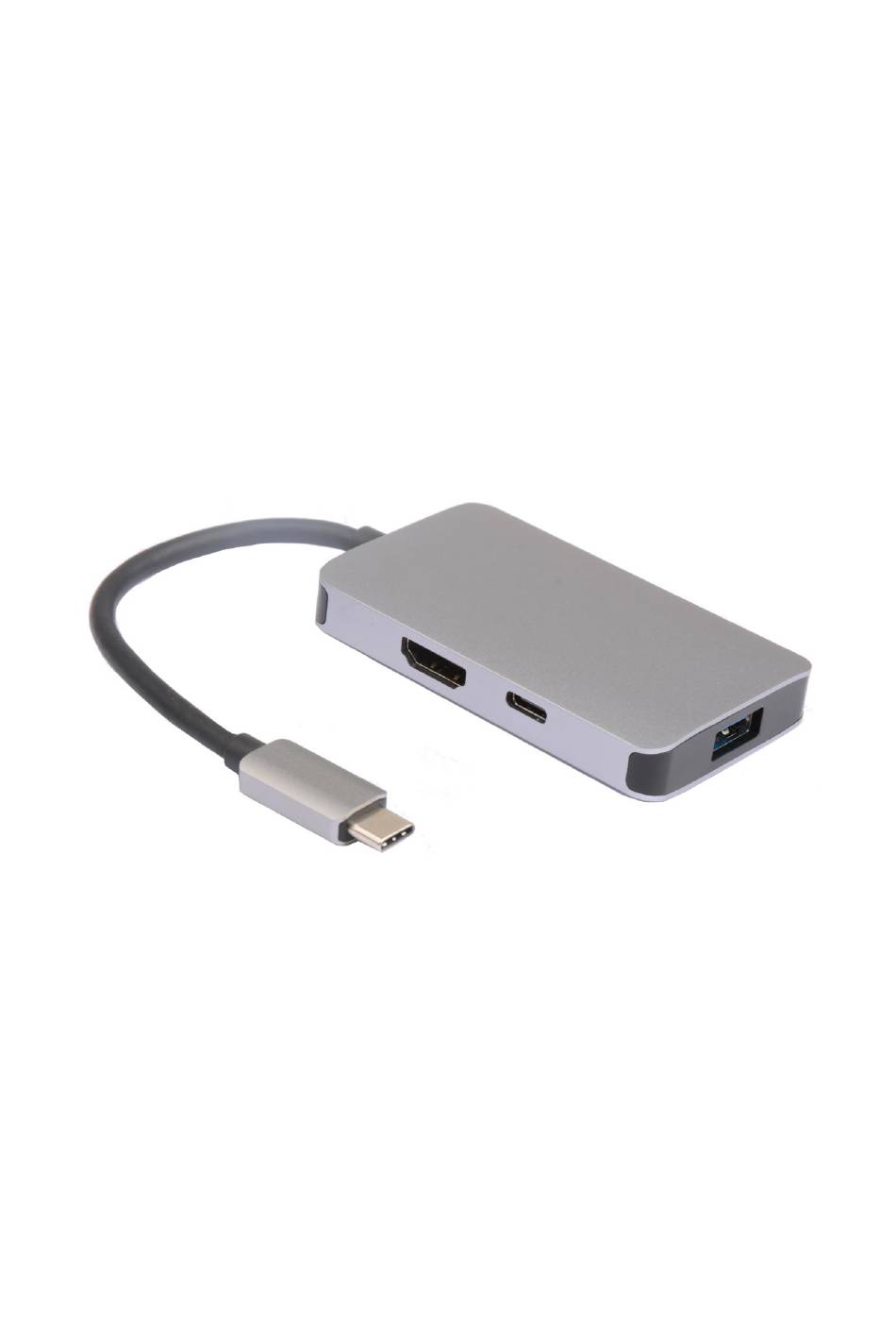

- Page 1 USB 3.1 Type-C to USB3.0+HDMI （4Kx2K@30Hz)+Type-C data or PD Charging Adapter User Manual: USB3.1CCOM2...
- Page 2 USB 3.1 Type-C to USB3.0+HDMI（4KX2K@30HZ) +Type-C data and charging Adapter Contents 1.0 INTRODUCTION ............. 1 2.0 ADVANTAGES ..............1 3.0 FEATURES ................. 2 4.0 SPECIFICATIONS ............3 5.0 PACKAGE CONTENTS ........... 3 6.0 OPERATION ..............3 7.0 CONNECTION DIAGRAM ..........4...
- Page 3 USB 3.1 Type-C to USB3.0+HDMI（4KX2K@30HZ) +Type-C data and charging Adapter USB 3.1 Type-C to USB3.0+ HDMI (4KX2K@30HZ)+Type-C data and charging Adapter DEAR CUSTOMER Thank you for purchasing this product. For optimum performance and safety, please read these instructions carefully before connecting, operating or using this product.
- Page 4 USB 3.1 Type-C to USB3.0+HDMI（4KX2K@30HZ) +Type-C data and charging Adapter Note: 1) When the current of the connected USB device is higher than the above listed current, the USB device will get disconnected while plugging the PD Adapter and reconnect in a few seconds 2) When working on PD 2.0 supported host PC, the connected USB-A device will get disconnected while plugging out the Type-C PD Adapter and then reconnect in a few seconds...
-
Page 5: Specifications
USB 3.1 Type-C to USB3.0+HDMI（4KX2K@30HZ) +Type-C data and charging Adapter 4.0 SPECIFICATIONS Input/Output Connector Input USB-C Male x1 Output HDMI Female x1 USB-C Female x1 (for data or Charging) USB-A Femalex1 Physical Weight 52.5g Size 75*45*9(mm) Resolutions Resolutions Up to 4KX2K@30HZ Warranty Limited Warranty 25 year... -
Page 6: Connection Diagram
USB 3.1 Type-C to USB3.0+HDMI（4KX2K@30HZ) +Type-C data and charging Adapter Connect the USB-C charging port to USB-C Power Adapter (including PD Adpater), it can charge for the host computer and support this adapter to work simultaneously USB-C female port as data port: Connect the USB-C output of this product to a USB-C device 7.0 CONNECTION DIAGRAM...
