Your CipherLab CPT-720 Cradle was designed to enable the discharging and charging of battery packs
used in conjunction with the CPT-720 portable terminal; to communicate with a Host computer via RS-232;
and to communicate with other CPT-720 Cradles via RS-485.
Packing List
This package includes the following:
1. Cradle
2. AC Adaptor
3. RS-232 cable
4. Pack of wall mount screws
Specifications
Power supply: 12V DC
Dimensions: 112mm (L) x 125mm (W) x 132mm (H)
Storage temperature: -10 ~ 60 C
Operating temperature: 0 ~ 50 C
Charging current: 250 mA.
Installation

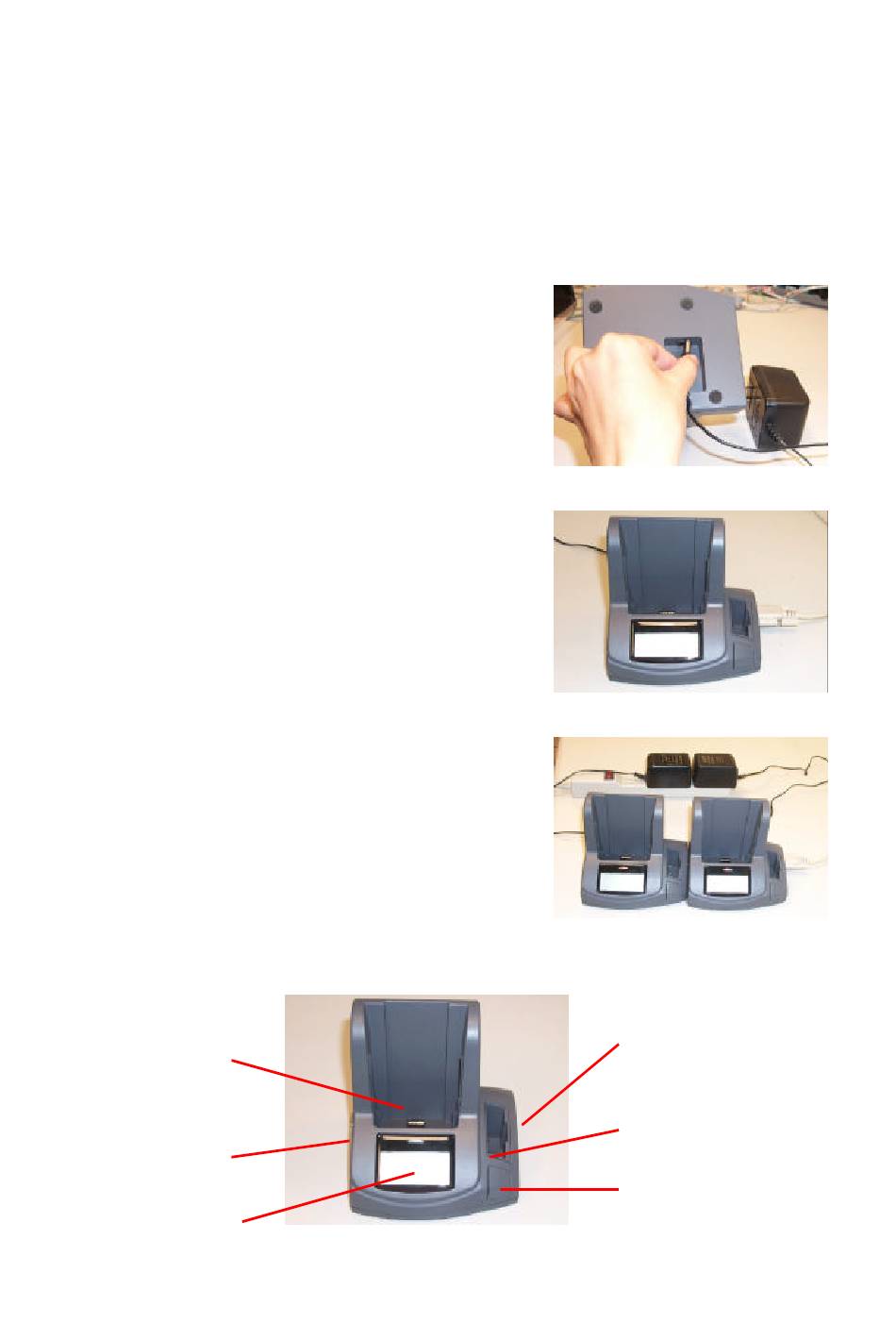

1. Connecting the power
Insert the AC adaptor into the outlet and connect its DC jack
to the Cradle. (Fig. 1)
2. Stand alone, connect the Cradle to Host computer with the
supplied RS-232 cable. (Fig. 2)
3. Multi-drop connection, connect the Cradle to Host computer
with the supplied RS-232 cable. Then connect every unit
directly to the previous unit. Up to 32 units can be connected
together. Note that each cradle should use its own power
supply. (Fig3)
Operation
The names of parts and their functions
A. Charges the battery within the Terminal
(Fig. 4)
A
E
F
<Fig.4>
<Fig.1>
<Fig.2>
<Fig.3>
D
B
C
