TP-Link TD-W8960N User Manual page 77

WPA2 Preauthentication: Select Enable from the drop-down list, Stations will authenticate
with the AP during the scanning process, and once association is required, the station has
been already authenticated.
Network Re-auth Interval: Enter a value in seconds as the frequency interval to enable
periodic Network Re-authentication function, while leave it blank or enter "0" to disable it.
5. WPA2-PSK
To configure WPA2-PSK settings, select the WPA2-PSK option from the drop-down list. The menu
will change to offer the appropriate settings. WPA2-PSK requires a shared key and does not use a
separate server for authentication. PSK keys can be ASCII or Hex type.
6. Mixed WPA2/WPA
To configure Mixed WPA2/WPA settings, select the Mixed WPA2/WPA option from the drop-down
list. The menu will change to offer the appropriate settings. The steps to these settings are similar
to those for WPA-PSK.
TD-W8960N Wireless N ADSL2+ Modem Router User Guide

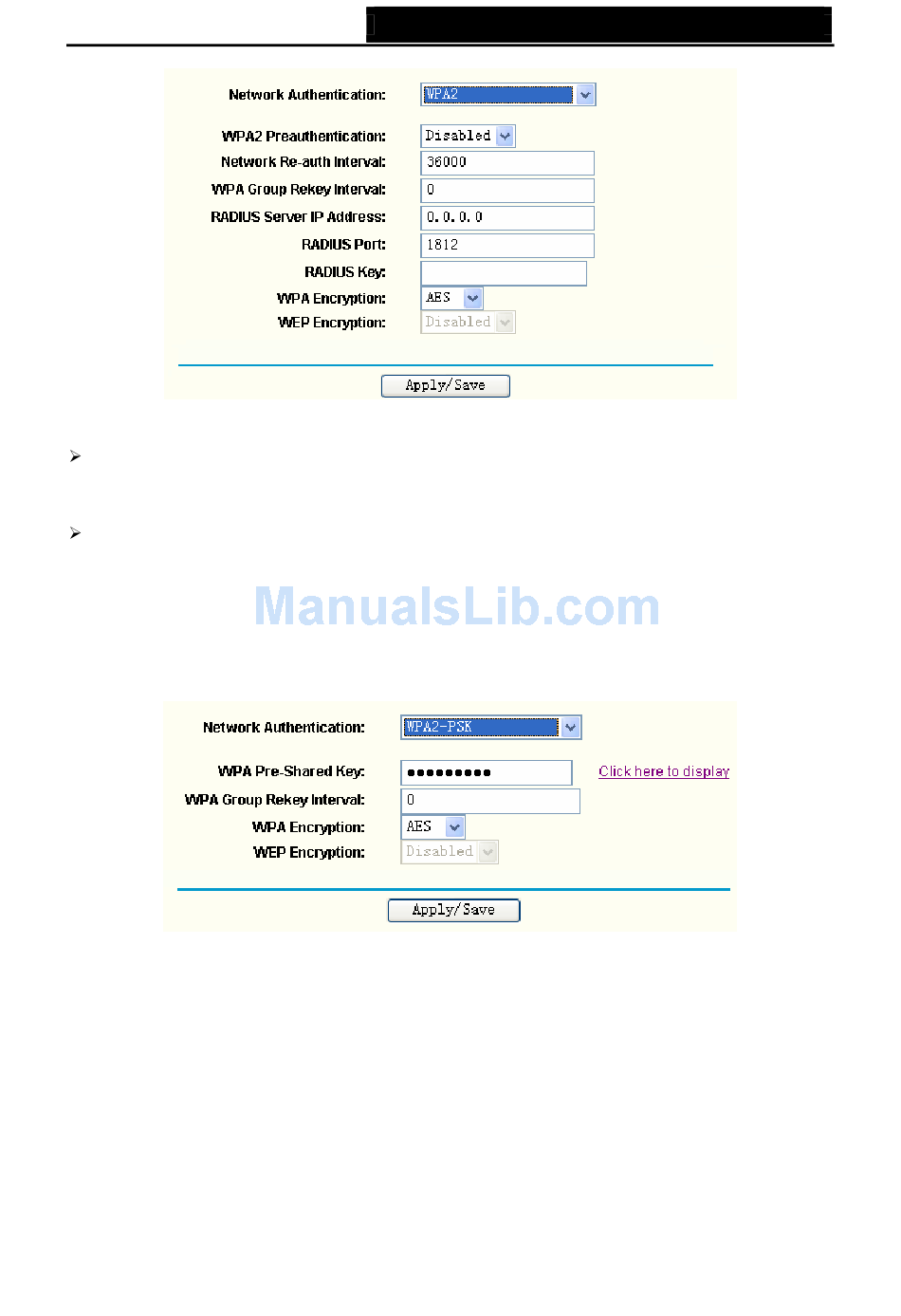

Figure 4-85
Figure 4-86
70
