TP-Link TD-W8960N User Manual page 76

Configure WPA-PSK settings
1. Select the WPA-PSK option. The menu will change to offer the appropriate settings as
the picture show above.
2. WPA-PSK requires a shared key. Type the key in the space provided. PSK keys can be
ASCII or Hex type.
3. Change the Group Key Interval as desired or use the default setting.
4. Click Save/Apply to save the new configuration.
Note:
If you click the option "Click here to display", the Figure 4-84 will pop-up, and it shows the
password you have set.
4. WPA2
To configure WPA2 settings, select the WPA2 option from the drop-down list. The menu will
change to offer the appropriate settings. The steps of these settings are similar to WPA settings.
TD-W8960N Wireless N ADSL2+ Modem Router User Guide

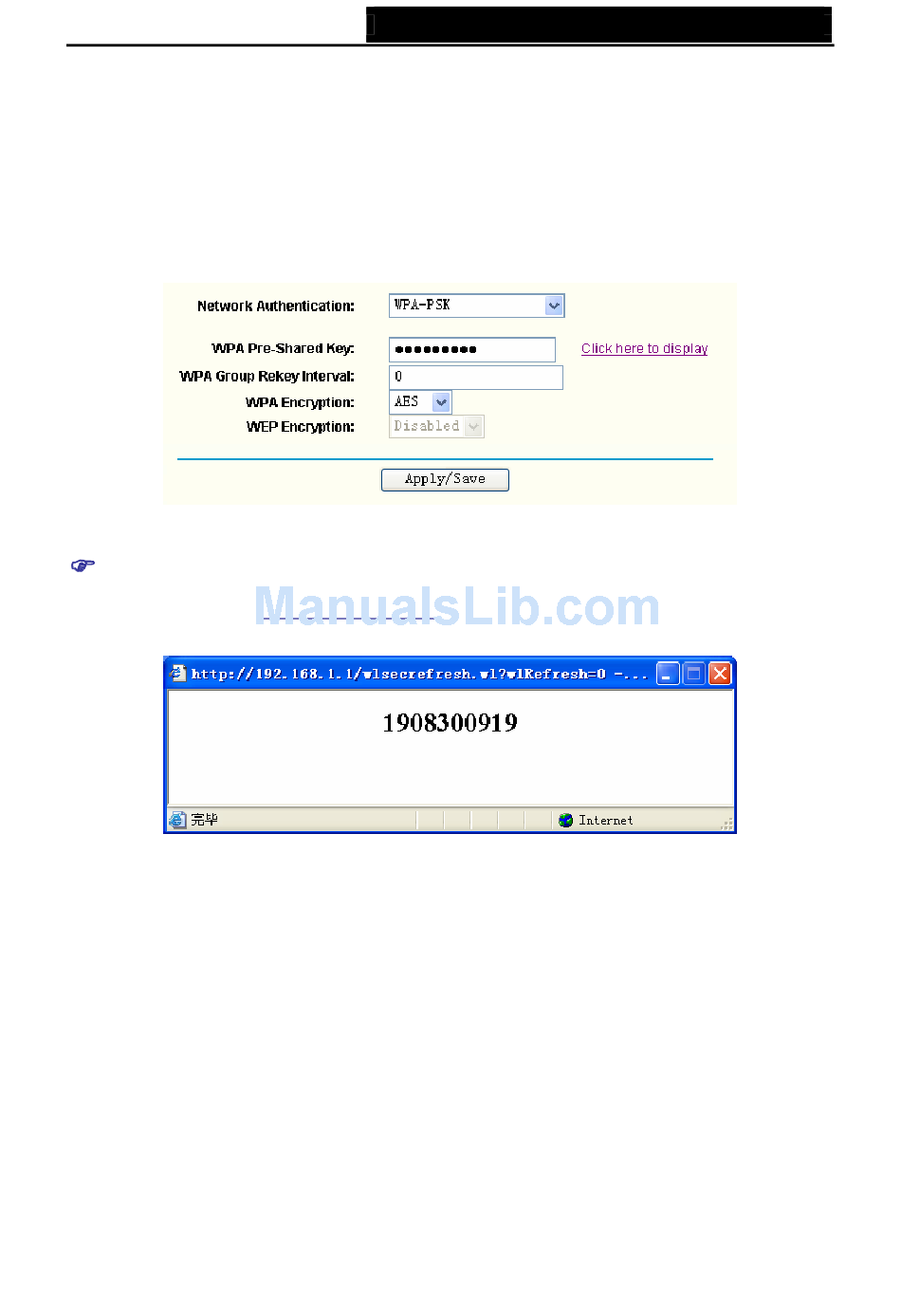

Figure 4-83
Figure 4-84
69
