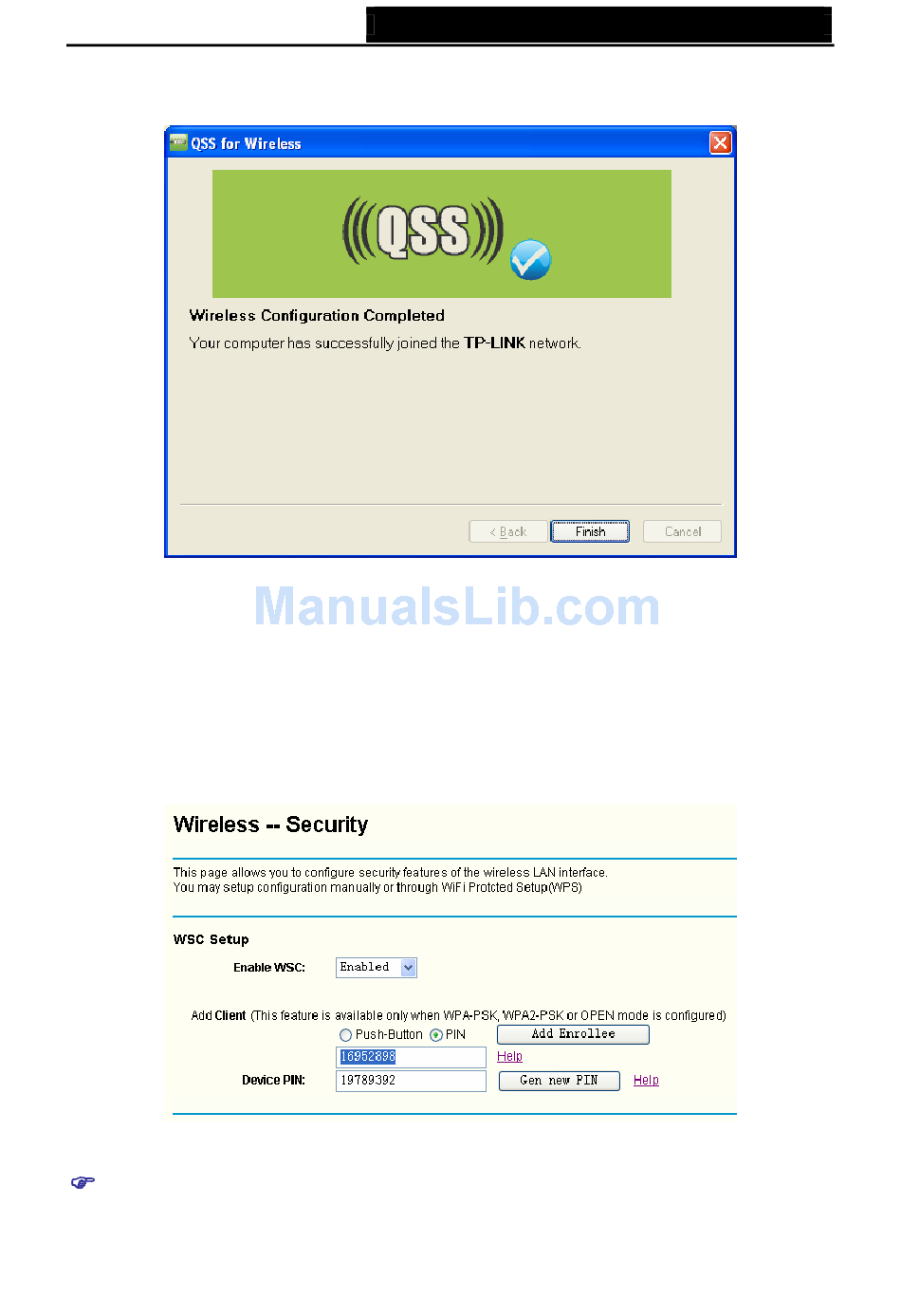

Step 3: Wait for a while until the next screen appears. Click Finish to complete the QSS
configuration.
II. By PIN
If the new device supports Wi-Fi Protected Setup and the PIN method, you can add it to the
network by PIN with the following two methods.
Method One: Enter the PIN of wireless adapter into my Router.
Step 1: Select the PIN checkbox and enter the PIN code of the wireless adapter in the field under
as shown below. Then click Add Enrollee.
Note:
The PIN code of the adapter is always displayed on the QSS configuration screen.
TD-W8960N
Wireless N ADSL2+ Modem Router User Guide
Figure 4-72
Figure 4-73
63
