Setup an Outgoing IP Filtering rule:
1. Click the Add button (pop-up Figure 4-30), and you will set the new rule in the next screen
(shown in Figure 4-31).
2. Enter the Filter name for the rule, it is exclusive and must be filled.
3. Select the protocol: TCP/UDP, TCP, UDP or ICMP in the drop-down list for the connection
between the Source IP address and Destination IP address.
4. Enter a Source IP Address in dotted-decimal notation format and then type the Source
Subnet Mask and Source Port (port or port: port) in the text boxes separately.
5. Enter a Destination IP Address in dotted-decimal notation format and then type the
Destination Subnet Mask and Destination Port (port or port: port) in the text boxes
separately.
6. Click Save/Apply to save this entry.
TD-W8960N Wireless N ADSL2+ Modem Router User Guide

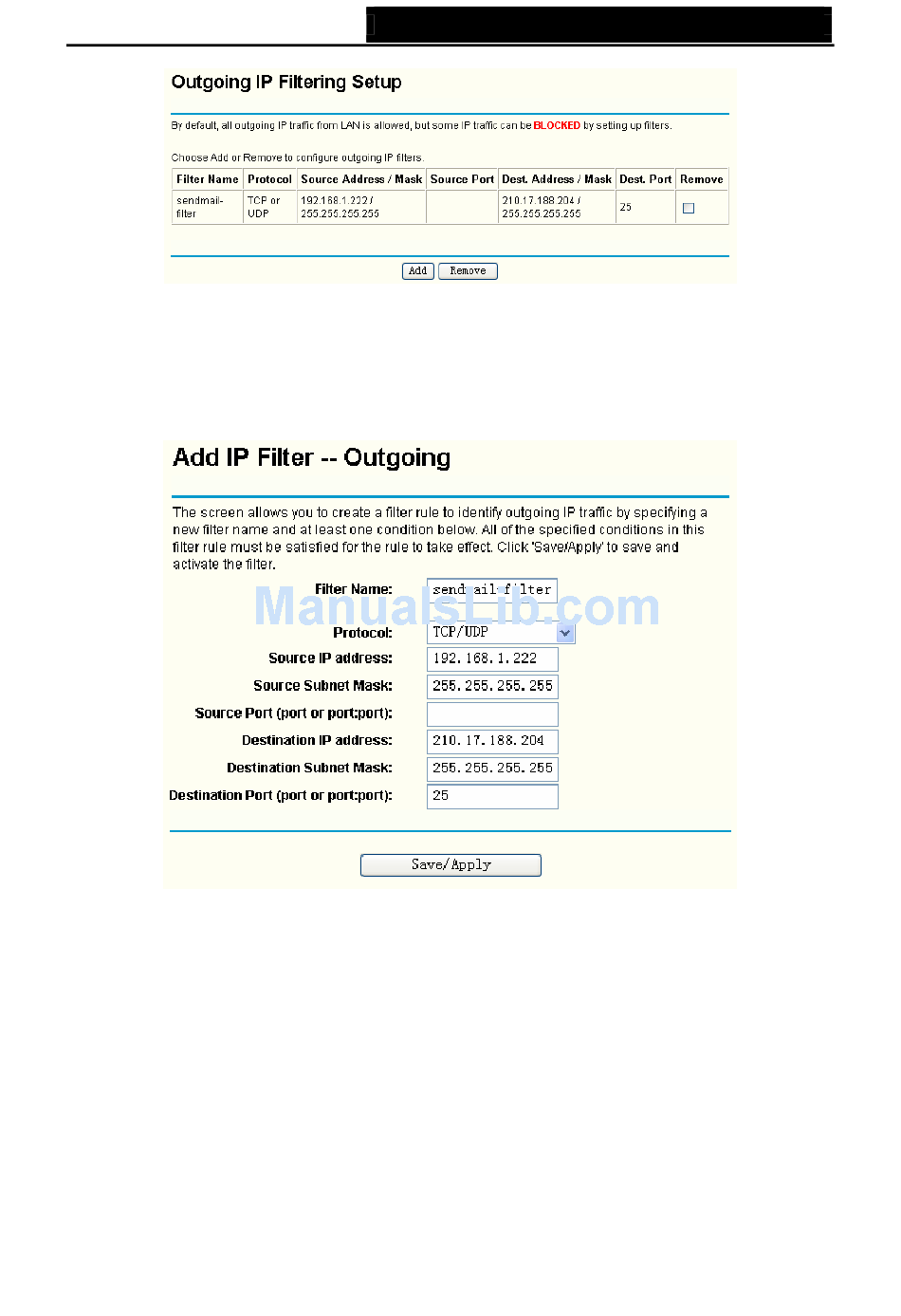

Figure 4-30
Figure 4-31
