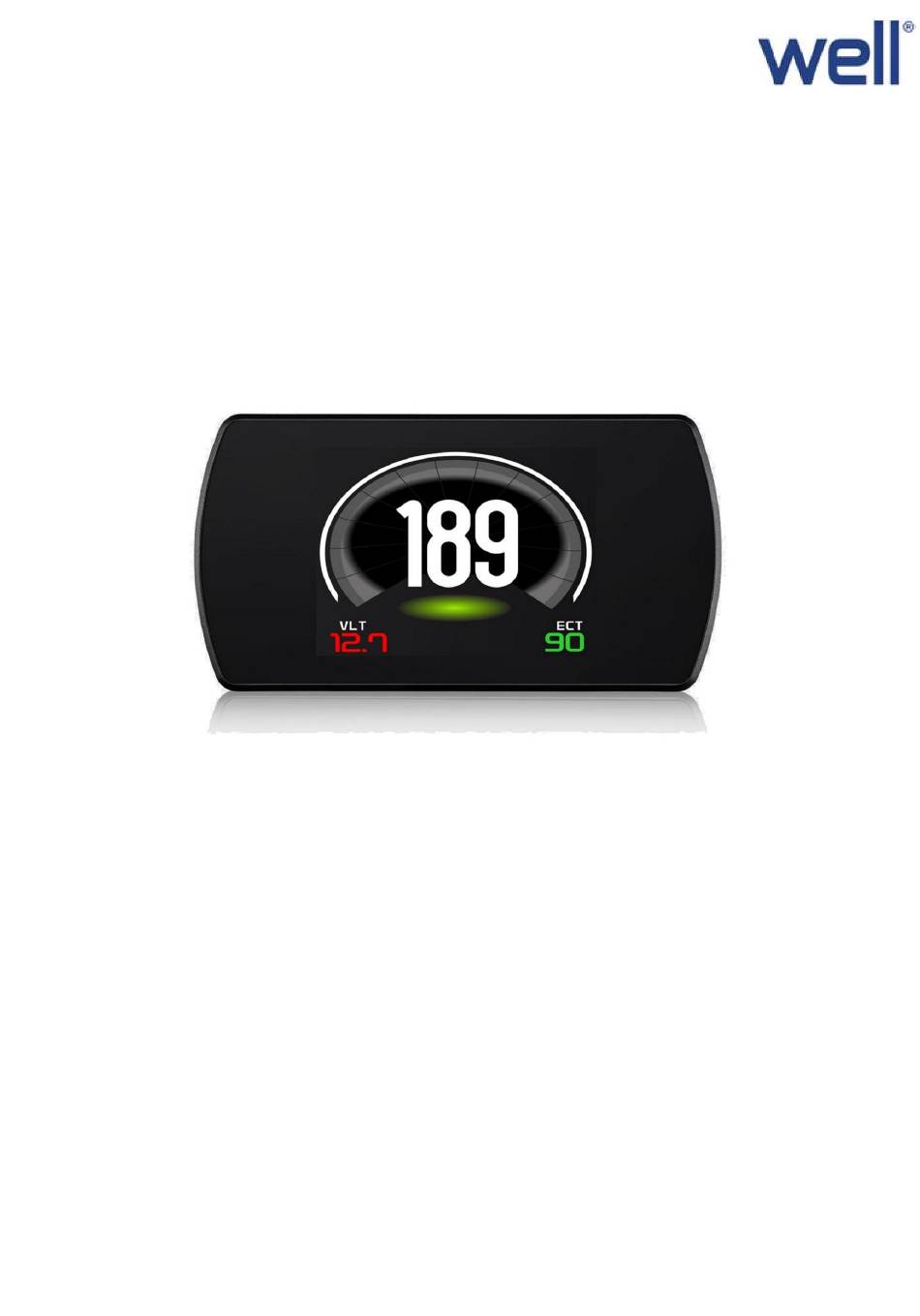

- Page 1 Installation and Operating Manual Head Up Display Model: Track Thank you for choosing WELL. Please read carefully the following instructions and keep them within reach. Preorder NO.: HUD-4.2-TRACK-WL...
- Page 2 Thanks for purchasing our OBD smart digital device. This product connects car OBD2 interface by OBD cable, and display the driving data, e.g. vehicle speed, engine RPM, water temperature, fuel consumption etc. It can keep the driver’s eyes always on road to avoid the dangerous of lowering down head to read the dashboard.
- Page 3 Setting button functions 1. Short press in:(1) switch the display mode (2)confirm the menu after enter into the menu 2. Push left:(1)switch the left area functions(2)change the function setting after enter into the menu 3. Push right:(1)switch the right area functions(2)change the function setting after enter into the menu 4.
- Page 4 Setting functions in the menu(setting) mode, all the default value can be changed, push left is to decrease, push right is to increase Language Set: Please choose your familiar language(English/Simplified Chinese/Traditional Chinese) Sound Switch: turn on/off the buzzer Speed Alarm: the default value is 150 (the default value can be changed, push left is to decrease, push right is to increase) Coolant alarm: default value is 120°, it means this device will give alarm when Coolant temperature is over 120°...
- Page 5 RPM alarm: default value is 6000 r, it means this device will give alarm when RPM over 6000 r BAT Alarm: default value is 10.5V, it means this device will give alarm when battery voltage is lower than 10.5V Speed Adjust: adjust the speed according to the dashboard, default value is 107% Speed Offset: When the vehicle turns off, but the device speed is not 0, then adjust the device Speed Offset value, if the device speed shows 5KM/H, then change the device Speed Offset default value at 5 BAT Adjust: if the battery voltage is different with the vehicle, it can be adjusted.
- Page 6 (see the below picture 1), if it has words like OBDII CERTIFIED, then it can be installed. 2.Find out the 16 pin diagnostic link (see the below picture 2) of the vehicle and connect it well with OBDII connecting line. Picture 1...
- Page 7 Product size: 107x57x20 mm Product Weight: 50 g Troubleshooting 1.The screen without any display, and no power Start the car engine; check if the OBD cable line is tight; please pull down the OBD cables more times to ensure; check if product power switch turns on.
- Page 8 B. After vehicle turns off, the device still display the RPM, switch the setting to sleep voltage, and make the value at 13.2V 8. Auto start and stop cars Change the Power off time to 180s 9.Wrong operation lead to crashes Do a factory set Why it will cause the car dashboard fault code bright? As Universal OBD device supports multiple communication modes, and generally each car only supports one kind of the...
- Page 9 2.Communication protocol ISO14230 KWP2000,keep the 4/5/7/16 pins, and pull up the other pins, as the below picture: communication protocol: ISO14230 KWP2000 3.Communication protocol ISO 9141-2,keep the 4/5/7/15/16 pins, and pull up the other pins, as the below picture communication protocol: ISO 9141 Waste electrical and electronic equipment are a special waste category, collection, storage, transport, treatment and recycling are important because they can avoid environmental pollution and are harmful to health.
