Specifications; Hardware Overview - Adafruit Motor Shield V2.0 Manual

Specifications

Spec
Operating Voltage
External Power
Output Current
PWM Range
Output

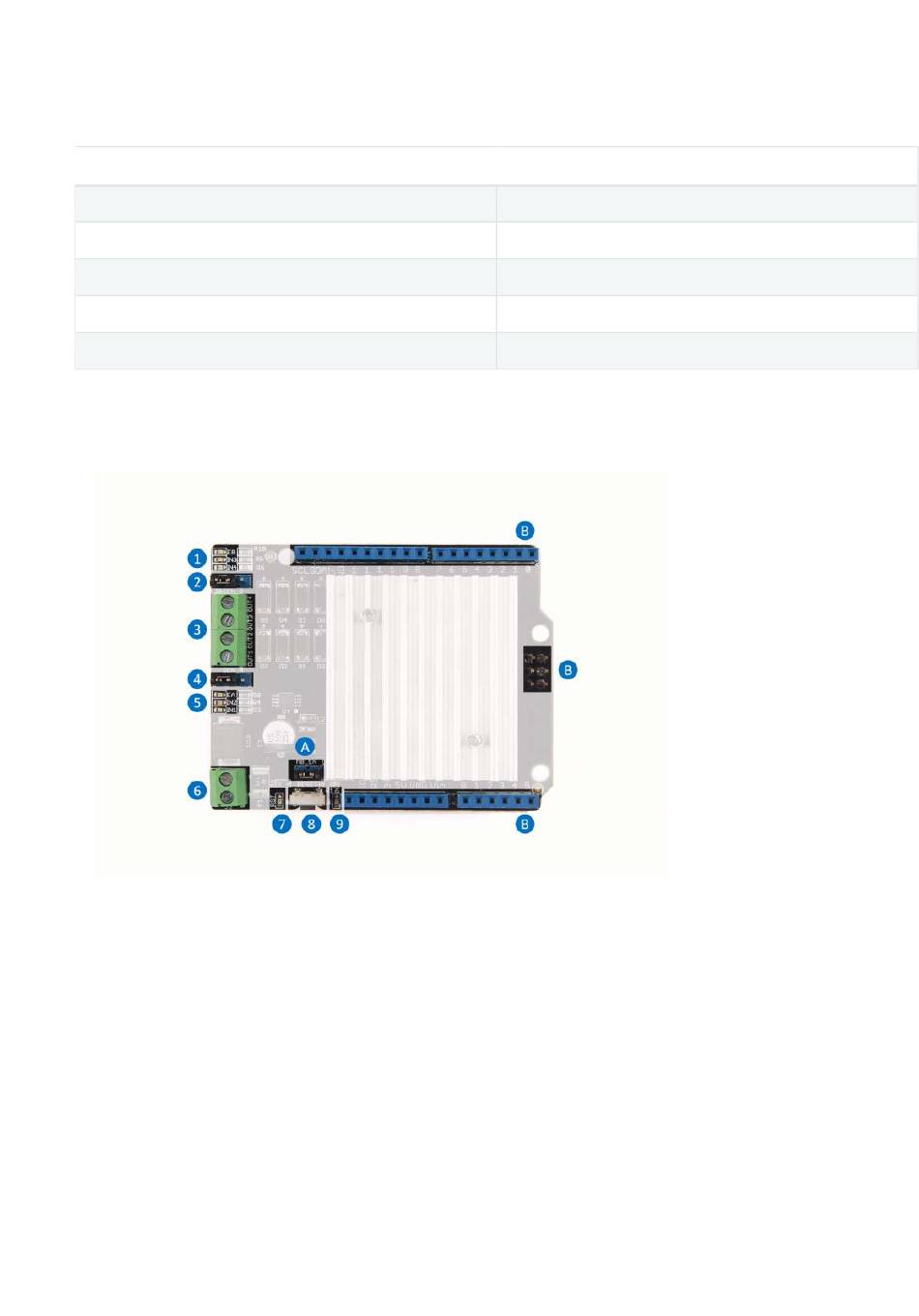

Hardware Overview

1.Channel 1 indicator, include 3 leds
•
EB - channel 1 enable, high active
•
IN3 - status of OUT3
•
IN4 - status of OUT4
2.Channel 1 Sense - Please connect the left 2 pins together for normal usage.
Note that it's a high level application for sense the current, please refer to datasheet
and schematic for more information.
Value
5V
6-15V
2.0A Max @ Each Channel
0-100%
2 Channels, 4 Ports
