INSTALLATION
GOLDen GATE, TBLZ-1/2-1-3-41
1. GENERAL
The TBLZ-1/2-1-3-41 Communication unit is designed for
use together with the GOLD Air handling unit, Version 4,
A and B.
The unit consists of the following components:
1. 4-module standard enclosure for DIN busbar
installation to IP20.
2. 9-pin D-subconnector for connection via serial cable
to the GOLD or modem.
3. Power supply terminals, 10-30 V AC/DC, 50 mA at
12V (see label).
4. RJ-12 jack for connection to the GOLD via special
cable if 2.is used for the modem
5. RJ-12 jack for Ethernet connection.
6. Digital input terminals.
Other features:
Module LED.
RX LED.
Link LED.
GOLD Comm. LED.
4
6
1
2
Specifications are subject to alteration without notice.
3

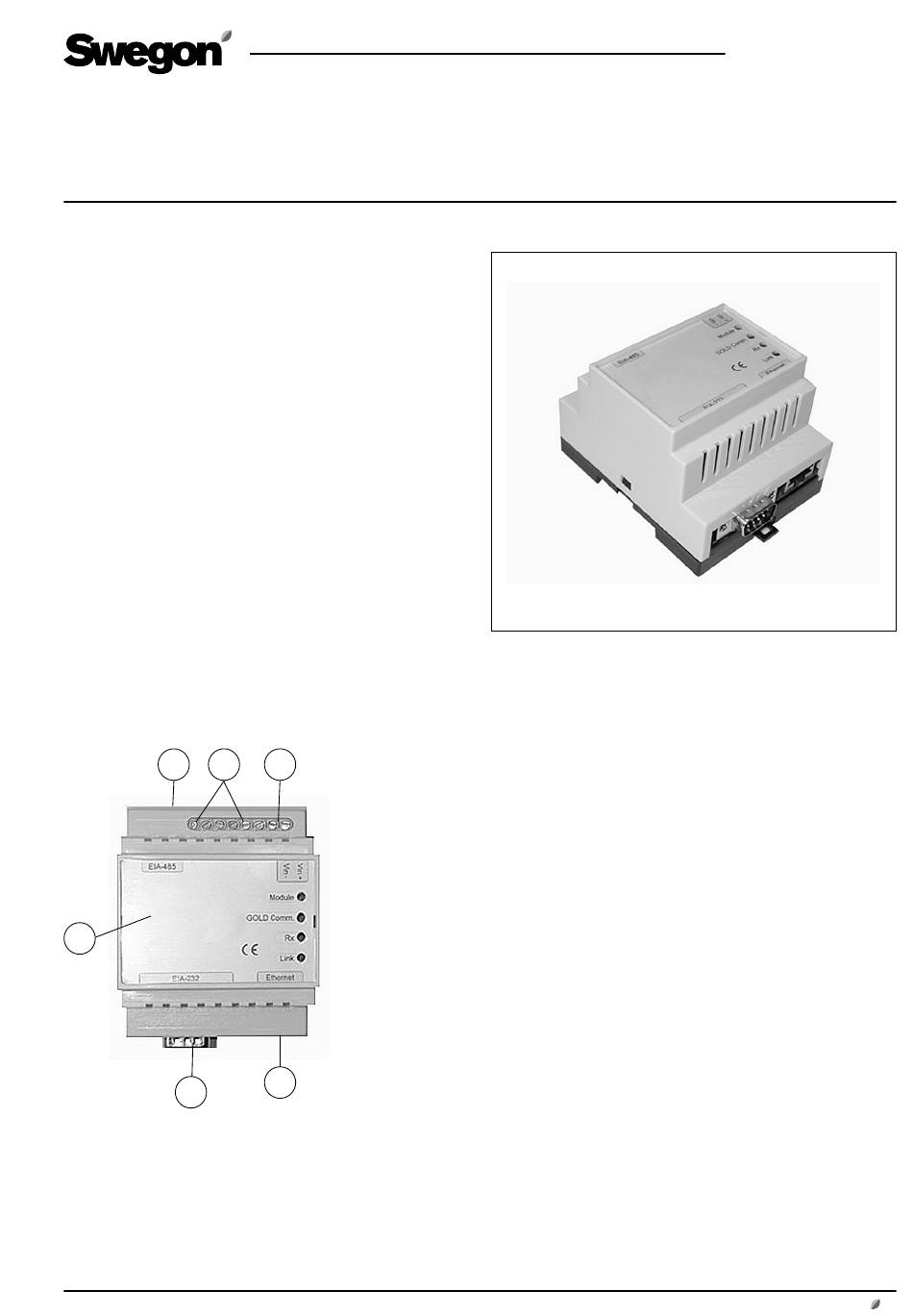

Fig. 1
5
2. SAFETY PRECAUTIONS
Be careful whenever you do any wiring to the unit. Never
carry out any work on the unit while the power supply is
switched on. Doing so could harm you and damage the
unit. Observe local electrical safety regulations as you
install the unit.
3. INSTALLATION
3.1 General
Connect conductors to the V in+ and V in- terminals (see
Fig. 1) of the GOLDen GATE unit and wire them to a sepa-
rate power supply unit with the correct capacity or to the
12 V DC or 24 V AC terminals of the GOLD air handling
unit.
Configure the communication unit using the configuration
program GOLDen GATEConfig available from our website
address: http://www.swegon.se. Install the program accor-
ding to the instructions in the setup window.
GB.TBLZ3112.050101
www.swegon.se
1
Advertisement
Related Manuals for Swegon GOLDen GATE
Summary of Contents for Swegon GOLDen GATE
- Page 1 3.1 General Connect conductors to the V in+ and V in- terminals (see Fig. 1) of the GOLDen GATE unit and wire them to a sepa- rate power supply unit with the correct capacity or to the 12 V DC or 24 V AC terminals of the GOLD air handling unit.
- Page 2 Start the configuration program and select Ethernet, see Figure 2. The program will now scan the network to seek the GOLDen GATE unit. All the units connected are shown on a list, see Figure 3. Double click on the unit desired and enter the IP addres- ses.
- Page 3 GB.TBLZ3112.050101 ������ �������� ����� ���� www.swegon.se Specifications are subject to alteration without notice.
-
Page 4: Digital Inputs
Version B GOLD units has terminal blocks for supplying 12 V DC current. Power GOLD Special cable Digital in 1 Digital in 2 - 10-30VDC + - 10-30VDC + Ordinary modem cable Modem Hub/Switch Modem TBLZ-1/2-1-2-41 Communication unit www.swegon.se Specifications are subject to alteration without notice. -
Page 5: General Explanations
LED shines red in the event of a serious fault in the hardware. GOLD Comm. LED flashes green while communication between the GOLD and the GOLDen GATE is in progress. LED shines red if an error in communication occurs between the GOLD and the GOLDen GATE.
