TBLZ-3-1-1-41 and TBLZ-1-2-1-41
1. General
The GOLDen GATE Lonworks communiction unit is avail-
able in a number of kits for connecting up to GOLD and
COMPACT units of various generations.
In addition to the communication unit itself (part no.
019400), each kit also includes connection cables.
TBLZ-3-1-1-41 Communications kit
Intended for use together with the Version B/C/D/E/F
GOLD air handling units and COMPACT air handling units.
TBLZ-1-2-1-41 Communications kit
Intended for use together with the Version 4/A GOLD air
handling units.
Safety precautions
Be careful when you connect leads to the unit. Never con-
nect
leads to the unit while the supply voltage is switched on.
Doing so may
result in injury to you and damage the unit. Observe local
electrical safety regulations when carrying out the electri-
cal installation work.

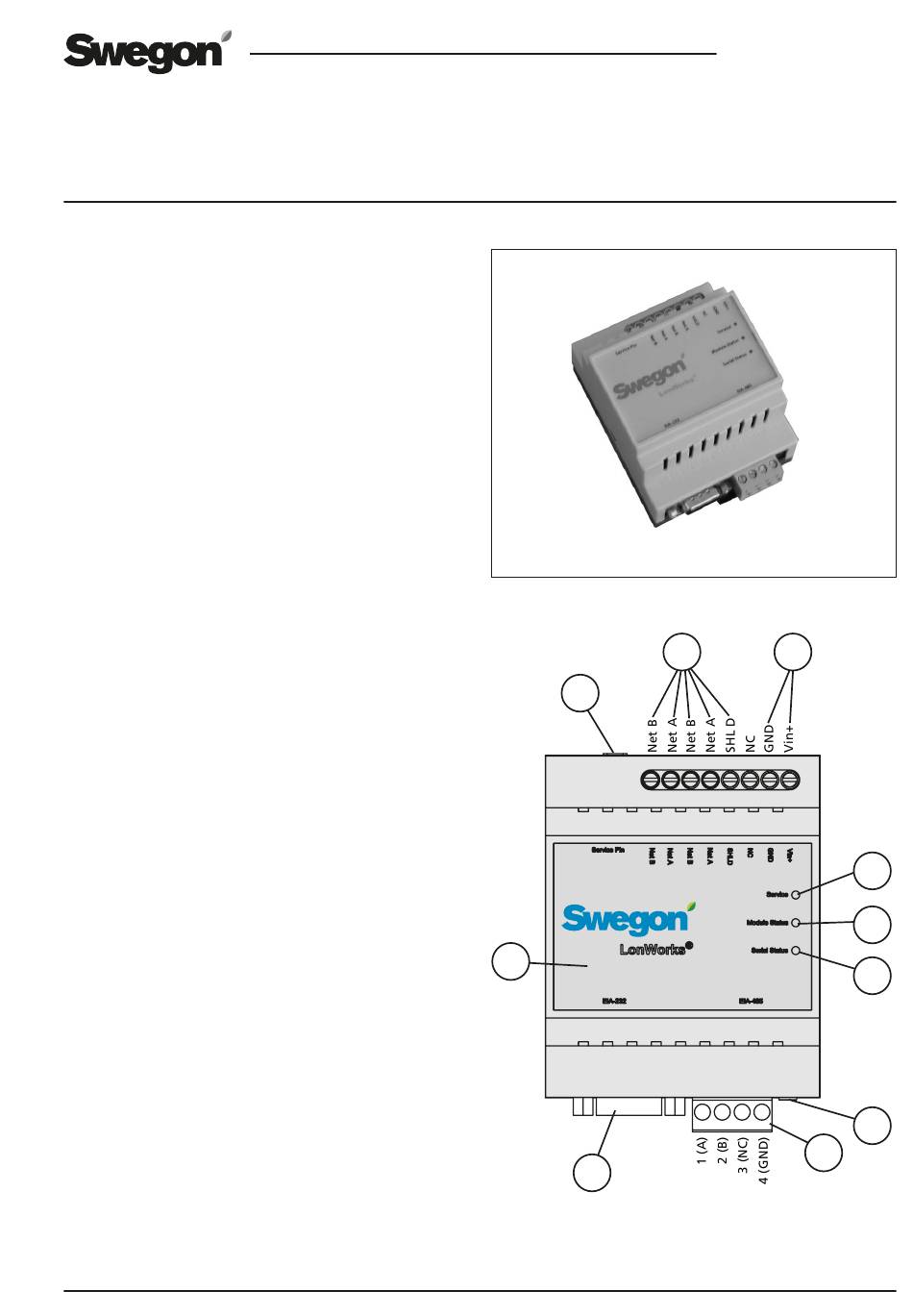

Communication unit
The unit consists of the following components:
1. 4-module standard enclosure for DIN-rail mounting to
IP20.
2. 9-pin D-subconnector for connection via serial cable
to
computer for configuration or to a Version 4/A/B
GOLD unit.
3. Terminal for a 10-30 V AC/DC, 25 mA power supply
for 24 V
4. Terminal block for EIA 485 network
(Used by Version C/D GOLD units)
5. DIL switch for the termination of the EIA 485 network
6. Terminal block for the LonWorks network.
7. "Service-Request" PIN.
8. Service LED.
9. Module Status LED.
10. Serial Status LED.
Registered design. The company reserves the right to make design changes without prior notice.
GOLDen GATE Lonworks FTT-10,
7
17 18 19 20 21 22 23 24
1
Fig. 1
2
GB.TBLZ41.160408
6
3
4
www.swegon.com
8
9
10
5
1
Advertisement
Table of Contents
Related Manuals for Swegon GOLDen GATE Lonworks FTT-10
Summary of Contents for Swegon GOLDen GATE Lonworks FTT-10
-
Page 1: Safety Precautions
GB.TBLZ41.160408 INSTALLATION GOLDen GATE Lonworks FTT-10, TBLZ-3-1-1-41 and TBLZ-1-2-1-41 1. General The GOLDen GATE Lonworks communiction unit is avail- able in a number of kits for connecting up to GOLD and COMPACT units of various generations. In addition to the communication unit itself (part no. - Page 2 Configure the unit by means of the configuration soft- ware: GOLDen GATE Config which is available from our website. Address http://www.swegon.com, under Software. Install the computer program according the instructions in the set-up window. A computer with Windows 98 or better is required, as well as an RS-232 serial port.
- Page 3 LON in the hand- held terminal under Functions/Communication/EIA-485. See also the Operating and Maintenance Instructions for the GOLD. www.swegon.com Registered design. The company reserves the right to make design changes without prior notice.
- Page 4 Check to make sure that the following values are set un- der: EIA-485/SETTINGS. Address = 1. Speed = 38400 Parity = none. Stop bits = 1. www.swegon.com Registered design. The company reserves the right to make design changes without prior notice.
- Page 5 Check to make sure that the following values are set un- der: EIA-485/SETTINGS. Address = 1. Speed = 38400 Parity = none. Stop bits = 1. www.swegon.com Registered design. The company reserves the right to make design changes without prior notice.
- Page 6 Connect the Lonworks-network to the communication unit, NET A (terminal 18 or 20), NET B (terminal 17 or 19) and shield, if required, to SHLD (terminal 21). www.swegon.com Registered design. The company reserves the right to make design changes without prior notice.
- Page 7 GATE Config” folder installed. The parameters for Version C are also described in the Function Profile that is avail- Serial Status able from our home page at www.swegon.com under Flashes green when the unit communicates with the Products/Air handling units/GOLD One-piece unit. Please GOLD unit.
- Page 8 GB.TBLZ41.160408 www.swegon.com Registered design. The company reserves the right to make design changes without prior notice.
