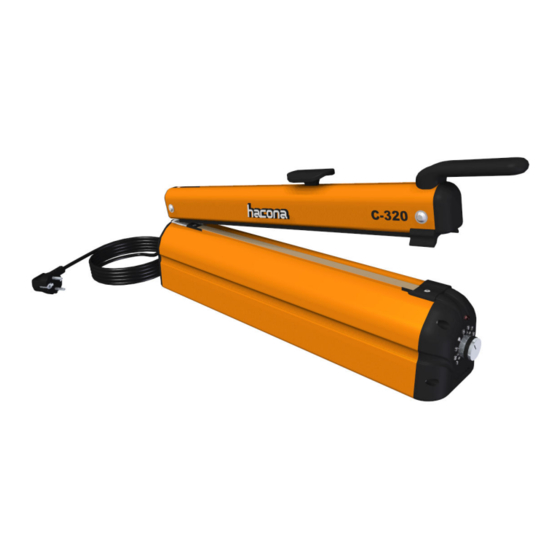

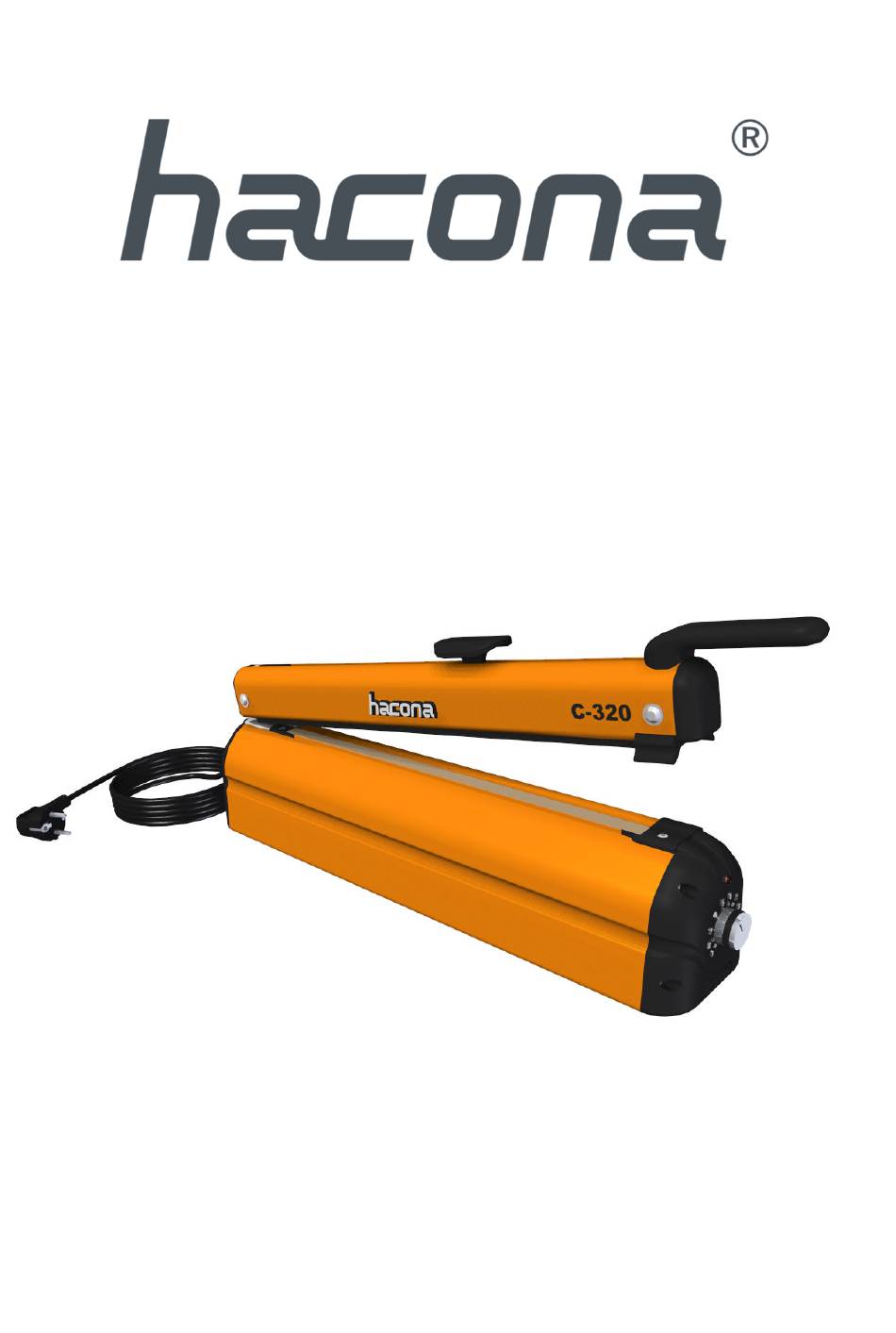

- Page 1 C-type V2.0 Impulse sealing machine Instruction manual Before using the machine please read carefully the instruction manual!
-
Page 2: Table Of Contents
Table of contents: Introduction ....................3 1.1. Capacity of the sealing machine............3 1.2. Identification of the machine ..............3 How to set up the machine ................4 2.1. Transport and positioning of the machine ..........4 2.2. Conditions of use .................. 4 Technical description.................. -
Page 3: Introduction
Introduction This table impulse sealer is exceptionally easy to handle and indispensable in factories, offices and anywhere where packaging is necessary or the shelves need to be tied up. The machine is suitable for plastic bag preparation and sealing of plastic bags filled with goods. In order to prevent damage and accidents due to misuse the machine can only be used by an operator trained to handle the machine and who read and understood the machine’s... -
Page 4: How To Set Up The Machine
Figure 1 Data table How to set up the machine 2.1. Transport and positioning of the machine During transport and setup, handle the machine with great care. Carefully lift the machine out of the cardboard box. After unpacking, it is advisable to put the machine on a worktable. 2.2. -
Page 5: Technical Description
Technical description 3.1. Build-up Figure 2 The build-up of sealing machine 1 – Grounded main electric 9 – Sealing unit (sealing cable wire with upper and 2 – Hinge bolt lower teflon tape) 3 – Sealing bar 10 – LED (lamp) 4 –... -
Page 6: Setup And Operation Of The Machine
and afterwards for 1-2 seconds so that the film cools down. Cut the film then lift the handle to default position. For the appropriate operation of the machine it is necessary to read and fully understand the entire instruction manual. Setup and operation of the machine 5.1. -
Page 7: Setup
5.3. Setup The machine is ready for operation after it is connected to the electricity network. The yellow light of the LED (lamp) indicates the ready state. (Figure 4 “a”). The correct sealing time should be set referring to the type and width of the used film. -
Page 8: The Use Of The Cutting Knife
out at a higher temperature than necessary, may result in the premature wear of parts and the excessive melting of packaging material. Never weld without film. 5.4. The use of the cutting knife The knife is pulled back by a spring for safety reasons. By pressing down the knife and moving it back and forth the film can be cut during the sealing time. -
Page 9: Conditions And Limitations Of The Machine's Appropriate Operation
always check that the knife is intact and that it is at its correct position. Conditions and limitations of the machine’s appropriate operation 6.1. Technical parameters Sealing Maximal Cutting Machine Type length film width length dimension weight [mm] [mm] [mm] [mm] [kg] C - 220... -
Page 10: Machine Maintenance
The machine must be disconnected from the electric network if the sealing wire brakes. The broken sealing wire must be changed. Electric shock hazard. Check the correct position of machine on the worktable. Hazard of accident. Before use, always check that the knife is intact and is at its correct position. -
Page 11: How To Replace The Wearing Parts
8.2. How to replace the wearing parts When changing any parts use only original HACONA spare parts. The use of materials that are not original results in the invalidity of the guarantee. 8.2.1. How to replace the teflon tapes and sealing wire Used, burned teflon tapes have to be change without delay for safe operation. -
Page 12: How To Replace The Silicone Rubber
Use only original HACONA spare parts. The surface of the sealing wire (Figure 6 “4”) can never be taped, it has to be able to move freely under the upper teflon strap. -
Page 13: How To Replace The Knife
Figure 7 How to replace the silicone rubber Only use original HACONA spare parts. 8.2.3. How to replace the knife To change the blunt, dull or broken knife lift the sealing bar and press down the head of the knife assembly. Pull the knife out with pliers from its... -
Page 14: How To Replace The Knife Assembly
Figure 8 How to replace the knife Hazard of injury. Always wear protective gloves during operation. Only use original HACONA spare parts. 8.2.4. How to replace the knife assembly The worn out or damaged knife assembly must be replaced. Remove the front cap of the sealing bar from the front side of the sealing bar as it opens (Figure 9, a/1). - Page 15 Note: Always put the front cap back or the machine will not work! Figure 9 How to replace the knife assembly Only use original HACONA spare parts. Hazard of injury. Always wear protective gloves during operation.
-
Page 16: Electric Setup
8.3. Electric setup Figure 10 Electric switch List of parts: 1 – Control panel 4 – Switch (Hall-sensor) 2 – Grounded main electric 5 – Sealing wire cable 6 – Safety transformer 3 – Fuse (2,5 A) -
Page 17: Opening The Machine
Technical parameters: Nominal Type of Primer/Secondary Nominal electric transformer voltage current power C-220/CI-220 230/10V 135 W 0.60 A C-320/CI320 230/15V 175 W 0.80 A C-420/CI-420 230/19V 220 W 1,00 A C-620/CI-620 230/27V 320 W 1.45 A The electric power of every machine during idle time is less than 8 W. Electric shock protection rating: First class IP20 IP code:... -
Page 18: Wearing Parts
8.6. Wearing parts 1-Silicone rubber 4-Lower teflon tape 2-Upper teflon tape 5-Knife assembly 3-Sealing wire 6-Cutting blade Figure 12 Wearing parts 8.7. Handling of the waste The purchased product may contain parts considered hazardous waste therefore do not dispose of the unit as communal waste as it might damage the environment. -
Page 19: Troubleshooting
Troubleshooting The machine does not weld, and the LED • Check whether the machine is (lamp) does not light yellow or red. connected to 230V electricity supply and if the network is working. • The control panel is damaged. The machine does not weld. The LED •... -
Page 20: Guarantee
Guarantee 10.1. Guarantee The guarantee is valid for 12 months after the purchase. The guarantee can only be vindicated if the original receipt is shown. 10.2. Conditions of guarantee The guarantee covers material defects and replacement, repair of parts with production defects. The replacement, repair of parts with defects take place at premises of the producer or its official distributor. - Page 21 Figure 13 The correct packing of the machine.
- Page 22 According to relevant legislations all liability is relinquished in the case of injuries and damage of objects where the machine has not been set up appropriately, is connected to the electric supply improperly or without grounding, the machine is not operated by a trained operator, the machine was opened without authorization, the machine was altered or was not used appropriately.
-
Page 23: Spare Parts/ Ware Parts
Spare parts/ Ware parts Order No. Type Description In meter C-220 C-320 C-420 C-620 C-820 CI-220 CI-320 CI-420 CI-620 CI-820 Silicone rubber HA 004-453 HA 004-454 HA 004-455 HA 004-456 HA 004-457 HA 000-427 Upper teflon HA 000-578 tape Sealing wire HA 001-334 HA 001-335 HA 001-336 HA 001-337 HA 005-252 pack * Lower teflon... -
Page 24: Ec Declaration Of Conformity
EC Declaration of Conformity Hereby HACONA Kft. Újszász utca 45/B, „T”-building H-1165 Budapest, HUNGARY ℡ +36 (1) 401-3030 +36 (1) 401-3031 mail@hacona.com www.hacona.com declares being fully aware of the legal liability, that the following Impulse sealing machine Type: Serial number:...
