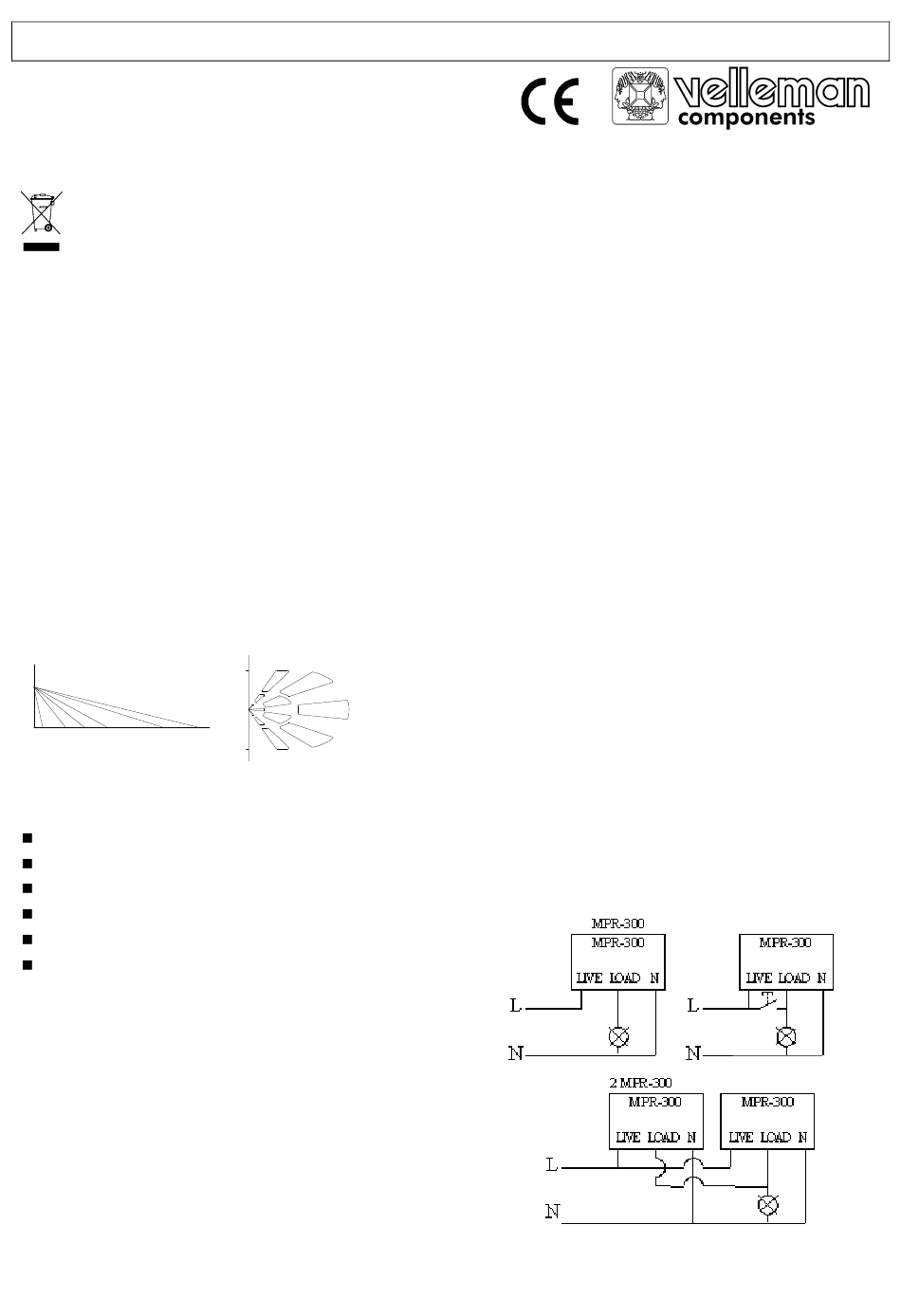

Velleman PIR300 Manual

1. Introduction
To all residents of the European Union
Important environmental information about this product
This symbol on the device or the package indicates that disposal of the device after its lifecycle could harm
the environment.
Do not dispose of the unit (or batteries) as unsorted municipal waste; it should be taken to a specialised
company for recycling.
This device should be returned to your distributor or to a local recycling service.
Respect the local environmental rules.
If in doubt, contact your local waste disposal authorities.
Thank you for buying the PIR300! Please read the manual thoroughly before bringing this device into service. If the
device was damaged in transit, don't install or use it and contact your dealer.
The lighting switches on automatically as soon as a source of heat (e.g. a person) enters the detection zone. The
lighting remains switched on as long as motion is detected and will switch off after a set time.
The timer is adjustable from 5 to 320 seconds. The built-in sensor will switch on the lighting at night only (sensitivity
is adjustable).
2. Fixing the detection zone
The detector has a detection range of +/- 15 meter in an angle of 110°.
SIDE VIEW
2M
2M 6M 15M
3. Mounting the detector
Choose an appropriate mounting place.
Place the detector at a height between 2.10m and 2.70m above the ground.
Disconnect the mains voltage!
Use the back lid of the junction box to trace the drill holes.
Drill two holes and fix the back firmly on the wall.
Slide the cable through the waterproof cable entry.
4. Wiring
Connect the detector according to one of the charts:
- Replace the back of the detector.
PIR300
PIR300 – PIR MOTION DETECTOR
TOP VIEW
12M
15M
12M
1
MPR300 + SWITCH
2 MPR300 IN PARALLEL
VELLEMAN
