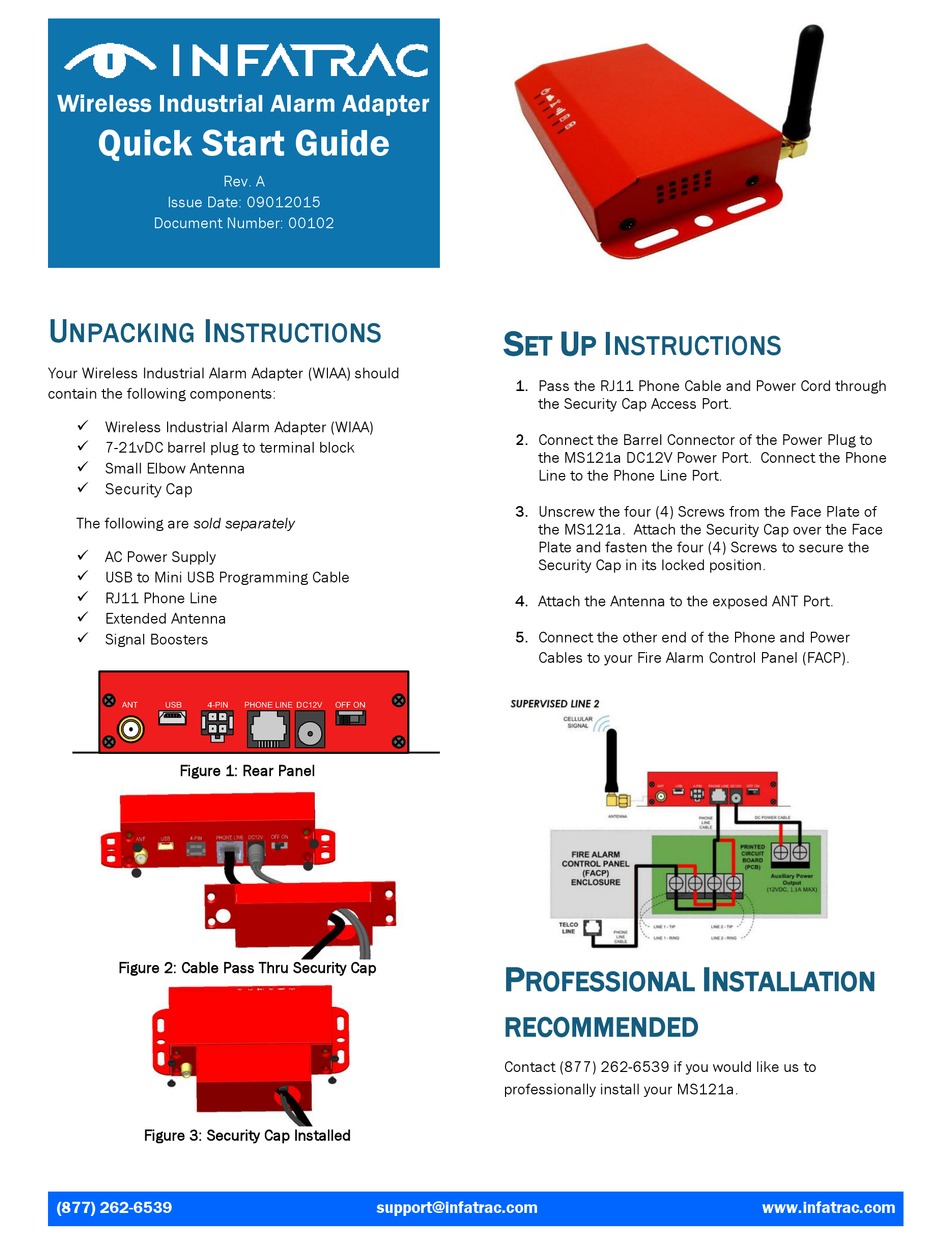

Infatrac WIAA-22 Quick Start Manual

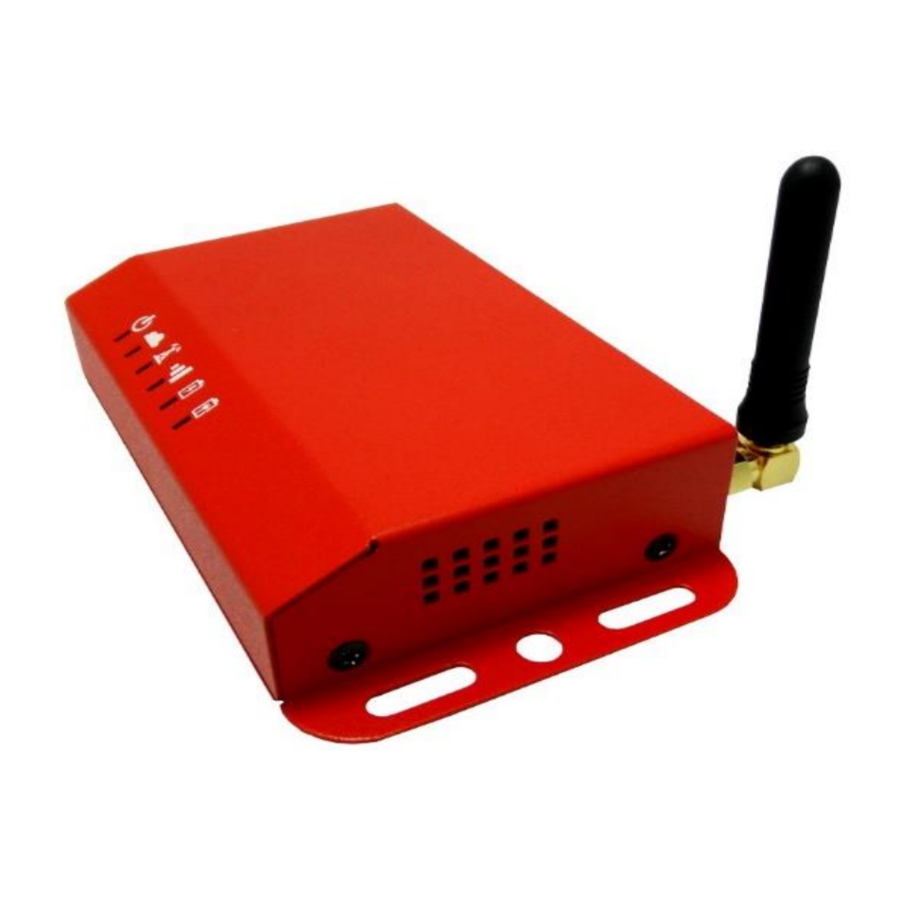

Wireless Industrial Alarm Adapter
Quick Start Guide
Rev. A
Issue Date: 09012015
Document Number: 00102
U I
NPACKING NSTRUCTIONS
Your Wireless Industrial Alarm Adapter (WIAA) should
contain the following components:
 Wireless Industrial Alarm Adapter (WIAA)
 7-21vDC barrel plug to terminal block
 Small Elbow Antenna
Security Cap

The following are sold separately
 AC Power Supply
 USB to Mini USB Programming Cable
 RJ11 Phone Line
 Extended Antenna
 Signal Boosters
Figure 1: Rear Panel
Figure 2: Cable Pass Thru Security Cap
Figure 3: Security Cap Installed
(877) 262-6539
S
ET
1. Pass the RJ11 Phone Cable and Power Cord through
the Security Cap Access Port.
2. Connect the Barrel Connector of the Power Plug to
the MS121a DC12V Power Port. Connect the Phone
Line to the Phone Line Port.
3. Unscrew the four (4) Screws from the Face Plate of
the MS121a. Attach the Security Cap over the Face
Plate and fasten the four (4) Screws to secure the
Security Cap in its locked position.
4. Attach the Antenna to the exposed ANT Port.
5. Connect the other end of the Phone and Power
Cables to your Fire Alarm Control Panel (FACP).
P
ROFESSIONAL
RECOMMENDED
Contact (877) 262-6539 if you would like us to
professionally install your MS121a.
support@infatrac.com
U I
P NSTRUCTIONS
I
NSTALLATION
www.infatrac.com
