Summary of Contents for Jungheinrich Easy Access Transponder Stand-Alone

Page 3 Declaration of Conformity Jungheinrich AG, Friedrich-Ebert-Damm 129, 22047 Hamburg, Germany Manufacturer or agent acting in the European Union Model Option Serial no. Year of manufacture Easy Access Transponder Stand-Alone Additional information On behalf of Date G EC Declaration of Conformity...
Page 4 When operating and performing maintenance work, make sure that you use the description that applies to the Easy Access Transponder Stand-Alone Modul. Our Easy Access Transponder Stand-Alone Modul undergoes continual ongoing development.
Page 5 Safety notices and markings Safety notices and other important notices and their significance are indicated by the following safety warning notices and signal words: DANGER! Danger refers to an acutely hazardous situation that will result in severe and even fatal injuries if the instruction is ignored. WARNING! Warning refers to a potentially hazardous situation that could result in severe and even fatal injuries if the instruction is ignored.
Page 6 Copyright Copyright of these operating instructions remains with JUNGHEINRICH AG. Jungheinrich Aktiengesellschaft Friedrich-Ebert-Damm 129 22047 Hamburg - Germany Tel: 40/6948-0 www.jungheinrich.com...
Page 7: Table Of Contents
1.1 Easy Access Transponder Stand-Alone Module Description ......15 1.2 Button allocation of the display ..............15 1.3 Operation of the Easy Access Transponder Stand-Alone Module ....16 2 Operation of the Easy Access Transponder Stand-Alone Module ..... 18 2.1 General Information about the Use of the Keyless Access System ....18 2.2 Using the Display: ..................
Page 8 In adverse weather conditions (thunder, lightning), the Easy Access transponder standalone module must not be operated outdoors or in endangered areas.
Page 9: Proprietor Responsibilities
Proprietor responsibilities For the purposes of these operating instructions, the "operating company" is defined as any natural or legal person who either uses the Easy Access Transponder StandAlone Modul himself, or on whose behalf it is used. In special cases (e.g. leasing or renting) the operating company is considered the person who, in accordance with existing contractual agreements between the owner and operator of the Easy Access transponder standalone module, is charged with operational...
Page 10: B Component Description
B Component Description Application The Easy Access Transponder Stand-Alone Modul is an access system. Activation is via a transponder in accordance with DIN ISO/IEC 14443 A/B, via soft key entry on delivery.
Page 11: Technical Specifications
Technical Specifications All technical specifications refer to a standard module. Technical modifications and additions reserved. Module Power supply 12 VDC to 48 VDC Current consumption during operation 12 V - 120 mA (maximum) 24 V - 60 mA 48 V - 35 mA Standby current consumption 8 mA at 24 V Dimensions...
Page 12: Norms
+ supply CANH Activity detection (low active) EN norms Electromagnetic compatibility (EMC) The manufacturer confirms that the truck adheres to the limits for electromagnetic emissions and resistance as well as the static electricity discharge test in accordance with EN 300330-1 as well as the standardised instructions contained therein.
Page 13 L’émetteur/récepteur exempt de licence contenu dans le présent appareil est conforme aux CNR d’Innovation, Sciences et Développement économique Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes : 1.L’appareil ne doit pas produire de brouillage; 2.L’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement.
Page 14: 2.4 Conditions Of Use
2.4 Conditions of use Ambient temperature -28°C to +65°C Electrical requirements The manufacturer certifies compliance with the requirements for the design and manufacture of electrical equipment, according to EN 1175 "Safety of industrial trucks - Electrical requirements" and EN 60204-1 "Safety of machinery - Electrical equipment of machines", provided the module is used correctly.
Page 15: C Operation

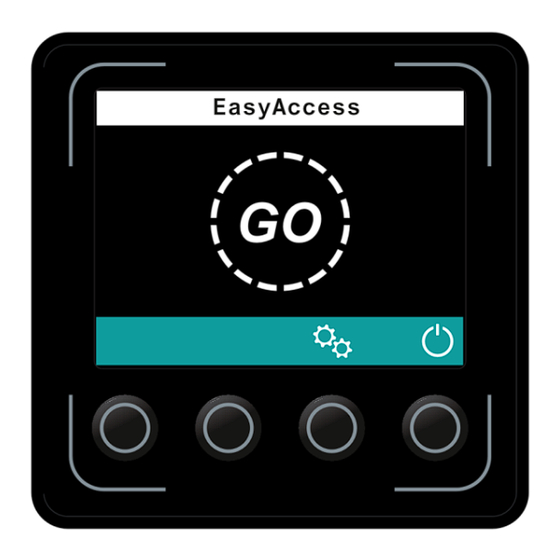

C Operation Easy Access Transponder Stand-Alone Module Easy Access Transponder Stand-Alone Module Description Item Control/ Function display Key allocation see page 18. Keys Selection keys for the corresponding functions. Button allocation of the display Symbol Function Confirms an entry or a transponder...
Page 16: Operation Of The Easy Access Transponder Stand-Alone Module
Selection of codes/transponders Clear: Deletes selected codes/transponders Add: To add transponders Log-in history: Displays the chronological log-in history Operation of the Easy Access Transponder Stand-Alone Module The keyless access system allows an individual access code to be allocated to each operator.
Page 17 Item Description Display unit (as-supplied condition): – Entry of 4-digit default or set-up code, using the numbers 1 to 4 Transponder reader: – Read area for the transponder...
Page 18: Operation Of The Easy Access Transponder Stand-Alone Module
Operation of the Easy Access Transponder Stand-Alone Module General Information about the Use of the Keyless Access System The default code is to be found on a sticker. When using for the first time, change the set-up code and remove the sticker! –...
Page 19: Using The Display
Using the Display: 2.2.1 Activating the Module with the Default Code Procedure • Release the emergency disconnect switch. • Enter the default code 1-2-3-4 using the soft keys below the display (3). The module is enabled. 2.2.2 Blocking an Enabled Module Procedure •...
Page 20: Commissioning The Transponder Reader
Commissioning the Transponder Reader In the as-supplied condition, the Easy Access transponder standalone module can be enabled only by using the keys on the display unit. The operating company needs to activate the transponder reader. Once the transponder reader has been activated, the module can be enabled only by using transponders.
Page 21 2.3.1 Activating the transponder reader Procedure • Release emergency disconnectswitch. • Enter the default code 1-2-3-4 using thekeys below the display unit (3). The truck is switched on. • Press below "Settings"symbol (6). • Press the key below the "Change set- upcode"...
Page 22: Using The Transponder Reader
Using the Transponder Reader NOTE Do not damage the transponders. The module cannot be switched on with damaged transponders. 2.4.1 Activating the Module with a Transponder Procedure • Release the emergency disconnect switch. • Hold a transponder in front of thetransponder read area (4).
Page 23 2.4.3 Adding a new transponder Requirements – The truck is switched on, see page 24. Procedure • Press the key below the "Settings"symbol (6). • Press below "Edit transponder" symbol (11). A set-up transponder is requested. • Place set-up transponder thetransponder reader (4).
Page 24 2.4.4 Deleting transponders Requirements – The truck is switched on, see page Procedure • Press below "Settings"symbol (6). • Press below "Edittransponder" symbol (11). set-up transponder is requested. • Place the set-up transponder on thetransponder reader (4). transponder IDs are shown on the display unit (3).
Page 25 2.4.5 Adding a New Set-up Transponder Requirements – The truck is switched on, see page 24. Procedure • Press the key below the "Settings"symbol (6). • Press the key below the "Change set-up transponder" symbol (11). The set-up transponder is requested. •...
Page 26 2.4.6 Deleting a Set-up Transponder Requirements – The truck is switched on, see page Procedure • Press below "Settings"symbol (6). • Press below "Changeset-up transponder" symbol (11). set-up transponder is requested. • Place the set-up transponder on thetransponder reader (4). All set-up transponder IDs are shown on the display unit (3).
Page 27: Log-In History
Log-in History The log-in history displays the last 10 transponder IDs used to enable the module in chronological order. The current log-in is displayed first. Requirements – Truck is switched on. Procedure • Press the key below the "Settings"symbol (6). •...
