Connector details
15.

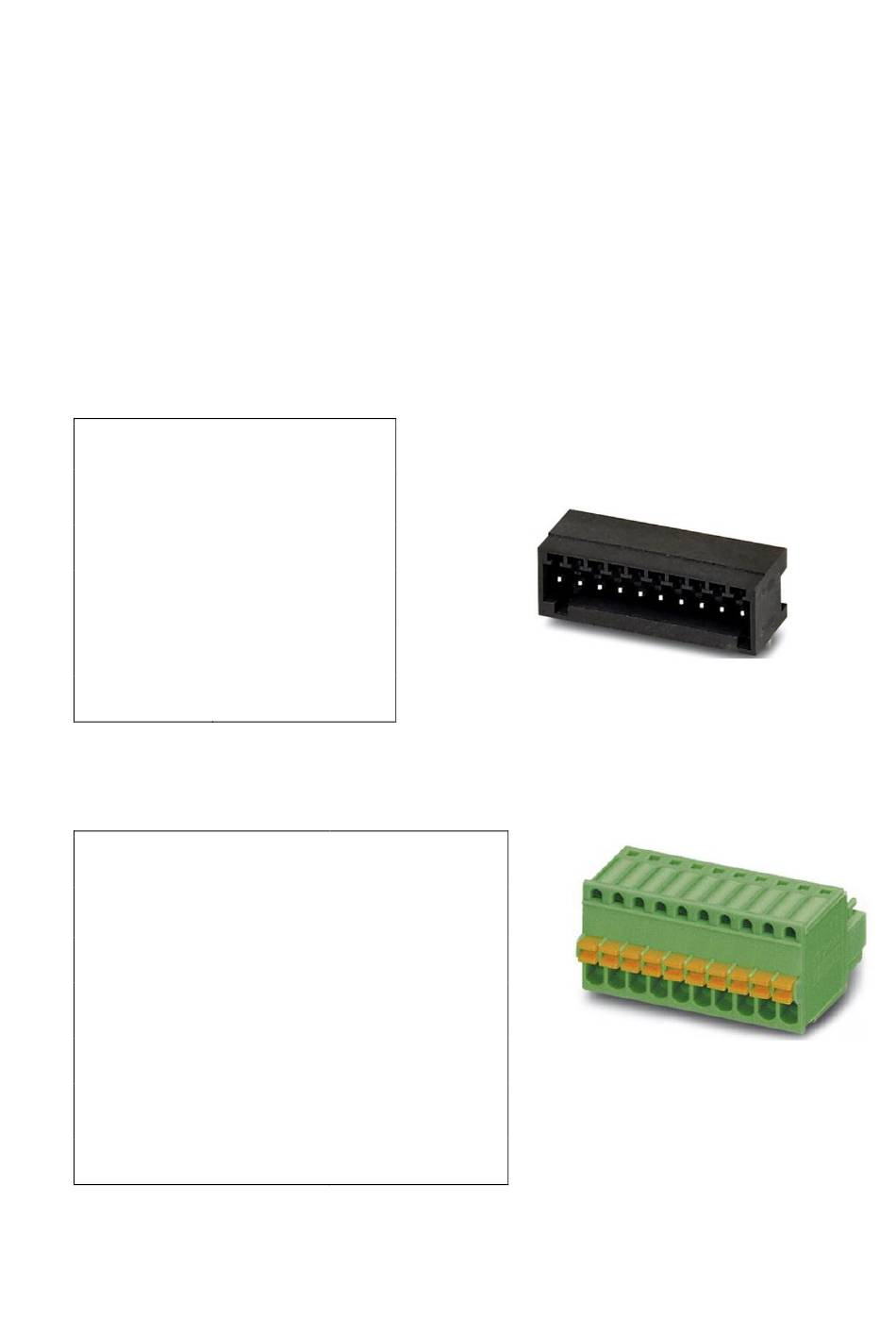

The connector inside the PLCs that mounts on the PCB is MC 0,5/10-G-2,5 THT – 1963502
from Phoenix contact. MC0,5/10-G-2,5THT
For I/O and power supply there is a FK-MC 0,5/10-ST-2,5 - 1881406 connector from Phoenix
contact. FK-MC 0,5/10-ST-2,5
Connection details:
MC 0,5/10-G-2,5 THT
Article reference
Height
Pitch
Dimension
Pin dimensions
Pin spacing
Article reference
Rigid conduit section min.
Rigid conduit section max.
Flexible conduit section min.
Flexible conduit section max.
Conduit section AWG/kcmil min.
Conduit section AWG/kcmil max.
8,1mm
2,5mm
22,5mm
0,8x0,8mm
2,50mm
FK-MC 0,5/10-ST-2,5
0,14 mm²
0,5 mm²
0,14 mm²
0,5 mm²
26
20
Rev. 0: 30-08-2019
