Operating Instructions and Parts Manual
24500
Please read and save these instructions. Read through this owner's manual carefully before using product. Protect
yourself and others by observing all safety information, warnings, and cautions. Failure to comply with instructions
could result in personal injury and/or damage to product or property. Please retain instructions for future reference.

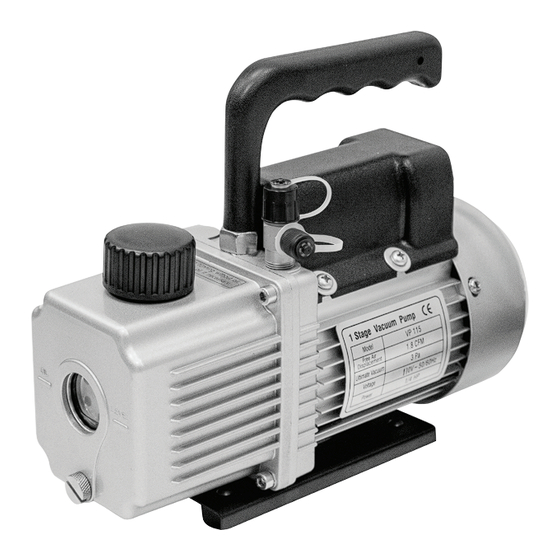

1.8 CFm siNGLe stAGe
vACuum PumP
For Customer serviCe
Technical Question?
CALL 1-866-458-2472
customerservice@oem-tools.com
uNPACKiNG
After unpacking unit, inspect
carefully for any damage that
may have occurred during transit.
Check for loose, missing, or
damaged parts. If any damage
is observed, a shipping damage
claim must be filed with carrier.
Do not use product if broken,
bent, cracked or damaged parts
(including labels) are noted.
WARNING
This is the safety alert symbol. It is used to alert you to potential personal injury hazards. Obey all safety
messages that follow this symbol to avoid possible injury or death.
The following safety information is provided as a guideline to help you operate your A/C Vacuum Pump under
the safest possible conditions. Any tool or piece of equipment can be potentially dangerous to use when safety
or safe handling instructions are not known or not followed. The following safety instructions are to provide
the user with the information necessary for safe use and operation. Please read and retain these instructions
for the continued safe use of your service system. Failure to follow instructions listed may result in serious
injury. In addition, make certain that anyone that uses the equipment understands and follows these safety
instructions as well.
03/14
2014 ©OEM-TOOLS
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Oemtools 24500
Summary of Contents for Oemtools 24500
- Page 1 Operating Instructions and Parts Manual 24500 Please read and save these instructions. Read through this owner’s manual carefully before using product. Protect yourself and others by observing all safety information, warnings, and cautions. Failure to comply with instructions could result in personal injury and/or damage to product or property. Please retain instructions for future reference.
- Page 2 DO NOT use the machine until you have first when used on another tool. contacted OEMTools to determine if it can or should be performed on the product. • Tool service must be performed only by qualified repair personnel.
-
Page 3: General Information
DisPosAL • Engine parts that are in motion and unexpected • At the end of the useful life of the OEMTools movement of a vehicle can injure or kill. When A/C Vacuum Pump dispose of the components... - Page 4 Operating Instructions and Parts Manual 24500 1.8 CFM SINGLE STAGE VACUUM PUMP Introduction Thank you for purchasing the OEM A/C vacuum pump series. Our vacuum pumps are ® specifically designed for the air-conditioning and refrigeration service industry. The vacuum pumps utilize an electrical motor and oil filled rotary vacuum pump cartridge construction.
-
Page 5: Specifications
Operating Instructions and Parts Manual 24500 1.8 CFM SINGLE STAGE VACUUM PUMP Specifications Model Number 24500 Stages 1.8 CFM / 1/4 HP Motor Size (HP) RPM @ 50/60Hz 2880 / 3440 Dimensions (Inches) 9.4 x 3.6 x 7.8 Weight 8.1 lb / 3.6 kg Operating Temperature 0˚C (32˚F) to 52˚C (125˚F) -
Page 6: Unit Layout
(Not Shown) Exhaust / Oil Refill Cap Sightglass 1/2" ACME x 1/4" SAE Inlet Port Reinforced Base Oil Drain Oil Reservoir Unit consists of: ® • 24500 model vacuum pump • Vacuum pump oil • Operational manual 03/14 2014 ©OEM-TOOLS... -
Page 7: Initial Preparation
Operating Instructions and Parts Manual 24500 1.8 CFM SINGLE STAGE VACUUM PUMP Initial Preparation 1. Connect vacuum pump to the proper voltage power supply. 2. The vacuum pump is shipped without oil in the reservoir. Remove the exhaust/oil fill cap and add oil until it is seen in the middle of the oil sight glass. Re-secure cap. -
Page 8: Routine Maintenance
Operating Instructions and Parts Manual 24500 1.8 CFM SINGLE STAGE VACUUM PUMP Routine Maintenance It is recommended to change the vacuum pump oil after 50 hours of usage. The purity of the oil will determine the final vacuum level achieved. Always use the recommended vacuum pump oil. -
Page 9: Troubleshooting Chart
Operating Instructions and Parts Manual 24500 1.8 CFM SINGLE STAGE VACUUM PUMP Troubleshooting Chart Condition Possible Problem Solution 1. Bad bearings. 1. Replace motor. 2. Loose motor bolts. 2. Tighten bolts. Unusually noisy 3. Coupling drive. 3. Adjust or replace coupling. -
Page 10: Limited One-Year Warranty
OEMTOOLS for repair or replacement at our discretion. In order to obtain this service send your tool and proof of purchase, transportation pre-paid, to OEMTOOLS Q.A. Dept., 3580 Raines Road #3, Memphis, TN 38118.
