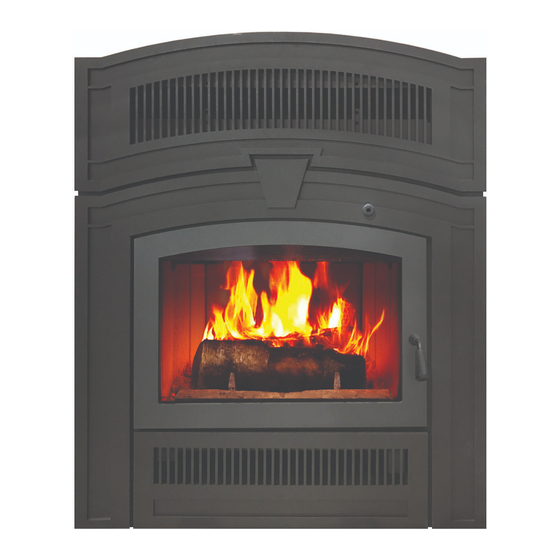

- Page 1 Owner's Manual Residential Factory Built Fireplace Operation • Maintenance • Installation OPEL PLUS KEYSTONE Keep these instructions for future use. Industrial Chimney Company Inc. 400 J.-F. Kennedy, St-Jerome, QC, Canada, J7Y 4B7 Telephone: (450) 565-6336 www.icc-rsf.com RSF-IIPPK_2020-02...
-
Page 2: Table Of Contents
We have designed your new OPEL+ KEYSTONE to be easy to install, operate and maintain. It is in your best interest to become familiar with it. Study your manual to be sure that the installation is correct, then follow the guidelines for operation and maintenance. -
Page 3: Safety First
The chimney should be inspected periodically during the heating season to see if a creosote build-up has occurred. The presence in a chimney of soot or creosote in excess of 1/8" (3mm) thick will indicate the need for immediate cleaning, possible modification of burning procedures, and more frequent inspections. OPEL PLUS KEYSTONE Owner's Manual RSF Woodburning Fireplaces... -
Page 4: General Specifications
THE COMBUSTION CONTROL SYSTEM Since the door is sealed, all combustion air must come through the OPEL+ KEYSTONE's draft control. This control has a bimetal coil to allow more air when the unit is cold, and less air when the unit is hot, guarding against overheating. - Page 5 (FO-KK). It is not designed or required for full brick or stone. Thin materials can also be installed directly on the face of the OPEL+ KEYSTONE using high temperature silicone as glue, without a rock retainer kit.
- Page 6 RISK OF FIRE OR INJURY, DO NOT INSTALL AN UNVENTED GAS LOG SET INTO THIS FIREPLACE. DO NOT INSTALL A GAS LOG LIGHTER BECAUSE THE HEAT PRODUCED BY THE FIREPLACE WILL PERMANENTLY DAMAGE THE GAS LOG LIGHTER. OPEL PLUS KEYSTONE Owner's Manual RSF Woodburning Fireplaces...
-
Page 7: Unit Dimensions And Clearances
Non-combustible hearth extension of hearth extension and spark guard (refer to Table1 (I) and text for particulars) 5/8" Without the Keystone top louver With Keystone top louver Figure 1 Unit Dimensions and Clearances OPEL PLUS KEYSTONE Owner's Manual RSF Woodburning Fireplaces... - Page 8 Table 2 for other installation heights) (refer to the "Installation: Mantel" section for particulars) Minimum distance of combustible wall materials above the fireplace facing from 39 ¼" (997 mm) the firebox opening (other than the combustible mantel shelf, see J and K above) OPEL PLUS KEYSTONE Owner's Manual RSF Woodburning Fireplaces...
-
Page 9: Operation
Outside Air Control The OPEL+ KEYSTONE has been designed to offer you the choice to use outside air or inside air for combustion. You will find a sliding door behind the bottom louver and below the firebox. Push the sliding door towards the back... -
Page 10: Improving Efficiency
Fast burning fires (lots of air) go through much more wood than slow burning fires. To get the most out of your OPEL+ KEYSTONE fireplace, adequately adjust the combustion air control lever at the appropriate time. If the fire seems to be burning too quickly, turn the air down. If the fire is smoldering and there are no visible flames, turn the air up. -
Page 11: Lighting
Between 175°C (350°F) and 700°C (1300°F): the temperature is just right for the catalyst, add more wood as • necessary and keep the bypass closed except for reloading. OPEL PLUS KEYSTONE Owner's Manual RSF Woodburning Fireplaces... -
Page 12: Adjusting The Burn Rate
• • Check all door seals and gaskets to ensure that air is not leaking into the firebox. See “Door Seal” for details of how to verify the tightness fo the door. OPEL PLUS KEYSTONE Owner's Manual RSF Woodburning Fireplaces... -
Page 13: Maintenance
THE FIREPLACE. THEY MAY REMOVE THE PAINT AND MAKE TOUCHUPS DIFFICULT. You can touch up the face of the OPEL+ KEYSTONE with Stove Bright Metallic Black high temperature paint which is available at most fireplaces dealers. Follow the directions outlined on the spray can. DO NOT attempt to paint... -
Page 14: Glass Cleaning
ARE FAR SUPERIOR TO REGULAR GLASS AND OVEN CLEANERS FOR WOOD STOVE APPLICATIONS. FACEPLATE REMOVAL It should not be necessary to remove the faceplate of the OPEL+ KEYSTONE. If for some reason the faceplate of the fireplace must be removed, follow the steps below. -
Page 15: Door Seal
Repeat this procedure along all sides of the door. The most important factor for controlling the burning rate of the OPEL+ KEYSTONE is a good seal on the door gaskets. If the door gaskets are worn or damaged to the point where the seal is not adequate as described above, then remove and replace the gasket(s). -
Page 16: Installation
LOCATION Your OPEL+ KEYSTONE fireplace may be installed in many different ways (see Figure 6) without any special floor reinforcement. We recommend that you take the time to plan your entire installation (fireplace, chimney, and options) before beginning the actual installation (refer to Figure 7 and Figure 8). - Page 17 The framing dimensions are larger than required for ease of installation. Examples shown here are for a Louvered OPEL+ KEYSTONE. The Heat Dump Option will also require an extra 12" on the selected side. Figure 6 Louvered OPEL+ KEYSTONE Framing Examples...
- Page 18 (refer to text for particulars) Electrical and Gas Knock-Outs Cold air trap (optional) Outside Air Inlet (refer to text for particulars) *Refer to text to determine appropriate flashing Figure 7 Louvered OPEL+ KEYSTONE General Installation OPEL PLUS KEYSTONE Owner's Manual RSF Woodburning Fireplaces...
- Page 19 Electrical and Gas Knock-Outs Cold air trap (optional) Outside Air Inlet (refer to text for particulars) *Refer to the text to determine the appropriate flashing Figure 8 OPEL+ KEYSTONE General Installation without the Top Louver OPEL PLUS KEYSTONE Owner's Manual RSF Woodburning Fireplaces...
-
Page 20: Ceiling Clearance
The enclosure walls can be framed with any suitable materials (2x4 or 2x6 studs, plywood, gypsum board, etc.). Because of the high heat output potential of the OPEL+ KEYSTONE, combustible materials must NOT go closer to the fireplace than the standoffs, top, back and sides. -
Page 21: Chimney
This fireplace is certified for use with 7" ICC Model EXCEL chimney only. Please refer to Table 1 (D-E) for the minimum and maximum chimney height permitted with the OPEL+ KEYSTONE fireplace. We recommend that the minimum height be increased by approximately 6" for every 1000' elevation above sea level. -
Page 22: Chimney Installation
7. Place the storm collar over the chimney and flashing. Seal it around the chimney with silicone sealer (DO NOT use roofing tar). 8. Fit the rain cap on the chimney. Secure it tightly in place. OPEL PLUS KEYSTONE Owner's Manual RSF Woodburning Fireplaces... -
Page 23: Offset Chimney
You can also go through the wall at an angle starting directly at the fireplace as depicted in Figure 13. An angled wall insulated radiation shield (XM-7EWRSI30 or XM-7EWRSI45) must be used wherever the chimney passed OPEL PLUS KEYSTONE Owner's Manual RSF Woodburning Fireplaces... -
Page 24: Chase Enclosure
MASONRY CHIMNEY Installing your OPEL+ KEYSTONE fireplace with a masonry chimney still requires using EXCEL chimney from the top of the fireplace to the wall where it will connect to a listed liner that will run up inside the masonry chimney (see Figure 15). - Page 25 Figure 15 Connection to a Masonry Chimney should be fitted inside the clay liner all the way to the top of the masonry chimney. It is not meant to replace the clay liner. OPEL PLUS KEYSTONE Owner's Manual RSF Woodburning Fireplaces...
-
Page 26: Finishing Around The Fireplace
BENEATH HEARTH EXTENSION If the OPEL+ KEYSTONE is installed on a non-combustible floor, the spark guard specified below is not required. Install the spark guard provided (5" x 36" piece of sheet metal) halfway under the fireplace and halfway under the hearth extension and centered on the door opening. -
Page 27: Mantel
Small cracks and wear in the refractory bricks do not require refractory bricks replacement. Replacement need only happen when the refractory bricks have missing pieces (chunks) or when the metal of the firebox is visible through the bricks. OPEL PLUS KEYSTONE Owner's Manual RSF Woodburning Fireplaces... -
Page 28: Gas Log Installation
2. There are a few parts that you need to remove from the OPEL+ KEYSTONE to be able to accommodate a gas firelog. Make sure to store them for safekeeping, you will need to reinstall them all if you ever intend to burn wood again in your OPEL+ KEYSTONE: Remove the round central refractory brick. - Page 29 LOG HAS TO BE LISTED TO ANSI Z21.60/CSA 2.26. THE COMBUSTION AIR CONTROL MUST BE FULLY OPEN WHEN THE GAS LOG IS FUNCTIONING. When operating an OPEL+ KEYSTONE with a gas log installed, make sure to follow the gas log manufacturer operating instructions.
-
Page 30: Listing Label
LISTING LABEL The listing label is glued to the bottom of the fireplace. Just remove the bottom louver, the listing label is below the floor shield. OPEL PLUS KEYSTONE Owner's Manual RSF Woodburning Fireplaces... -
Page 31: Complete Options List
COMPLETE OPTIONS LIST OPEL PLUS KEYSTONE Owner's Manual RSF Woodburning Fireplaces... - Page 32 OPEL PLUS KEYSTONE Owner's Manual RSF Woodburning Fireplaces...
-
Page 33: Configured Options List
CONFIGURED OPTIONS LIST Blocked Top Louver OPEL+ KEYSTONE Required Optional Not available FO-V2 or FO-V3 Gravity Vent Kit Ash Pan Kit FO-AP Blower - Internal FO-FDHB5-N Blower – Central Heat FO-FDHB6-1* Thermostat kit (must be installed before facing and FO-FDHC4... -
Page 34: Replacement Parts
REPLACEMENT PARTS Will be available soon Contact your RSF dealer for information OPEL PLUS KEYSTONE Owner's Manual RSF Woodburning Fireplaces... -
Page 35: Limited Warranty
RSF Woodburning Fireplaces is free of liability for any damages caused by the appliance, as well as material and labor charges incurred in the removal or re-installation of any RSF Woodburning Fireplaces fireplace under this warranty. - Page 36 This warranty is expressly in lieu of all other warranties expressed or implied, including the warranties of merchantability and fitness for use and all other obligations or liabilities on the part of RSF Woodburning Fireplaces. OPEL PLUS KEYSTONE Owner's Manual RSF Woodburning Fireplaces...
