Babyco FLAIR Assembly And Use

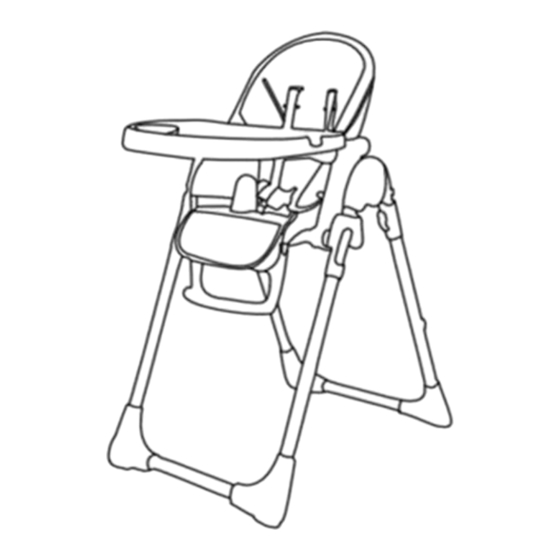

BABYCO FLAIR HIGHCHAIR
Parts
1. Seat angle adjustment lever
2. Harness anchorage holes
3. Seat cover retention hooks
4. Seat height adjustment
5. Frame folding buttons
6. Tray hooks
7. Wheels
8. Five point harness
9. Tray
10. Tray adjustment lever
11. Seat adjustment column
12. Foot rest adjustment
13. Foot rest
14. Legs
Assembly and use
Opening and Seat Height
1. Carefully remove from the box holding by the seat height
adjustment handles. Safely dispose of plastic bags.
2. Pulling the seat levers, hold down the legs to adjust the seat
height. There are 7 height settings. Release the levers and check
the seat is locked into position. Pressing the side buttons, open
the highchair.
Installing Tray
1. To fit the tray, pull the central lever underneath it towards you
while at the same time pushing it all the way into the armrests
(See Arrow)
2. To extend or remove the tray, pull the central lever underneath
it towards you. Adjust the tray to the desired position. To remove
the tray, pull the central lever and pull the tray towards you until
removed.
3. Tray can be stored on brackets provided on the rear legs.
4. The highchair has a double tray. The top tray can be easily
washed with non-abrasive detergent.
