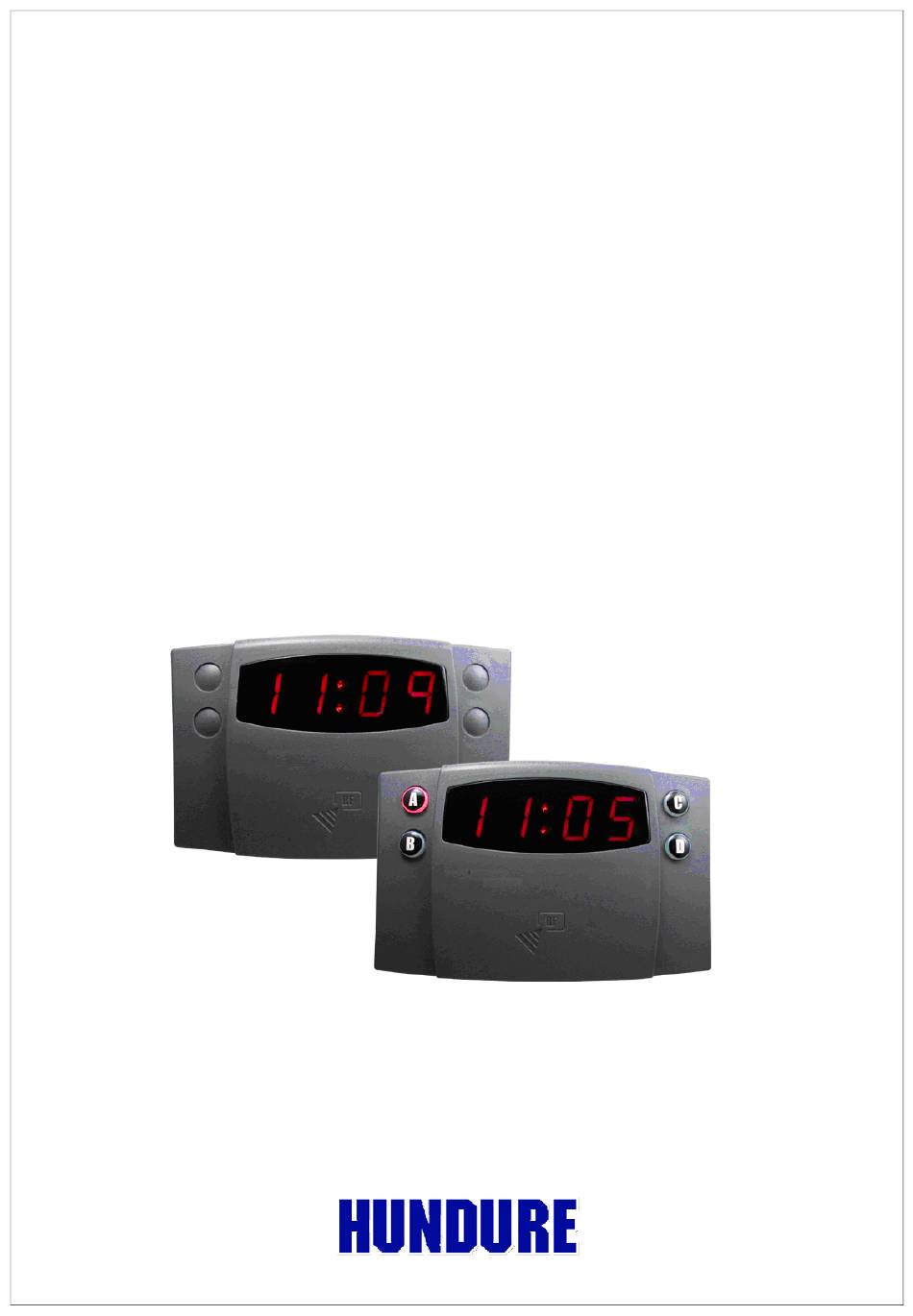

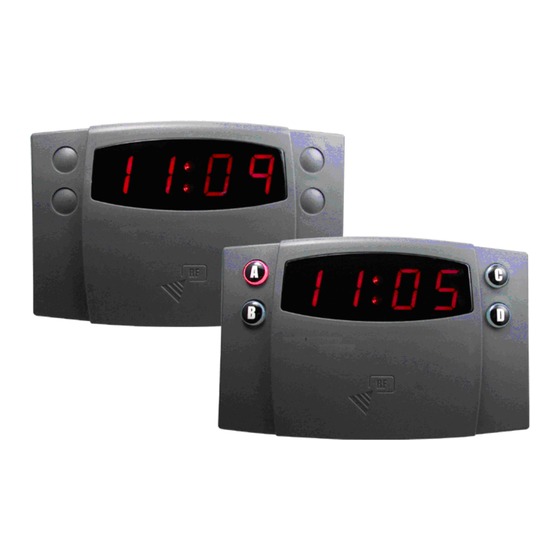

- Page 1 HTA-810PE/PM HTA-820PE/PM Time & Attendance Recorder Hardware Manual Version 1.1...
-
Page 2: Table Of Contents
Chapter 4 Installation Guide ....................12 Chapter 5 Testing ......................13 Chapter 6 Troubleshooting ....................14 Appendix..........................15 Appendix1: Error Message Codes................15 Appendix2: Set Controller IP by Tool................16 Revision History Version Description V1.0 First Edition V1.1 Manual format revision HUNDURE HTA-810/20 PE/PM Hardware manual... -
Page 3: Chapter 1 Product Overview
Chapter 1 Product Overview 1.1 Package Contents Controller x 1 Base x 1 Adaptor x 1 DC Jack Converter x 1 (Option) Hex key wrench x 1 Screw x 4 Cable x 1 Quick Start Guide x 1 HUNDURE HTA-810/20 PE/PM Hardware manual... -
Page 4: Features
Invalid & re-swiped cards off-the-record saves memory capacity. Memory full warning. At least 60 days data storage in case of power outage. RTC (Real Time Clock) ensures accurate time regardless of power outage. Watchdog function ensures device free from halting. HUNDURE HTA-810/20 PE/PM Hardware manual... -
Page 5: Specifications
Comm. Baud Rate 1,200/2,400/4,800/9,600/19,200 bps-N-8-1 Operating Temp. -10° C ~ 55° C / 14° F ~ 131° F Relative Humidity 20% ~ 80% (Non-condensing) Dimension 160mm(L) x 100mm (W) x 40mm (H) (excluding base) Weight (Device) 300g HUNDURE HTA-810/20 PE/PM Hardware manual... -
Page 6: Chapter 2 Physical Dimension
Chapter 2 Physical Dimension 2.1 Dimension Scale:mm HUNDURE HTA-810/20 PE/PM Hardware manual... -
Page 7: Appearance Introduction
Green LED blinks upon swipe of Swipe Card valid card; Red LED blinks when Indication LED invalid card is swiped. Card Sensor Area Card sensor Note 1: This area is card-swiping slot for magnetic models (HTA-810M/HTA-820M) or barcode models(HTA-810B/HTA820B). HUNDURE HTA-810/20 PE/PM Hardware manual... -
Page 8: Chapter 3 System Configuration & Wire Connections
Chapter 3 System Configuration & Wire Connections 3.1 System Configuration HUNDURE HTA-810/20 PE/PM Hardware manual... -
Page 9: Wire Connections
3.2 Wire Connections 3.2.1 Controller Terminal Introduction Description DC 12V Input Communication Siren Relay Output “COM” Siren Relay Output “NO” Siren Relay Output “NC” COM: Common contact NC:Norrmally closed NO:Normally open. HUNDURE HTA-810/20 PE/PM Hardware manual... -
Page 10: Siren/Alarm Connection
3.2.2 Siren/Alarm Connection N.O. N.C. 3.2.3 RS232/RS485 Communication Port RS-485+ RS-485- RS-232RX RS-232TX NC(N/A) HUNDURE HTA-810/20 PE/PM Hardware manual... -
Page 11: Rs485 Wiring Connection
3.2.3.1 RS485 Wiring Connection Note: Assign different IDs for each HTA-810/820 recorder when there are more than one recorders in the network. Default ID is “1” Set your ID with our software. 3.2.3.2 RS-232 Wiring Connection HUNDURE HTA-810/20 PE/PM Hardware manual... -
Page 12: Power Supply Connection
3.2.4 Power Supply Connection Turn to the back side of HTA-810/820 and connect DC12V/1A power to the power jack connector. HUNDURE HTA-810/20 PE/PM Hardware manual... -
Page 13: Chapter 4 Installation Guide
(C). Install the controller upper cover to the back base. (D). Mask sure the back base and the controller upper cover guides are aligned. (E). Using the hex key wrench, fasten the screw onto the bottom of controller. HUNDURE HTA-810/20 PE/PM Hardware manual... -
Page 14: Chapter 5 Testing
(Baud Rate: 9600 bps) 5.The device displays “Time” for ready mode. (Ready Mode) 6.When user swipes the card, the device shows the last 4 digits of the card number. (Swipe card, displaying last 4 digits.) HUNDURE HTA-810/20 PE/PM Hardware manual... -
Page 15: Chapter 6 Troubleshooting
4.Make sure the right side of the card is used. Q: There is a response after swiping card, but “Err” or “bad code” appears. A: Please refer to Appendix 1 for the Error codes descriptions. Contact your dealer if you find bad codes. HUNDURE HTA-810/20 PE/PM Hardware manual... -
Page 16: Appendix
Cannot save invalid card Err1 Re-swipe of card within a limited time prohibited Err2 Card number contains non-numeric character under compression mode. Err3 Cannot overwrite, memory full Full Memory buffer 90% full Err A~d Retrieve Invalid Code HUNDURE HTA-810/20 PE/PM Hardware manual... -
Page 17: Appendix2: Set Controller Ip By Tool
MAC ID (Media Access Control Identification): It serves as unique identifier of the device connected over the network. This fixed identification number is set from the factory and is not allowed to be modified. HUNDURE HTA-810/20 PE/PM Hardware manual... - Page 18 C-1 Shut down firewall C-2 Double click HTA830Tools.exe to execute program. C-3 Click on “Search” button to locate the devices over the network. Returned results will be shown in the device list area. Kindly refer to follow figure： HUNDURE HTA-810/20 PE/PM Hardware manual...
- Page 19 If found devices have the same IP addresses, kindly differentiate each using their MAC ID。 C-4 Select a device as shown below: C-5 Current settings of the selected device will be displayed in the ”New” settings area. To modify it, overwrite the parameters： HUNDURE HTA-810/20 PE/PM Hardware manual...
- Page 20 BaudRate：Definition by different devices. Kindly inquire the necessary information about the network environment from your IT personnel. All parameter settings should be the same with the system in order to establish connection with the devices. HUNDURE HTA-810/20 PE/PM Hardware manual...
- Page 21 “Broadcast Setup” is applicable when devices are connected under the same network. However, if the program and device belong to different network or if connection cannot be established due to network barriers, kindly use “Connect Setup” button to set the parameters.。 HUNDURE HTA-810/20 PE/PM Hardware manual...
- Page 22 C-7 Upon completion of the settings, the device will automatically restart and temporarily disconnects from the network. Kindly wait for 10-20 sec. before searching the device again. Check if the parameters are correct and successfully modified. HUNDURE HTA-810/20 PE/PM Hardware manual...
- Page 23 In no event shall manufacturer’s liability exceed the price paid for the product from direct, indirect, special, incidental, or consequential, damages resulting from the use of the product, its accompanying software, or it’s documentation. Hundure makes no warranty or representation expressed, implied, or statutory, with respect to its products, contents of use of this documentation and all accompanying software, and specially disclaims its quality, performance, merchantability or fitness for any particular purpose.
