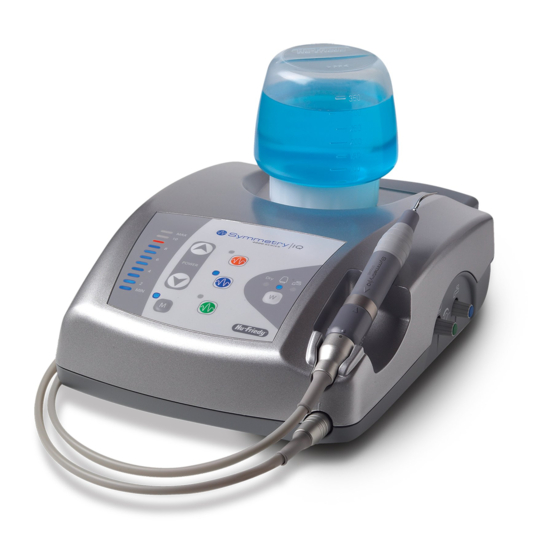

INTRODUCTION
Thank you for purchasing the Symmetry IQ product. This product is intended for use by dental
professionals only. This device generates ultrasonic vibrations intended for use in dental applications
such as scaling, periodontal therapy, root canal treatment and cavity preparation. Read this operation
manual carefully before use and retain for reference.
PRODUCT FEATURES AND BENEFITS
• Compact, lightweight device.
• Three color-coded selectable and adjustable pre-defined power modes for a variety of dental procedures.
• Easy to read digital display for trouble-free operation.
• Convenient memory feature to store frequently used operational settings.
• Fiber-optic handpiece to enhance visibility.
• Lightweight, large diameter handpiece encourages a light grasp to reduce operator fatigue.
• Soft, textured silicone finger grip for clinical comfort and control.
• Autoclavable handpiece for infection control.
• Durable, lightweight handpiece cord.
• Two methods of irrigation are available (dental unit/city water and irrigation bottle). The selection of no
irrigation is also an option.
• Irrigation tube is isolated within the control unit to prevent solution from coming in contact with the
electronics of the unit.
• Two irrigation bottles for use with the IQ 4000 unit.
• Easy to clean design to minimize the risk of cross-contamination.

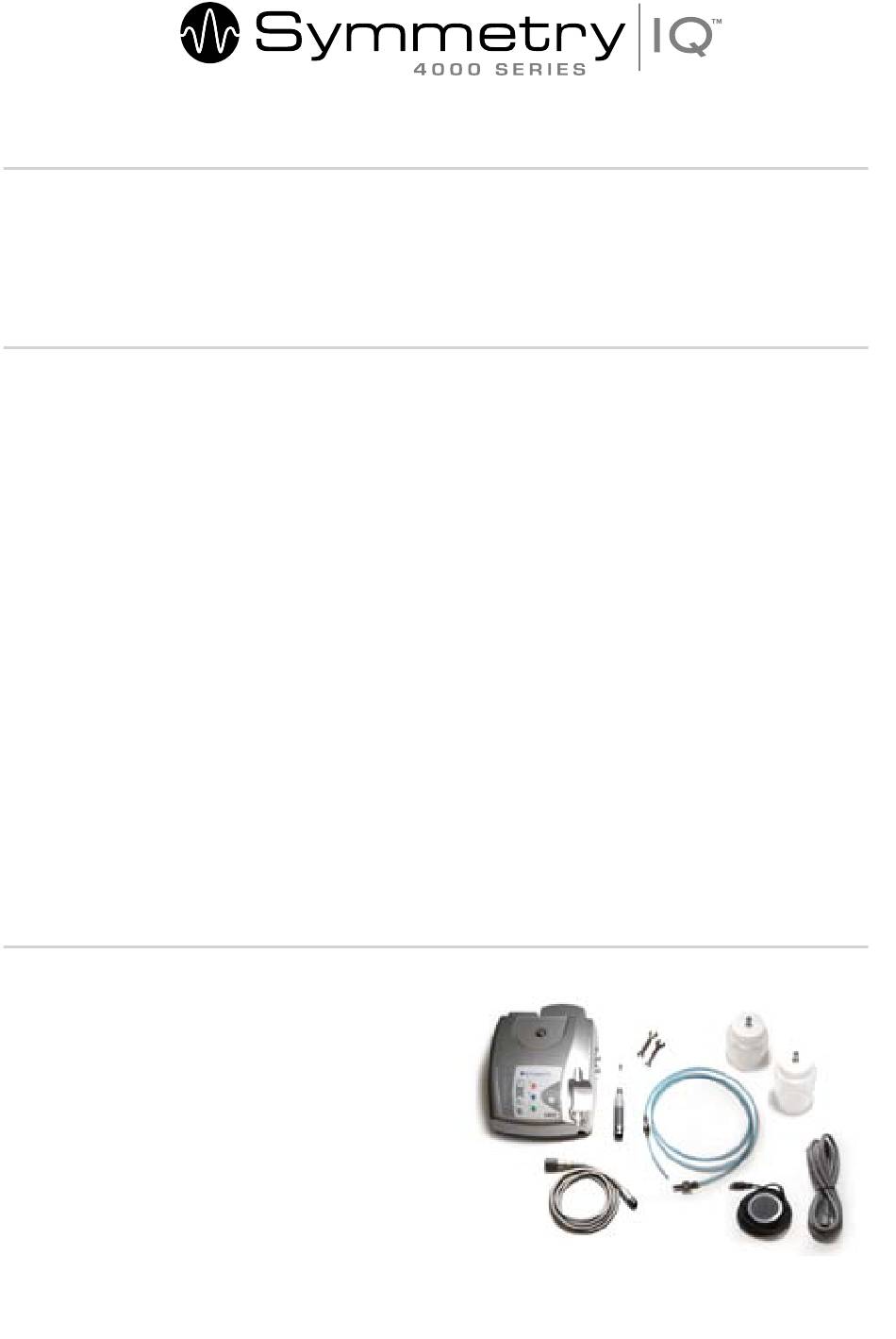

COMPONENT PARTS
1.
Control Unit
2.
Symmetry IQ Fiber-optic Handpiece
3.
Replacement Bulb
4.
Water Tube
5.
Symmetry IQ Fiber-optic Handpiece Cord
6.
Spanner Wrench (5X8) – 2 pieces
7.
Foot Control
8.
AC Power Cord
9.
Irrigation Connector (AC 120V Only)
10.
Irrigation Bottles – 2 pieces
11.
O-rings for irrigation bottles (not pictured)
12.
Tip Wear Guide (not pictured)
13.
Power Range Guide (not pictured)
14.
Three Symmetry S-Series Tips (not pictured)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Symmetry IQ 4000 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Hu-Friedy Symmetry IQ 4000 Series

Summary of Contents for Hu-Friedy Symmetry IQ 4000 Series

  • Page 1 INTRODUCTION Thank you for purchasing the Symmetry IQ product. This product is intended for use by dental professionals only. This device generates ultrasonic vibrations intended for use in dental applications such as scaling, periodontal therapy, root canal treatment and cavity preparation. Read this operation manual carefully before use and retain for reference.
  • Page 2 SYMBOLS AND GENERAL SAFETY Risk of damage or harm Type BF applied part Attention, consult accompanying documents Sterilizable up to 135˚C City Water Foot Control Irrigation Bottle Power Plug CE marking: Refers to Dispose of this device and its accessories via directive 93/42 EEC, methods approved for electronic devices and including EN 60601-1...
  • Page 3 • Users are responsible for operation control, maintenance and inspection. • Store at -10˚-60˚C (14˚-140˚F), relative humidity at 10-85%RH, atmospheric pressure at 500-1060hPa. Do not subject system to dust, sulfur or salinity. • Contact dealer or Hu-Friedy Mfg. Co. if problems occur.

  • Page 4: Guidance And Manufacturer's Declaration - Electromagnetic Immunity

    ELECTROMAGNETIC IMMUNITY The Symmetry IQ 4000 Series is intended for use in the electromagnetic environment specified below. The customer or the user of the Symmetry IQ 4000 Series should assure that it is used in such an environment. Immunity Test...
  • Page 5 To assess the electromagnetic environment due to fixed RF transmitters, an electromagnetic site survey should be considered. If the measured field strength in the location in which the SYMMETRY IQ 4000 SERIES is used exceeds the applicable RF compliance level above, the SYMMETRY IQ 4000 SERIES should be observed to verify normal operation.
  • Page 6 ELECTROMAGNETIC IMMUNITY The Symmetry IQ 4000 Series is intended for use in the electromagnetic environment specified below. The customer or the user of the Symmetry IQ 4000 Series should assure that it is used in such an environment. Emissions test...
  • Page 7 AND THE SYMMETRY Iq 4000 SERIES The Symmetry IQ 4000 Series is intended for use in an electromagnetic environment in which radiated RF disturbances are controlled. The customer or the user of the SYMMETRY IQ 4000 SERIES can help prevent...

  • Page 8: Installation And Assembly

    INSTALLATION AND ASSEMBLY 1. Unpacking the Device Upon receipt please check device for any damage caused in transit. If necessary, contact your dealer. 2. general recommenDations Connect the Symmetry IQ 4000 control unit to electric supply in accordance with current standards. The water supply system should be of adequate quality for the practice of dental treatment. Additionally, the city water supply should be equipped with a cut-off system.

  • Page 9: Power Cord Connection

    4. Foot control connection Connect the foot control plug to the foot control connector at the back of the control unit. (Fig. 6) Align the marks on the foot control cord and on cowl located on the back of the unit. Take care to properly align all the pins. Push the plug gently into the connector..

  • Page 10: Operating Procedures

    Do not put highly acidic liquids in the irrigation bottle. A list of approved liquids is available upon request or you can visit www.hu-friedy.com. 2. tip connection Your Hu-Friedy Symmetry S-Series piezo tip comes with its own tip carrier/torque limiting wrench (the Guardian wrench, Fig. 10).

  • Page 11: Operation Mode Selection

    ORANGE 5. operation moDe selection Select the appropriate mode for procedure with the mode selection keys on the front panel. The light below the selected mode will illuminate. BLUE NOTICE: Color of the Guardian (torque limiting wrench/tip carrier) indicates the primary application mode on the Symmetry IQ 4000 unit. Please use as follows: •...

  • Page 12: Safety Function

    9. When treatment is completeD • Release the foot control and replace the handpiece in the handpiece holder. (Fig. 15) • Turn off the power switch. • If using city water , close the dental unit’s water valve. • If using irrigation bottle , thoroughly wash the irrigation bottle water supply system.

  • Page 13: Maintenance Of The Control Unit

    6. Do not expose to phenols, iodophors or dry heat sterilization.* * Detailed care and maintenance instructions are available upon request or go to www.hu-friedy.com CAUTION: Do not place the handpiece on the bottom shelf of the sterilizer. To prevent exposure to excess heat, place handpiece and tips on the middle and top shelves of the sterilizer.
  • Page 14 1. Pull straight up on the irrigation bottle to remove the bottle from the control unit. 2. Fill a spare bottle with at least 175ml with clear distilled water. 3. Place the cap on the bottle, check the irrigating bottle connector opening and surrounding area of the control unit and clean as necessary.

  • Page 15: Changing Water Filter

    changing the o-ring on the irrigation bottle Remove two O-rings at the bottle joint with a pointed instrument, and place new ones into the grooves. (Fig. 20) Optional O-ring : Order No. UP4ORINGS changing the irrigation pUmp (Use of Irrigation Bottle) Remove the irrigation bottle by pulling straight up. Remove the irrigation pump cover.

  • Page 16: Replacing The Fuse

    cleaning Fiber-optic light Wipe debris off the end of the optic fibers at the handpiece with an alcohol soaked cotton swab. (Fig. 26) CAUTION: Do not use any sharp pointed tools to clean the optic fiber end face. In case the light becomes dim, contact your dealer.

  • Page 17: Disposal And Recycling

    SERVICE Please send your Symmetry IQ 4000 to your dealer or an authorized Hu-Friedy repair center. Shipping your product in its original packaging will offer the best protection against damage during shipping. If sending directly to an authorized Hu-Friedy repair center, please include the name and address of your dealer. All items must be cleaned, disinfected and sterilized as described in the operating instructions before shipment.

  • Page 18: Troubleshooting

    Check the power supply to the dental office. is switched on. The internal fuse has burned out. Contact your dealer or Hu-Friedy. No/poor ultrasonic The tip is not tightened firmly. Tighten the tip with the Guardian wrench until you hear vibration and handpiece a click.
  • Page 19 Mount the lamp correctly and securely. engaged in the socket. The lamp is burned out. Replace the lamp. Failure of the control unit. Contact your dealer or Hu-Friedy. Loss of power output Safety function is activated. Power output will weaken automatically after 10 without operation.
  • Page 20 GUARANTEE Hu-Friedy, at its sole option, will repair or replace for a period of one year following the date of the first purchase as a new item, any Symmetry IQ piezo generator unit (“Unit”) that fails as a result of a defect in materials or workmanship.
  • Page 21 Country: Number of Practitioners In Practice: Dentists Hygienists Assistants Dental Specialty: Dealer Name: U.S. and Canada: Europe: symmetry iQ 4000 registration symmetry iQ 4000 registration Hu-Friedy Mfg. Co., Inc. Hu-Friedy Mfg. Co., Inc. 3232 North Rockwell Street Zweigniederlassung Deutschland Chicago, IL 60618 Rudolf-Diesel-Str. 8 D-69181 Leimen...
