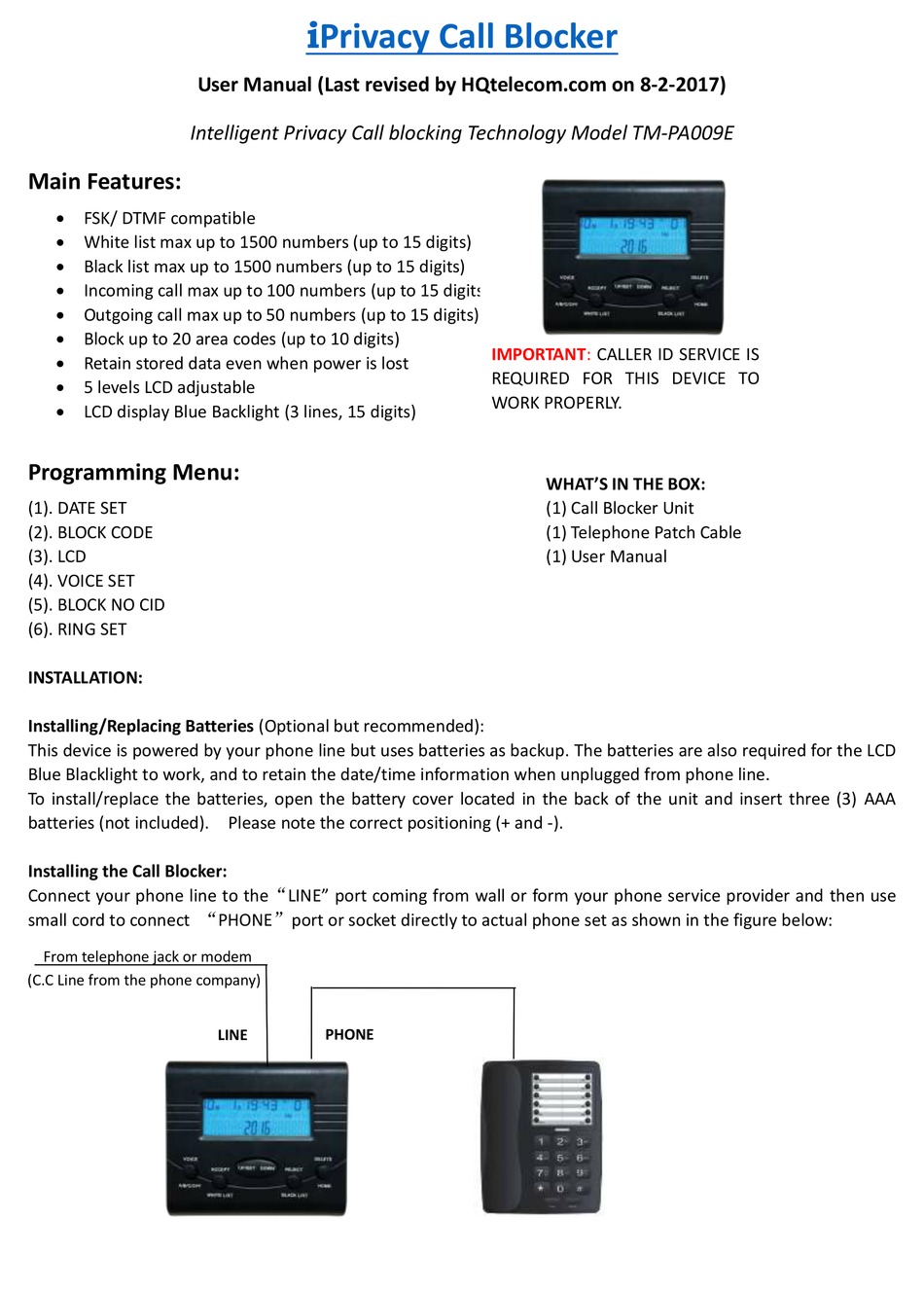

Intelligent Privacy Call blocking Technology Model TM-PA009E

Main Features:

 FSK/ DTMF compatible
 White list max up to 1500 numbers (up to 15 digits)
 Black list max up to 1500 numbers (up to 15 digits)
 Incoming call max up to 100 numbers (up to 15 digits)
 Outgoing call max up to 50 numbers (up to 15 digits)
 Block up to 20 area codes (up to 10 digits)
 Retain stored data even when power is lost
 5 levels LCD adjustable
 LCD display Blue Backlight (3 lines, 15 digits)
(1). DATE SET
(2). BLOCK CODE
(3). LCD
(4). VOICE SET
(5). BLOCK NO CID
(6). RING SET

INSTALLATION:

Installing/Replacing Batteries (Optional but recommended):
This device is powered by your phone line but uses batteries as backup. The batteries are also required for the LCD
Blue Blacklight to work, and to retain the date/time information when unplugged from phone line.
To install/replace the batteries, open the battery cover located in the back of the unit and insert three (3) AAA
batteries (not included). Please note the correct positioning (+ and -).
Installing the Call Blocker:
Connect your phone line to the"LINE" port coming from wall or form your phone service provider and then use
small cord to connect "PHONE"port or socket directly to actual phone set as shown in the figure below:
From telephone jack or modem
(C.C Line from the phone company)
iPrivacy Call Blocker
User Manual (Last revised by HQtelecom.com on 8-2-2017)
LINE
PHONE
IMPORTANT:
CALLER ID SERVICE IS
REQUIRED FOR THIS DEVICE TO
WORK PROPERLY.
WHAT'S IN THE BOX:
(1) Call Blocker Unit
(1) Telephone Patch Cable
(1) User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the iPrivacy TM-PA009E and is the answer not in the manual?

Questions and answers

Related Manuals for HQTELECOM iPrivacy TM-PA009E

Summary of Contents for HQTELECOM iPrivacy TM-PA009E

  • Page 1 Call Blocker User Manual (Last revised by HQtelecom.com on 8-2-2017) Intelligent Privacy Call blocking Technology Model TM-PA009E Main Features:  FSK/ DTMF compatible  White list max up to 1500 numbers (up to 15 digits)  Black list max up to 1500 numbers (up to 15 digits) ...
  • Page 2 PROGRAMMING PREPARATION: Before programming your call blocker, you will need the following: 1) A telephone handset connected on the PHONE socket of the Call Blocker. 2) You also need to be able to hear dialtone through the connected handset. You will need to use your handset’s dialpad to program your call blocker.
  • Page 3 When in standby mood, please press the〖WHITE LIST〗 button to review all white list numbers, the LCD screen would display the white list content. Press 〖UP/SET〗 and 〖DOWN〗 buttons to review all white list numbers (up and down). 8) Deleting White List numbers While browsing the White list (as shown above), press the 〖DELETE/HOME〗button two times within 1 second to delete that group number, or press and hold the〖DELETE/HOME〗button for 3 seconds to delete all white list numbers.
  • Page 4 To reset your call blocker (erase all settings as ‘factory reset’), lift off the handset of the phone connected on the phone port of the blocker and press *#018# -- The display should display “erased”. For additional information or support on the iPrivacy Call Blocker, please contact www.hqtelecom.com.
