PART LIST
NO.
Name
Socket cap screw
1
Carbon fiber tube- ARM
2
Motor base
3
Slide bar
4
Battery mounting board
5
Battery Pad
6
Pylons
7
Cross countersunk head screw
8
PAN/TILT platform board
9
Hanger rubber ring gasket
10
Hanger
11
Carbon fiber - Bottom plate
12
Socket cap screw
13
Nylon stud
14
Nylon screw
15
Carbon fiber - Top plate
16
Pan head screw
17
Nylon strap
18
Nylon nut
19
Locknut
20
Socket cap screw
21
Landing gear- Vertical pole
22
Landing gear- Cross bar
23

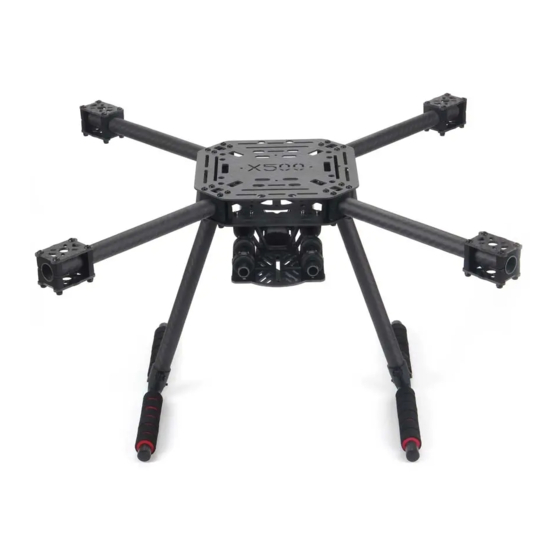

X500 Frame Kit
Assembly Guide
Used for motor fixing, stainless steel screw M3*5
Diameter: 16mm length: 200mm
Consists of 6 parts and 4 screws 4 nuts
Diameter: 10mm length: 250mm
Thickness: 2mm
3mm
Engineering plastic embedded with copper nut
Stainless steel M2.5*5mm
Thickness: 2mm
Inner hole diameter: 10mm black
Engineering plastic embedded with copper nut
The thickness of 2mm
Stainless steel M2.5*6mm
Black M3*6+6
Black M3*6
Thickness: 1.5mm
Metal black M3*30mm
U- shape, of 16mm carbon fiber tube
Black M3
Metal black M3
Metal black M3*8mm
Carbon fiber tube+engineering plastic+fastener
Composed of carbon fiber tube and multiple parts
Spec
Silicon sheet black
Qty(pcs)
16
4
4
2
1
1
2
12
1
8
8
1
8
4
4
1
16
16
4
16
8
2
2
