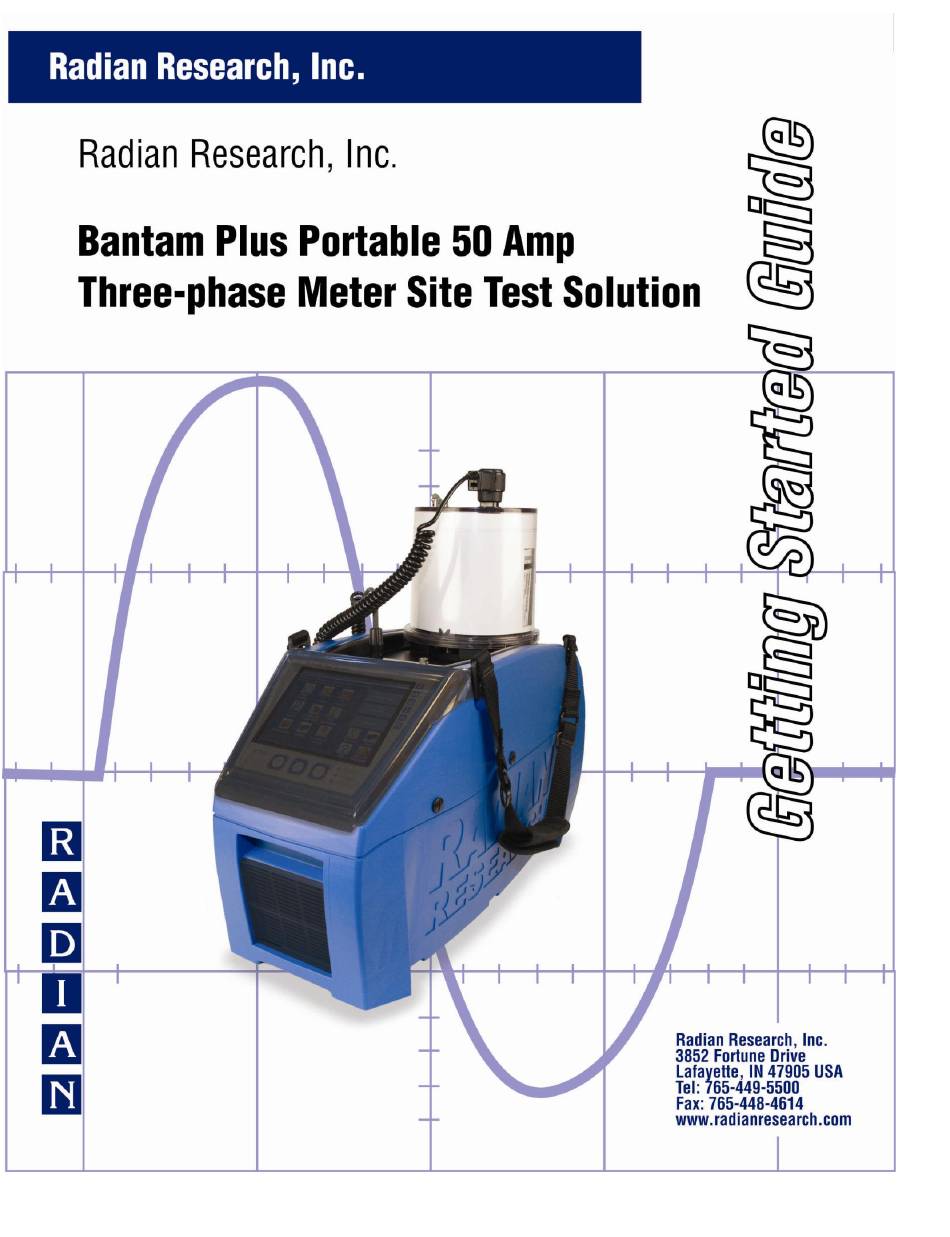

Radian Bantam Plus RB-2 Series Getting Started Manual

Portable 50 amp three-phase meter site test solution
Hide thumbs
Table of Contents

Advertisement

Quick Links

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Bantam Plus RB-2 Series and is the answer not in the manual?

Questions and answers

Related Manuals for Radian Bantam Plus RB-2 Series

Summary of Contents for Radian Bantam Plus RB-2 Series

  • Page 2 The information contained in this getting started guide remains the property of Radian Research, Inc. It is provided in good faith for the operation and servicing of this Radian Research, Inc. product. We reserve the right to take legal action where this information is divulged to third parties without our written consent or in circumstances that may cause us commercial harm.

  • Page 3: Table Of Contents

    Table of Contents About This Getting Started Guide ................... 6 1 Product Introduction and Specifications................6 1.1 Product Overview ......................6 1.2 Optional Accessories ......................8 1.3 Product Features ......................11 1.3.1 RB-20 Portable Test System ..................... 11 1.3.2 RB-2X Embedded Winboard Software ..................11 1.4 Safety Information ......................12 1.4.1 General Safety Summary ......................
  • Page 4 8.1 Contact Information ......................41 8.2 Routine Maintenance .......................41 8.3 Service ..........................42 8.3.1 Service ............................42 8.3.2 Warranty Service ........................43 8.3.3 After-Warranty Service ....................... 44 8.4 Helpful Documentation and Resources ................45 Bantam Plus Getting Started Guide v6 Radian Research, Inc.
  • Page 5 Figure 13 RB-2x Utilities Application View………………………………………………………………………36 Figure 14 Site Information Application View……………………………………………………………………..38 Figure 15 View of the Meter Test screen with the Data View enabled to view or edit meter information…………………………………………………………………………………………………………..39 Figure 16 Removable Socket Liners……………………………………………………………………….…….42 Bantam Plus Getting Started Guide v6 Radian Research, Inc.

  • Page 6: About This Getting Started Guide

    1.5 Specifications 1.1 Product Overview The Radian Research, Inc. Bantam Plus Portable Test System is designed for fast and accurate testing of electricity meters. The Bantam Plus combines advanced capabilities of an automated meter socket, the accuracy of a Radian reference standard as well as the embedded Winboard automated test software to provide a lightweight, easy-to-use test system.

  • Page 7: Figure 1 Rb-2X Bantam Plus Portable Test System

    & options. Touch Screen color display Automated Meter Test Socket display. Status Indicators Automated Meter Test Socket Sound control keyboard display. Figure 1 RB-2X Bantam Plus Portable Test System Bantam Plus Getting Started Guide v6 Radian Research, Inc.

  • Page 8: Optional Accessories

    Mount The most versatile three in one meter pulse sensor assembly enables meters to be tested in the socket. RB-OPTOCOM OPTOCOM Optics Kit – Port 1 Used for meters that requires communication via Optocom interface. Bantam Plus Getting Started Guide v6 Radian Research, Inc.
  • Page 9 RB-MAG Magnetic Mount Optics Kit RB-BPH Back Pack carry harness RB-BAG Nylon Accessories Bag 12(l) x 8(h) x 5(w) inch. Bantam Plus Getting Started Guide v6 Radian Research, Inc.
  • Page 10 Faceplate information and run meter tests automatically from a barcode scanner. RB-SCI RB-2x to RS Calibration System Interface Kit Used for interface to a Radian Syntron System for calibration purposes. RB-SCA RB-2x to RD-2x Standards Compare Adapter Used to interface with an external RD for calibration purposes.

  • Page 11: Product Features

     Create/Edit test sequences for meter forms  Align Optics  Standards Compare test routines  Storage capacity is limited by the installed 120GByte solid state hard drive.  Create/Edit test reports  Maintain customer records Bantam Plus Getting Started Guide v6 Radian Research, Inc.

  • Page 12: Safety Information

     Handle the RB-2X Bantam Plus Portable Test System with care; it is a precision instrument.  Inspect the equipment before each use. Do not use the equipment if damage is observed.  Use only cables provided by Radian Research, Inc. Bantam Plus Getting Started Guide v6 Radian Research, Inc.

  • Page 13: Symbols Found On The Equipment

    Indicates a potentially hazardous situation that AUTION can result in an injury or equipment damage. Indicates important information you should review  before proceeding. Bantam Plus Getting Started Guide v6 Radian Research, Inc.

  • Page 14: Specifications

    Water resistance Not airtight or watertight Supplied Cable 10 ft RB-SPC Shop Power Cable & RB-FPC Field Power Length Cable terminated with alligator clips Cable type Three core power cable with ground Bantam Plus Getting Started Guide v6 Radian Research, Inc.

  • Page 15: Rb-2X I/O Connection

    RB-TSBR1 CT Ratio & Burden adapter. Advanced I/O This connector is assigned for testing meters with KYZ (Model RB-KYZ10). The Advanced I/O connector provides many capabilities for the testing of solid state meter. It can Bantam Plus Getting Started Guide v6 Radian Research, Inc.
  • Page 16 Two USB connectors are available for use with peripherals including memory drives, remote keyboard or mouse, wireless adapters, etc. Ethernet 10/100 Ethernet connection that can be used to connect the Bantam Plus to a local area network. Bantam Plus Getting Started Guide v6 Radian Research, Inc.

  • Page 17: Operation Preparation

    RB-2X Bantam Plus Portable Test System reaches you in perfect condition. Your satisfaction is very important to us, and your continued loyalty is greatly appreciated. If for any reason your Radian product does not meet your expectations of exceptional performance, please contact your sales representative or Radian Research, Inc.

  • Page 18: Preparing Equipment For Use

    WATT-Net PC Software (Base) CD and Getting Started Guide ( see Figure 2) o Calibration report(s) o Bantam Plus Getting Started Guide o Optional accessories (maybe packaged separately) (see Section 1.2 Bantam Plus Getting Started Guide v6 Radian Research, Inc.
  • Page 19 If you wish to customize the fields or are already using WATT-Net within your organization you may purchase optional customization packages. For more information on customization contact your Radian representative or Radian directly at 765-449-5500. If you intend to purchase optional software ...
  • Page 20 4. Register your equipment (see Section 2.1.3, Registering Your Equipment) to:  Activate the equipment warranty.  Receive firmware and software updates as well as product application notes from Radian Research, Inc. You must register your equipment at  www.radianresearch.com/reg to activate the two- year equipment warranty.

  • Page 21: Registering Your Equipment

    Line & Ground Input, ON/OFF Double pole 300 VAC max. 5 Amp Breaker Switch Model & Serial Number Label Figure 3 RB-2X Bantam Plus Portable test system rear panel nameplate containing equipment serial number Bantam Plus Getting Started Guide v6 Radian Research, Inc.

  • Page 22: Operational Considerations

     Power: The RB-2X Bantam Plus Portable Test System requires a source capable of providing at least 250 W of continuous power to operate correctly. Periodically inspect and clean removable filter Figure 4 RB-2X Bantam Plus Portable Test System Cooling Vents Bantam Plus Getting Started Guide v6 Radian Research, Inc.

  • Page 23: Product Features

    3. Front Panel Voltage & Current Indicator: Red and Yellow LEDs will activate when Voltage and/or Current is applied to the integrated meter socket. Bantam Plus Getting Started Guide v6 Radian Research, Inc.
  • Page 24 (external PC required). This connector may also be used for custom pickups as required. Contact Radian for any special needs that may not be met by the standard set of pickups.
  • Page 25 10. Ethernet Interface: A 10/100 Ethernet connection that can be used to connect the Bantam Plus to a local area network. This can be very useful for transferring test results from the Bantam Plus to a central database. Bantam Plus Getting Started Guide v6 Radian Research, Inc.

  • Page 26: Touch Screen Display

    Inter To perform a right click using a stylus, Click stylus to the touch screen and hold it in place for a few seconds. fans activ swit chin line volt Bantam Plus Getting Started Guide v6 Radian Research, Inc.

  • Page 27: Figure 6 Touch Screen Keyboard

    Figure 6 Touch Screen Keyboard Figure 7 Numeric Screen Keyboard Figure 8 Windows Screen Keyboard Bantam Plus Getting Started Guide v6 Radian Research, Inc.

  • Page 28: Operations Overview

    2. Make sure the potential is between 90 and 300 volts line 3. Connect the green Field Safety Ground Cable through the ground terminal and volt tighten down the terminal. Make sure the ground cable is secure before continuing. Bantam Plus Getting Started Guide v6 Radian Research, Inc. then...
  • Page 29 7. When the last connection is made and the switch/breaker is turned on the unit will power up and the Bantam Plus software will automatically launch. Always disconnect the ground connector last.  Failure to do so can result in equipment damage or personal injury. Bantam Plus Getting Started Guide v6 Radian Research, Inc.

  • Page 30: Conducting A Meter Test With The Bantam Plus Integrated Socket

    Profile Before powering down the from the Edit Profile key Bantam Plus Select and stored in non volatile ‘Shutdown to exit Windows RAM. Figure 9 Bantam Plus Screen Tour Bantam Plus Getting Started Guide v6 Radian Research, Inc.
  • Page 31 „Adjust Optics‟ button from the screen soft menu. Physically align the Sensor over the Meter Pulse output. During alignment view the flashing Red LED in the rear of the „Sensor Pro‟ head for visible activity. Bantam Plus Getting Started Guide v6 Radian Research, Inc.
  • Page 32 Indicate source Revolutions or Pulses Voltage, Current and remaining in current Phase applied to meter test Step. Status bar will indicates test status Figure 11 Bantam Plus Run Test Screen Bantam Plus Getting Started Guide v6 Radian Research, Inc.
  • Page 33 “AS LEFT” field. 10. To cancel a meter test at any time select “CANCEL” from the display softkey. 11. Results may be viewed from the Administration Application see section 5.1 Bantam Plus Getting Started Guide v6 Radian Research, Inc.

  • Page 34: Meter Test Using Meter Test Adapter (Rb-Mta) Option

    The RR-MTA option is specified to operate to a maximum of 20 Amps. No  damage will occur if >20 Amps is delivered. However, the cable length will have appreciable burden and may not deliver the full rated current. Bantam Plus Getting Started Guide v6 Radian Research, Inc.

  • Page 35: Rb-2X Administration Application

    5.1.2 Edit Test Sequences: to view, add, edit, delete, import or export test Sequences. 5.1.3 View/Edit Test Results: allows the operator to access test results that have previously been saved to the Bantam Plus. Bantam Plus Getting Started Guide v6 Radian Research, Inc.
  • Page 36 5.1.8 Edit Meter Setup: screen allows you to customize many important power generation functions. 5.1.9 Options: screen allows you to change the displayed color scheme and Network Options including TCP/IP address. Bantam Plus Getting Started Guide v6 Radian Research, Inc.

  • Page 37: Rb-2X Utilities Application

    This chapter describes the Utilities Application structure of the RB-2X and contains the following section: 6.1 Utilities Overview 6.1 Utilities Overview Figure 13 below shows the Administration Application screen. An overview of each function is explained. Figure 13 RB-2X Utilities Application view Bantam Plus Getting Started Guide v6 Radian Research, Inc.
  • Page 38 Plus via Ethernet. 6.1.5 Remote Assistant: enables operator to request remote assistance. 6.1.6 Updates Back-up and Restore: enables the operator to check for software & firmware update, restore Windows settings, back-up files. Bantam Plus Getting Started Guide v6 Radian Research, Inc.

  • Page 39: Rb-2X Site Information Application

    Information, including ability to add meter's serial number, can be viewed by selecting the „Data View‟ key found in the Meter Test Window, reducing or negating the need for input from the operator. Figure 14 Site Information Application View Bantam Plus Getting Started Guide v6 Radian Research, Inc.

  • Page 40: Figure 15 View Of The Meter Test Screen With The Data View Enabled To View Or Edit Meter

    Access to ‘Data View’ screen Toggle key to change appearance of ‘Data View’ screen. Figure 15 View of the Meter Test screen with the Data View enabled to view or edit Meter information. Bantam Plus Getting Started Guide v6 Radian Research, Inc.

  • Page 41: Routine Maintenance And Service

    8.1 Contact Information 8.2 Routine Maintenance 8.3 Service 8.4 Helpful Documentation and Resources 8.1 Contact Information For questions related to maintenance and service, contact Radian Research, Inc.: Radian Research, Inc. 3852 Fortune Drive Lafayette, IN 47905 USA Tel: (765) 449-5500...

  • Page 42: Service

    Step 4. Note that each current conductor has a replaceable liner. Clean each liner using compressed air being careful that all loose debris is removed. Should oil be present remove the liner from the Bantam Plus before using an oil solvent for cleaning. Bantam Plus Getting Started Guide v6 Radian Research, Inc.

  • Page 43: Warranty Service

    8.3.2 Warranty Service Radian Research, Inc. warrants that each product is free from defects in material and workmanship. Our obligation under this warranty is to repair or replace any instrument or component therein that, within two years after shipment and with normal use, proves to be defective upon examination.

  • Page 44: After-Warranty Service

     Ship returned items prepaid, fully insured, and in the original packing to minimize the possibility of damage.  Radian Research, Inc. will not accept collect shipments and does not accept liability for damage caused by improper packing or handling during shipment.

  • Page 45: Helpful Documentation And Resources

     Include in the shipment a detailed description of the problem and the events that led up to the development of the problem.  Radian Research, Inc. will invoice return shipping costs to the customer. 8.4 Helpful Documentation and Resources Visit the Radian web site at: http://www.radianresearch.com/FAQ/index.html...

This manual is also suitable for:

Bantam plus rb-20Bantam plus rb-21Bantam plusRb-2x
