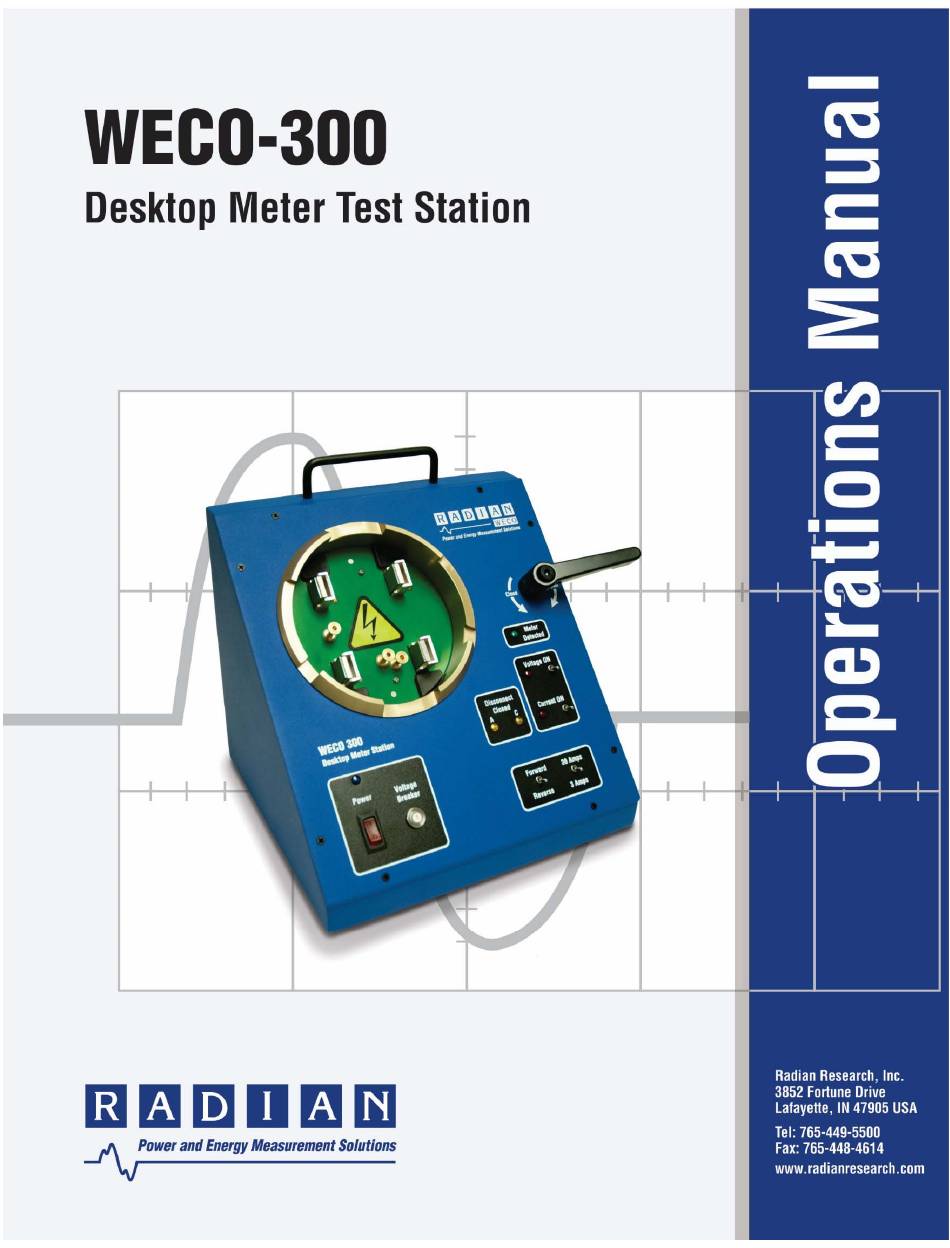

- Page 3 The information contained in this Operations Manual remains the property of Radian Research, Inc. It is provided in good faith for the operation and servicing of this Radian Research, Inc. product. We reserve the right to take legal action where this information is divulged to third parties without our written consent or in circumstances that may cause us commercial harm.
-
Page 4: Table Of Contents
4.4 Disconnect Back Feed Interlock Test ................12 5 Routine Maintenance and Service ..................13 5.1 Contact Information ......................13 5.2 Routine Maintenance ......................13 5.3 Warranty Service ....................... 15 5.4 After Warranty Service ...................... 16 11-17 WECO-300 Operations Manual RR944058.2 Radian Research, Inc. -
Page 5: About This Operations Manual
1.1 Product Overview The WECO-300 Desktop Meter Test Station is designed to be easy to operate and requires minimal setup. A general overview of the WECO-300 and its interface is listed below. ... -
Page 6: Product Features
The WECO-300 Desktop Meter Test Station is a truly compact portable desktop station weighing in at only 16.5 lbs. The WECO-300 provides a safe environment to perform a wide range of functional meter tests. The WECO 300 offers the following features: ... -
Page 7: Specifications
2.1.1 Thank you for purchase Thank you for purchasing this quality Radian Research, Inc. product. We have taken every effort to ensure that your WECO-300 Desktop Meter Test Station reaches you in perfect condition. ... -
Page 8: Operational Considerations
To protect the WECO-300 Desktop Meter Test Station and ensure optimal performance, follow these guidelines: ‐ When placing the WECO-300 Desktop Meter Test Station for use, avoid wet or dusty environments. If the equipment is exposed to wet conditions, there is an electrical shock hazard present. -
Page 9: Product Features
Meter Detected LED o This LED will illuminate when the WECO-300 has detected a meter present in the Meter Socket. The WECO-300 must be turned on, one black paddle on the top and one black paddle on the bottom must be engaged, and the Socket Open/Close Handle must be in the Closed position for the WECO-300 to illuminate this LED. - Page 10 The Power LED illuminates when the WECO-300 is receiving power and the unit is turned on. Power Switch o The Power Switch on the WECO-300 turns the unit on and off. The Power Switch is also a circuit breaker to protect the entire unit. 10 ...
-
Page 11: Operations Overview
Set Forward/Reverse switch in Reverse position. Ensure meter is accumulating received energy either through meter display or with meter manufacturer supplied software. 11 03-18 WECO-300 Operations Manual RR944058.2 Radian Research, Inc. -
Page 12: Disconnect Relay Test
Disconnect closed LEDs will remain illuminated until current is removed by turning off the Current On switch. **Note: The Disconnect Closed LEDs will be illuminated with disconnect open and Current On switch enabled. 12 03-18 WECO-300 Operations Manual RR944058.2 Radian Research, Inc. -
Page 13: Routine Maintenance And Service
5.0 Routine Maintenance and Service 5.1 Contact Information For questions related to maintenance and service, contact Radian Research, Inc. Radian Research, Inc. 3852 Fortune Drive Lafayette, IN 47905 USA Tel: (765) 449‐5500 Fax: (765) 448‐4614 Email: technicalsupport@radianresearch.com Website: www.radianresearch.com 5.2 Routine Maintenance Alternate Positions of Movable Potential Terminal... - Page 14 Meter Socket Diagram The WECO-300 Desktop Meter Test Station requires little maintenance. However, certain maintenance tasks should be performed to maintain the life, longevity and your unit operating efficiency. Before each use: ‐ Inspect the unit and power cable for any damage.
-
Page 15: Warranty Service
5.3 Warranty Service Radian Research, Inc. warrants that each product is free from defects in material and workmanship. Our obligation under this warranty is to repair or replace any instrument or component therein that, within two years after shipment and with normal use, proves to be defective upon examination. -
Page 16: After Warranty Service
‐ Radian Research, Inc. will pay local domestic surface freight costs to return the product to the customer. Radian will not pay for overnight or express shipping service. Use the following address for warranty returns: ‐...
