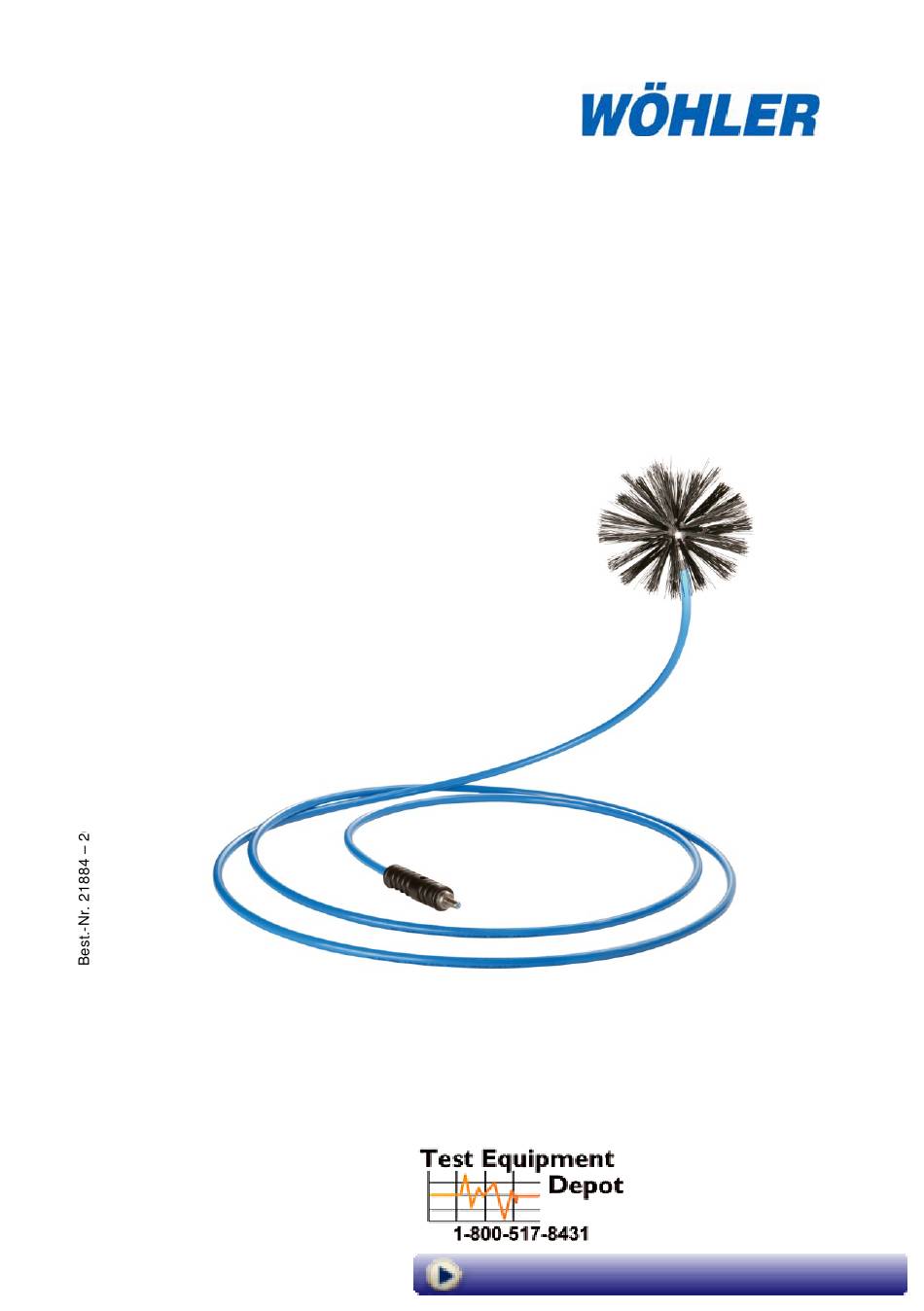

- Page 1 Manual Wöhler Rotary Viper Vent M 10 99 Washington Street Melrose, MA 02176 Phone 781-665-1400 Toll Free 1-800-517-8431 Visit us at www.TestEquipmentDepot.com...
-
Page 2: Table Of Contents
Contents Contents General Information ......12 Operation Manual Information ..... 12 Notes ............12 Intended Use ..........12 Scope of supply ........... 13 Transport and storage ......... 13 Manufacturer..........13 Specifications ........14 Overview ..........15 Preparing for use ........ 15 Fitting the cleaning attachment .... -
Page 3: General Information
General Information General Information Operation Manual In- This operation manual allows you to work safely with the Wöhler Viper Vent. Please keep this formation manual for your information. The Wöhler Viper Vent Set is to be used by pro- fessionally trained personnel exclusively for the purpose for which it was designed. -
Page 4: Scope Of Supply
General Information Scope of supply Meter Basic equipment Wöhler Rotary Viper Rotary Viper Vent Ventilation M 10 Brush Head Perlon (Ø 18 cm) Depending on set con- figuration: Optional cleaning heads Transport and storage ATTENTION! The device may be damaged if improperly trans- ported or stored! •... -
Page 5: Specifications
Specifications Specifications Rotary viper Length 1.5 m or 3 m or 5 m or 10 m or 15 m Max. torque Clockwise rotation: 3 Anticlockwise rotation: 1.5 Nm Failure moment Clockwise rotation: 9 Anticlockwise rotation: 4.5 Nm Max. speed Clockwise rotation: 1300 rpm Anticlockwise rotation: 650 rpm... -
Page 6: Overview
Overview Overview Fig. 3: Components of the Wöhler Rotary Viper Vent Legend Rotary viper Power drill connector Cleaning attachment, here Perlon brush head Preparing for use Fitting the cleaning attachment ATTENTION! Use only brush head or impact brush attachments made of Perlon. -
Page 7: Connecting The Power Drill
Preparing for use • Screw the locknut (3) on to the cleaning at- tachment. • Screw the cleaning attachment (brush head or impact brush) (1) into the coupling (2). • Use a wrench to hold the locknut in position and tighten the cleaning attachment using a second wrench. -
Page 8: Using The Rotary Viper
Using the rotary viper Using the rotary viper • Before using, unroll the rotary viper fully. • Power on the power drill to make the cleaning attachments rotate. ATTENTION! The rotary viper must only rotate clockwise. If it rotates anticlockwise, there is a risk the attached brush will work loose. -
Page 9: Maintenance
Maintenance Maintenance The Wöhler rotary viper requires very little maintenance. The bearings in the end pieces are self-lubricating. The core is sufficiently greased with high-quality graphite lubricant. After it has been in use for a long time it is possi- ble that the grease in the core will need to be re- plenished. -
Page 10: Warranty And Service
Warranty and Service Warranty and Service Warranty Each Wöhler Rotary Viper Vent will be tested in all functions and will leave our factory only after ex- tensive quality control testing. If used properly, the warranty period for the Wöh- ler Rotary Viper Vent will be twelve month from the date of sale.
