Wohler GS 300 Manual

Gas sniffer
Hide thumbs Also See for GS 300:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Manual
Test Equipment Depot - 800.517.8431 - 99 Washington Street Melrose, MA 02176
TestEquipmentDepot.com
Manual
EN
Gas Sniffer
Wöhler GS 300

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GS 300 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Wohler GS 300

Summary of Contents for Wohler GS 300

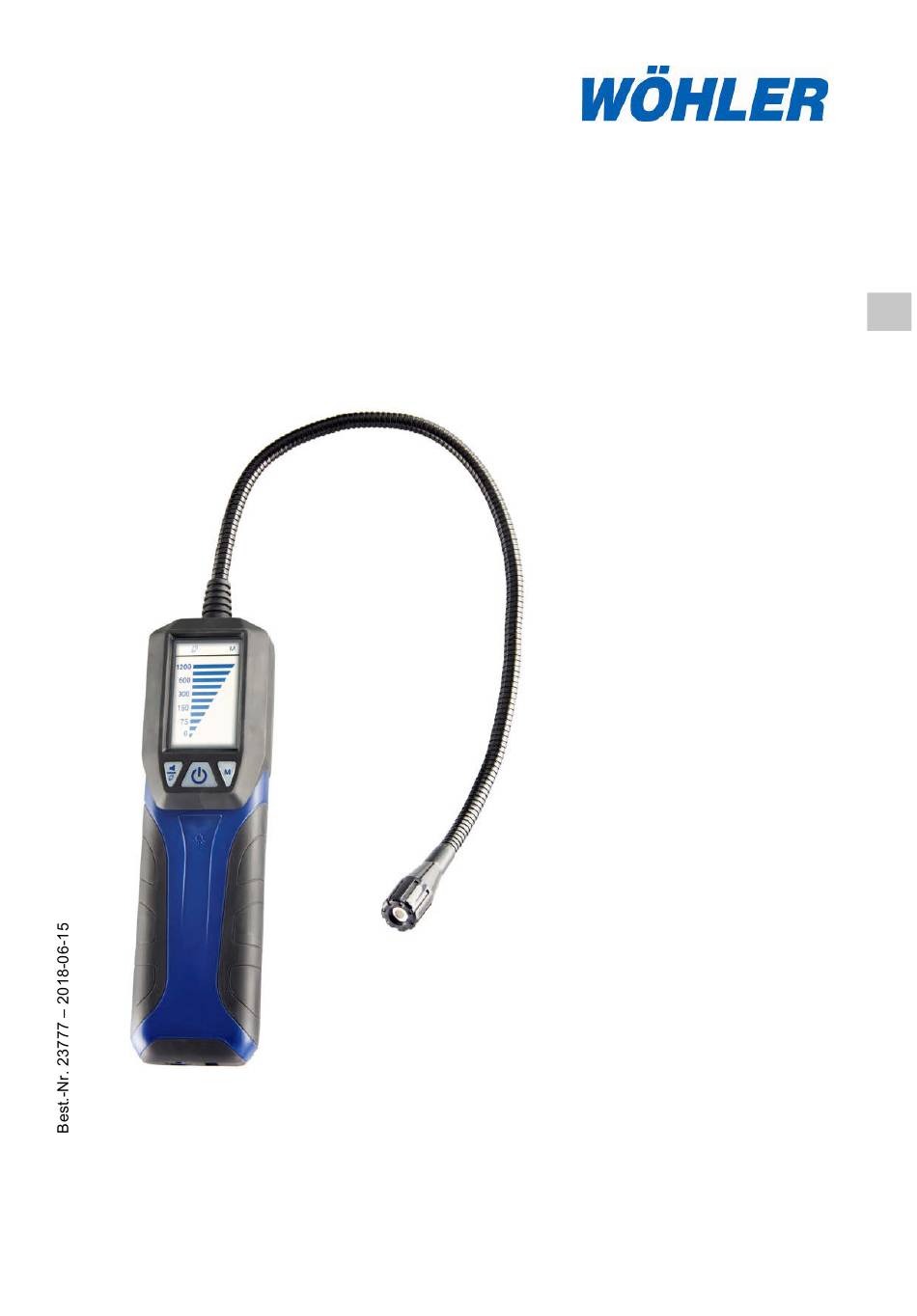

  • Page 1 Test Equipment Depot - 800.517.8431 - 99 Washington Street Melrose, MA 02176 TestEquipmentDepot.com Manual Gas Sniffer Wöhler GS 300...

  • Page 2: Table Of Contents

    Contents Contents General Information ......17 Operation Manual Information ..... 17 Notes ............17 Intended Use ..........17 Information on disposal ....... 18 Direction ............18 Technical Data ........19 Important information ......20 Product ..........21 Meter ............21 Screen ............

  • Page 3: General Information

    NOTE! Useful information Intended Use The Wöhler GS 300 Gas Sniffer is a gas leak de- tector for the tightness control and for the leakage testing of gas tubes. The meter shows the concentration of methane and propane on a bar graph display from 0 ppm to 1200 ppm.

  • Page 4: Information On Disposal

    General Information Information on disposal Electronic equipment does not belong into domes- tic waste, but must be disposed in accordance with the applicable statutory provisions. You may hand in any defective batteries taken out of the unit to our company as well as to recycling places of public disposal systems or to selling points of new batteries or storage batteries.

  • Page 5: Technical Data

    Technical Data Technical Data Description Data Sensor Semiconductor Range Methan 0 to 1,200 ppm Propane 0 to 1,200 ppm Alarm intermittent beep and vibration alarm Response Time 10 seconds, approx. Warm up time 60 seconds, approx. Environmental con- ditions: Operating -5 to 45 °C Temperature Storage...

  • Page 6: Important Information

    Important information WARNING! The Wöhler GS 300 may never be used in an environment where there is the risk of explosion. If the environment is suspected to conglomerate potentially explosive gases, in no case you must use the Wöhler GS 300. Batteries may not be taken from the device and/or be changed in such an environment.

  • Page 7: Product

    Product Product Meter Flexible Probe On/Off-key Mode-key: Selection Propane / Methane Alarm-key: Selection beep / vibration alarm / beep and vibration alarm / no alarm Light-sensor Earphone jack Mains connection Flashlight Fig. 8: Gas Leak Detector Screen Battery Icon 9 10 11 ATTENTION! Change batteries as soon as the battery icon ap- pears...

  • Page 8: Operation

    3 seconds. The meter will switch off after 3 seconds. NOTE! If the Wöhler GS 300 has not been used for a long time, we recomend to repeat the warm up/calibration phase several times to achieve a higher sensitivity and accuracy.

  • Page 9: Selecting The Measuring Mode

    Operation Selecting the Click mode-key to switch between the measuring modes methane and propane. measuring mode M (methane) or P (Propane) will be displayed in the upper right corner of the display. Alarm setting • Press the alarm key several times until the required alarm setting is displayed.

  • Page 10: Changing The Batteries

    Changing the batteries Changing the bat- When battery voltage is low, a battery icon will appear on screen. teries ATTENTION! Change batteries as soon as the battery icon ap- pears • Replace the batteries by 4 new mignon cells as follows: •...
  • Page 11 Charging the rechargeable batteries The batteries can be recharged even while they are located in the meter. NOTE! It is possible to operate the meter when charging is in progress. ATTENTION! Ensure rechargeable batteries are equipped in the meter before charging. Never try to charge dis- posable batteries.

  • Page 12: Service

    Declaration of conformity The product Produktname: Wöhler GS 300 Leakage Tester complies with the key safety requirements set down in the guidelines of the Council for the Harmonization of the Legal Requirements of the Member States in relation to the electromagnetic compatibility (2014/30/EU).

  • Page 13: Accessories

    Accessories Accessories Headphone with volume control Order no. 55145 Power supply pack 9 V Order no. 4281 Rechargeable batteries NiMH Order no. 9407 Test Equipment Depot - 800.517.8431 - 99 Washington Street Melrose, MA 02176 TestEquipmentDepot.com...
