L-46
Thank you for purchasing the HOZAN L-46 STEREO MICROSCOPE. With proper care
and handling, this fine instrument will provide years of trouble-free operation. Please read
this entire instruction manual carefully before attempting to place this instrument in service.
Please keep this instruction manual available for reference.

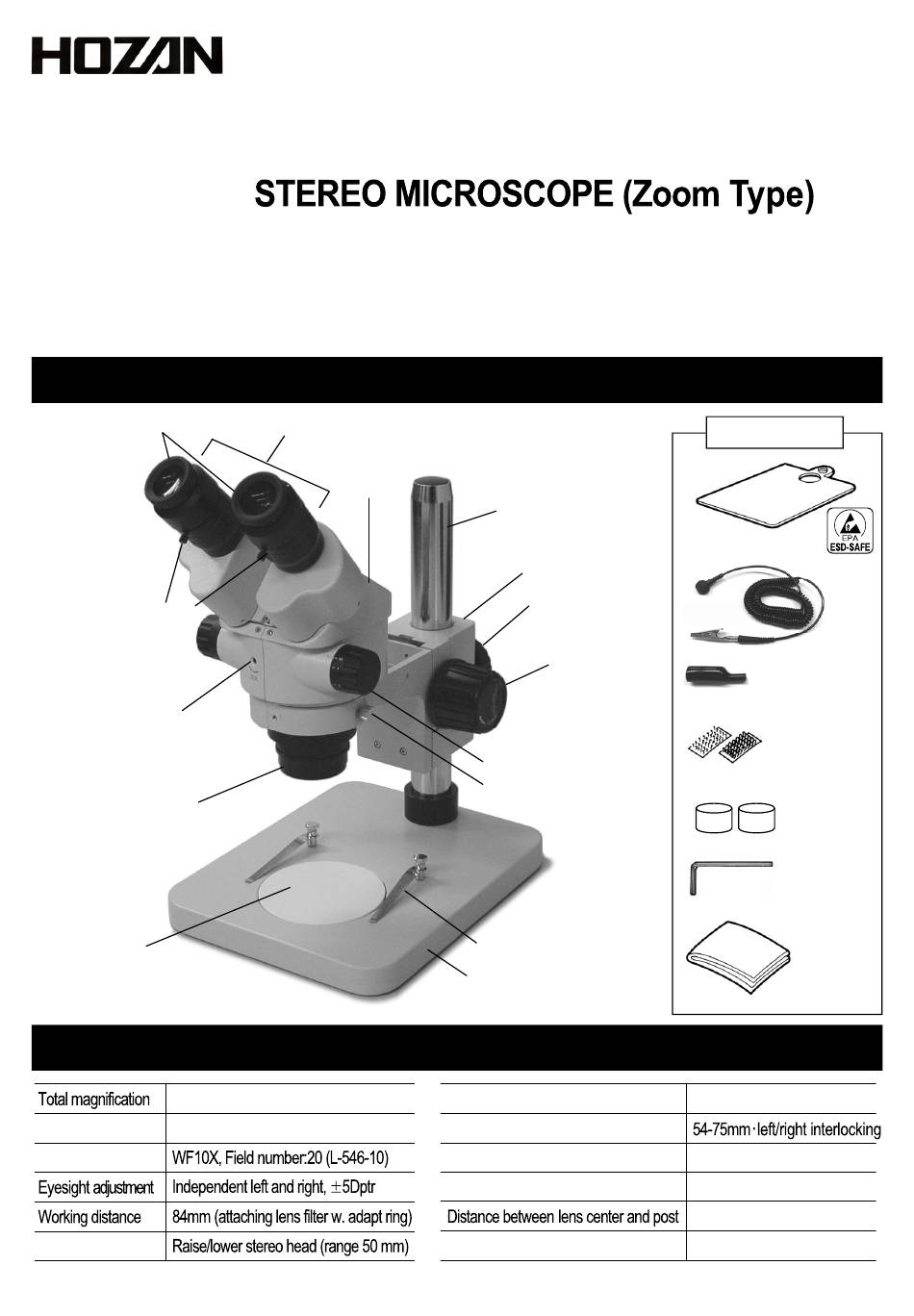

Identification of parts and contents
Eye cup (short)
Eyepiece
set screws
Lock device for
zoom adjust knob
Lens filter
with adapt ring
Stage
Specifications
7-45X
0.7-4.5X(zoom ratio 6.4)
Objectives
Eyepieces
Focusing
Eyepieces with eyesight adjustment
Head
INSTRUCTION MANUAL
Post
Holder
Holder
set knob
Focus knob
Zoom adjust knob
Head set screw
Clip
Table
Stereo head type
Pupil distance range
Table dimensions
Post height
Weight
１
Accessories
ESD rubber mat
Ground cord
Insulation cover
for alligator clip
4 pairs of
hook and loop
fasteners
Eye cups (long)
Hex keys
Opposite size 2 mm
Dust sheet
45° inclined tube
200(W)X255(D)mm
282mm
133mm
4.2kg
Advertisement
Table of Contents
Related Manuals for HOZAN L-46
Summary of Contents for HOZAN L-46
- Page 1 INSTRUCTION MANUAL L-46 Thank you for purchasing the HOZAN L-46 STEREO MICROSCOPE. With proper care and handling, this fine instrument will provide years of trouble-free operation. Please read this entire instruction manual carefully before attempting to place this instrument in service.
- Page 2 Caution 1. Do not disassemble or modify the L-46 yourself, otherwise this could cause a malfunction. 2. Always keep the lens filter in place to prevent dust or fumes from contaminating the interior of the microscope.
- Page 3 Preparation ２ Mount the holder at the low end on the post. Turn toward the front, then securely tighten the holder set knob. Holder set knob Mount the head. ３ Turn toward the front and secure the head set screw into any female screws, right, left or front.
- Page 4 Preparation Procedures in case of using the ESD rubber mat The provided rubber mat is a static controlled ESD rubber mat. Use it with grounding when inspecting electronic components which are sensitive to static electricity. １ Settle the table accompanied by the post and the holder on an appropriate place.
- Page 5 The stereo barrels will rotate drawing arcs interlocking with (refer to the photo). ３ Place an object just under the objectives. Prepare lighting apparatus such as Hozan’s L-711 LED LIGHT (refer to page 7) if necessary. ４ Adjust the zoom adjust knob to 4.5 maximum magnification.
- Page 6 Taking notes of sight adjust value can omit procedure 7 when the next work. Transfer Hold the table by one hand and the post by the other hand tightly when transfer the L-46. Inspecting a long object The section of a long object and such can be inspected through the hole from which the stage has been detached.
- Page 7 Related products Use only the following optional accessories manufactured by HOZAN. Lighting systems L-711 LED light The light has few fluctuations of brightness and no flicker at all. L-711 Various lighting systems can be used. Please refer to our catalog or web catalog.
- Page 8 Products which bear the “ ” mark are products to which the standard values (see table below) apply. The “ESD Standard” listed on each of the product pages denote the HOZAN standard for the product. ESD-safe item requirements (Excerpted from RCJS-5-1) Item-specific requirements 【...
