L-461
Thank you for purchasing the HOZAN L-461 STEREO HEAD SCOPE (Zoom type). With
proper care and handling, this fine instrument will provide years of trouble-free operation.
Please read this entire instruction manual carefully before attempting to place this
instrument in service. Please keep this instruction manual available for reference.

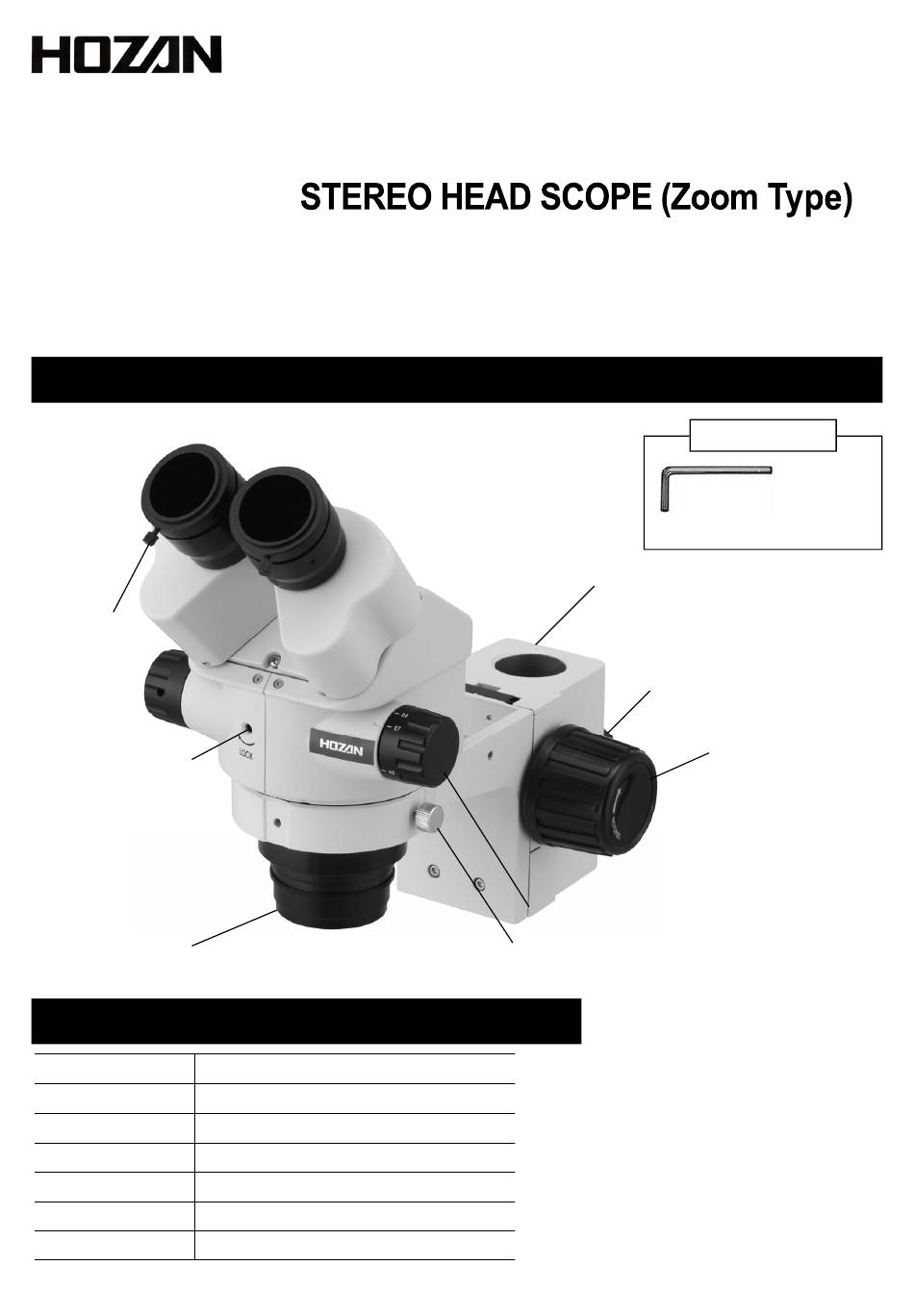

Identification of parts and contents
Eyepiece
set screws
Lock device for
zoom adjust knob
Lens filter
with adapt ring
Specifications
Objectives
Eyesight adjustment
Working distance
Focusing
Stereo head type
Pupil distance range
Weight
0.7-4.5X(zoom ratio 6.4)
Independent left and right, ±5 Dptr
84mm (attaching lens filter w. adapt ring)
Raise/lower stereo head (range 50 mm)
45° inclined tube
54-75mm・left/right interlocking
2.4kg
INSTRUCTION MANUAL
Holder
Zoom adjust knob
Head set screw
１
Accessories
Hex keys
Opposite size 2 mm
Holder
set knob
Focus knob
Optional parts such as
Eyepieces (L-546-10)
and Standard Table
(L-462) or others are
necessary for using this
unit as a microscope.
Advertisement
Table of Contents
Related Manuals for HOZAN L-461
Summary of Contents for HOZAN L-461
- Page 1 INSTRUCTION MANUAL L-461 Thank you for purchasing the HOZAN L-461 STEREO HEAD SCOPE (Zoom type). With proper care and handling, this fine instrument will provide years of trouble-free operation. Please read this entire instruction manual carefully before attempting to place this instrument in service.
- Page 2 If it becomes necessary to remove them, hold them with both hands to prevent dropping them and possibly causing injury to personnel. Caution Do not disassemble or modify the L-461 yourself, otherwise this could cause a malfunction 2. Protect the unit against physical shock or vibration during transport. Otherwise, this could cause a malfunction.
- Page 3 Preparation Mount the head. ３ Turn toward the front and secure the head set screw into any female screws, right, left or front. Head set screw ４ Remove the cap from the objectives and attach the lens filter accompa- Objectives nied by the adapt ring.
-
Page 4: Operation
The stereo barrels will rotate drawing arcs interlocking with (refer to the photo). ３ Place an object just under the objectives. Prepare lighting apparatus such as Hozan’s L-711 LED LIGHT (refer to page 6) if necessary. ４ Adjust the zoom adjust knob to 4.5 maximum magnification. - Page 5 Lock device for zoom adjust knob The zoom adjust knob can be locked. This is useful when a uniform magnification is required e.g. using the measurement function of Hozan’s L-830 USB CAMERA, refer to bellow. Insert the hex key 2mm provided into the opening, then turn clockwise as the arrow indicated under the opening.
-
Page 6: Related Products
Related products Use only the following optional accessories manufactured by HOZAN. Lighting systems L-711 LED light The light has few fluctuations of brightness and no flicker at all. L-711 Various lighting systems can be used. Please refer to our catalog or web catalog. -
Page 7: Daily Care
Daily care Lenses Wipe away any dust gently with a soft cloth or a piece of gauze. ● Clean away fingerprints or oil stains with a cloth which is lightly soaked in IPA or ● denatured alcohol (such as ethyl alcohol or methyl alcohol). ＊... - Page 8 1-2-12 Saiwaicho, Naniwa-ku, Osaka 556-0021, Japan Tel : +81-6-6567-3111 F a x : +81-6-6562-0024 17.11...
