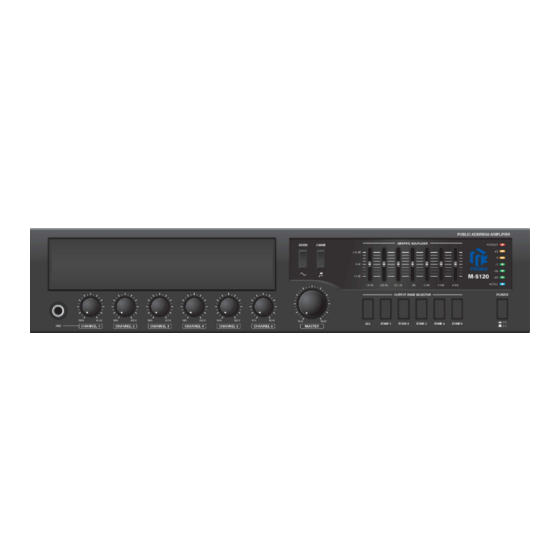

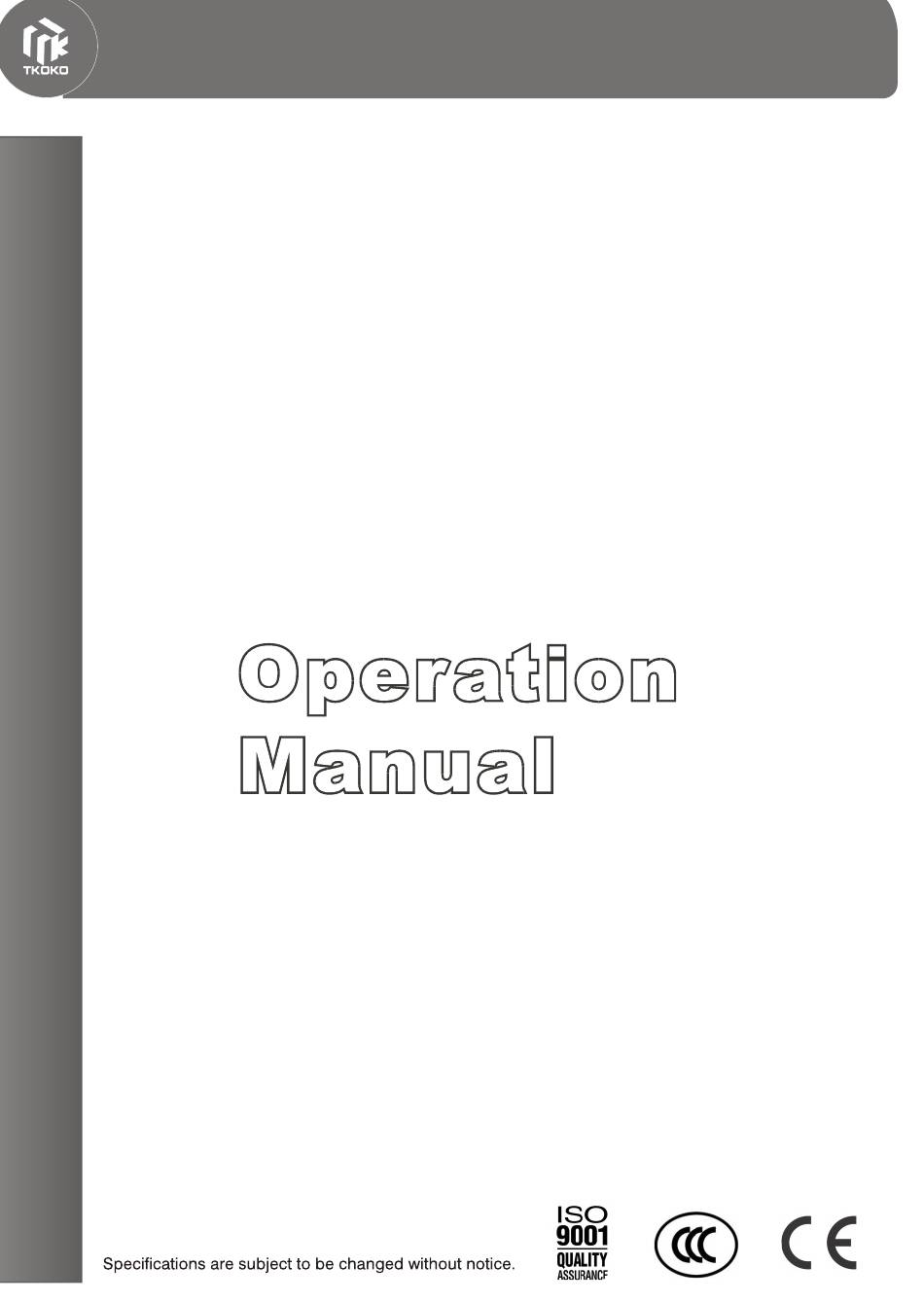

- Page 1 Public address systems & Commercial sound systems M-5060, 5120, 5240, 5300 Mixer Amplifier www.t-koko.com...
- Page 2 WARNING TO PREVENT FIRE OR SHOCK HAZARD.DO NOT USE THIS PLUG WITH AN EXTENSION CORD, RECEPTACLE OR OTHER OUTLET UNLESS THE BLADES CAN BE FULLY INSERTED TO PREVENT BLADE EXPOSURE. TO PREVENT FIRE OR SHOCK HAZARD.DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE. TO PREVENT ELECTRIC SHOCK.MATCH WIDE BLADE PLUG TO WIDE SLOT FULLY INSERT.
-
Page 3: Table Of Contents
M-5060/M-5120/M-5240/M-5300 Table of Contents Table of Contents Introduction..................2 Features ....................3 Front Panel Controls ................4 Rear Panel Controls ................5 Setup ....................6 Wiring Guide ..................7 Connections ..................8 Operations ..................11 Applications ..................15 Block diagram ..................16 Specifications ..................17... -
Page 4: Introduction
M-5060/M-5120/M-5240/M-5300 Introduction Introduction Welcome Congratulation and thank you for purchasing the M series, a multi-function commercial amplifier. These amplifiers are designed to provide a big impact in sound reproduction and to produce the best and highest quality audio at an affordable price. We wish you great enjoyment and satisfac- tion when using your amplifier, whether you are an installation, or reinforcement engineer. -
Page 5: Features
* Phantom power for MIC channel 1 and 2. * Three layer priority muting. * Built in four kinds user selectable pre-announce chime. * 60watts(M-5060),120watts(M-5120) ,240watts(M-5240),300watts(M-5300) power output. * Advanced protection system includes current limiting, over current and thermal protection. * Desktop and 19-inches rack mountable type. -
Page 6: Front Panel Controls
M-5060/M-5120/M-5240/M-5300 Controls Front Panel Controls 1. Bay for adding optional music source (CD player with AM/FM Tuner,or MP3 player). 2. Graphic equalizer control (125Hz/250Hz/500Hz/1kHz/2kHz/4kHz/8kHz). 3. Indicators(Protection/Output level/Power). 4. Input channel volume controls. 5. Master volume control. 6. All speaker zone output selector. -
Page 7: Rear Panel Controls
M-5060/M-5120/M-5240/M-5300 Controls Rear Panel Controls 1. AC fuse. 2. Expansion ports ( AMP-IN/AMP-OUT/LINK-IN/LINK-OUT ). 3. Pre-announce chime/Siren level control 4. Gain controls for variable input level. 5. Phantom power and priority control switches. 6. Signal input connectors. 7. Telephone paging input connector. -
Page 8: Setup
M-5060/M-5120/M-5240/M-5300 Setup Setup Installation CAUTION: Before you begin, make sure your mixer-amplifier is disconnected from the power source, with the power switch in the OFF position and all level controls turned completely down(counterclockwise) You may stack mixer-amplifiers without using a cabinet or you may place a single mixer-amplifier on a surface with 12-inches (about 30cm) of air space around the unit for convection cooling. -
Page 9: Wiring Guide
M-5060/M-5120/M-5240/M-5300 Setups Wiring Guide Choose input wire and connectors TKOKO recommends using pre-built or professionally wired balanced line,22 to 24 gauge cables. Figure shows connector pin assignments for wiring .The RCA input connections can also be used for unbalanced inputs. -
Page 10: Connections
Setups Choose input wire and connectors For the amplifier output connectors,TKOKO recommends using pre-built or professionally wired, high-quality, and heavy gauge speaker wires.You may use screw terminal for your output connec- tors.To prevent the possibility of short-circuits, wrap or otherwise insulate exposed loudspeaker cable connectors. - Page 11 M-5060/M-5120/M-5240/M-5300 Setups Speaker connection is shown in Figure. [ How to connect speakers ] CAUTION : Never use both the Low-Z(4 ohms)and Hi-Z(25V, 70V and 100V) terminals at the same time [ Wrong connection ]...
- Page 12 M-5060/M-5120/M-5240/M-5300 Setups Typical input and output wiring is shown in Figure.
-
Page 13: Operations
M-5060/M-5120/M-5240/M-5300 Operation Operations External equipments connection By connecting a signal processor such as an equalizer or limiter between the mixer section (PR E-AMP OUT) and the power amplifier section(AMP IN) of the M series, signals can be tailored for desired sound output. - Page 14 M-5060/M-5120/M-5240/M-5300 Operation Preannounce chime M series mixer-amplifier supply user selectable 2 kinds of preannounce chime. The way of set up is same as follow figure . [ Chime selection ] Priority This function allows talk over for MIC channel 1 and 2.
- Page 15 M-5060/M-5120/M-5240/M-5300 Operation Signal input gain control M series mixer-amplifier can accept variable and wide range input signal with trim pot. Adjusts the trim pot in a range of 44dB to accept variabe external equipments. Figure 3.6 shows detail input sensitivities.
- Page 16 M-5060/M-5120/M-5240/M-5300 Operation Connection Input XLR jack Stereo 6.3mm jack(CH6) RCA (CH6) for both microphone in and line in CH1~CH6 input sensitivity can be adjusted. Output 4Ù constant impedance output, connect to ground independently. Rated power output of 5 zones; Each zone can be controlled by the switch; Common grounding.
-
Page 17: Applications
M-5060/M-5120/M-5240/M-5300 Application Application M-5060 M-5120... -
Page 18: Block Diagram
M-5060/M-5120/M-5240/M-5300 Block diagram Block diagram... -
Page 19: Specifications
M-5060/M-5120/M-5240/M-5300 Application Specification Performance M-5060 M-5120 M-5240 M-5300 Balanced Microphone Channels -50dB Balanced Line Channels -6dB -50dB -6dB Input Sensitivity for Balanced Remote Microphone Station(RCA jack) (-30dB 14dB 3dB) full output at maximum gain Balanced Telephone Paging -21dB Unbalanced Link-In...
