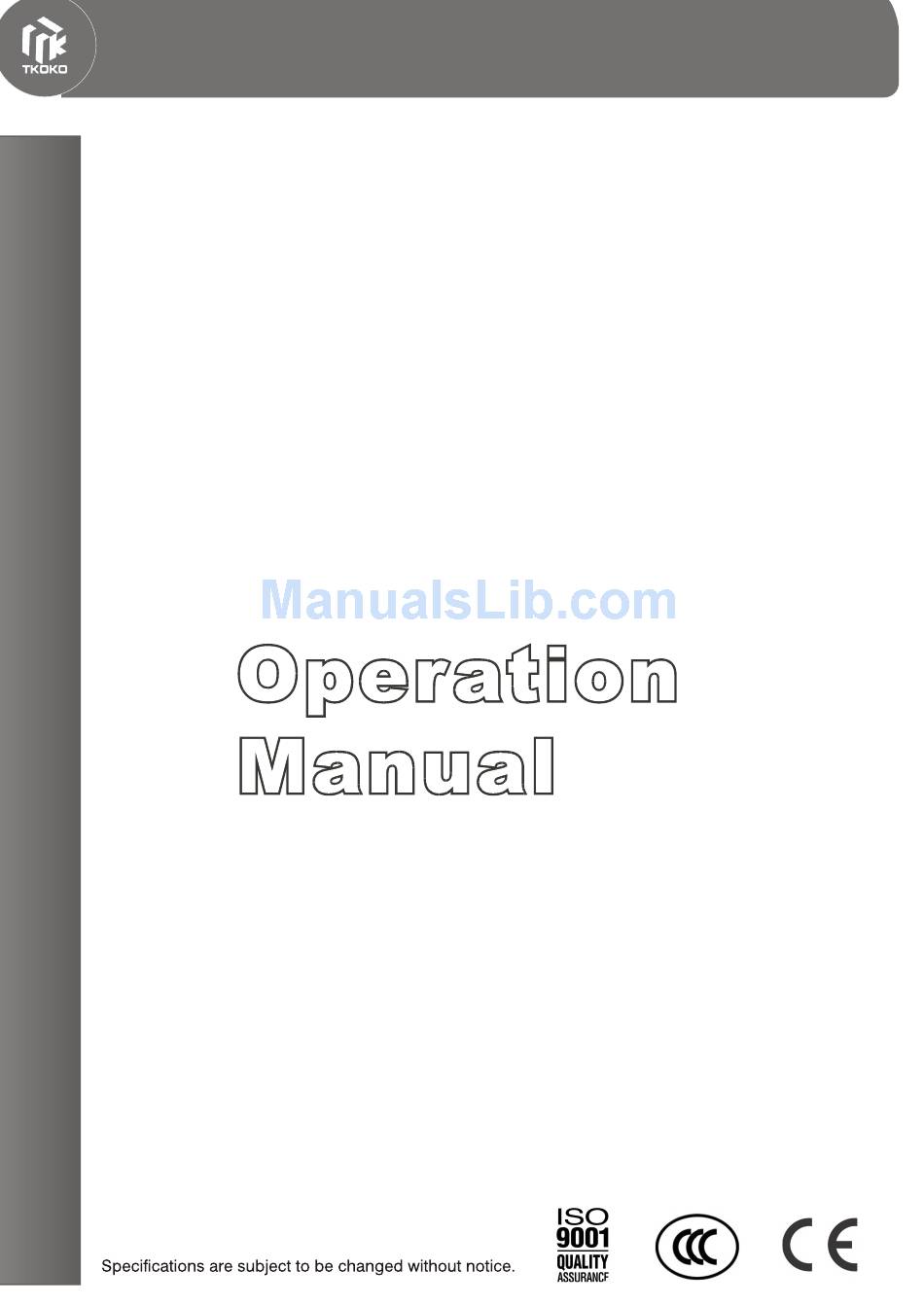

- Page 1 Public address systems & Commercial sound systems SA-30W, SA-60W Mixer Amplifier www.t-koko.com...
- Page 2 SA-30W / SA-60W INSTRUCTION MANUAL - MANUEL D’INSTRUCTIONS 1.Telephone Paging Volume Control 1. Contrôle de volume Paging Téléphone 2.Microphone Volume Control 2. Contrôle volume du microphone 3.AUX/CD Volume Control 3. Contrôle du volume 4.Equalizer Controls 4. Contrôle d’égalisation 5.Master Volume Control 5.
- Page 3 Equalizer Controls Three different controls for three frequency bands. Those volume controls will increase or decrease bass and treble or add some presence to the sound. Manual Priority Terminals These two terminals, when shorted, will mute incoming signal from AUX and CD inputs, thus giving priority to the Telephone Paging and Microphone.
- Page 4 Telephone Paging Input This special input (terminals 1 and 3) will allow you to page in your PA system using your own telephone set. Pin 2 is Ground and Pin 4 is for manual priority switching. Any signal going through Pin 3 with automatically triggers the priority system without any manual intervention. At the end of the announcement, the system will return to its normal operation. A Gain control is located next to the input in order to increase incoming volume if necessary. Final adjustment will be made with the Tel Paging volume control located on front panel. Recommandations Keep your amplifier away from excessive humidity, dust or grease. This unit has sensitive components that can be affected in a difficult environment. If, at one point during its usage, the fuse on the AC line needs to be changed make sure that the replacement is of the same value. It is important that you try to identify the reason for this failure. This will most likely prevent further damage to your amplifier. Any service work on this unit should be performed by a qualified technician. TECHNICAL SPECIFICATIONS Model SA‐30W SA‐60W ...
