Classic Accessories Fremont Owner's Manual

Pontoon boat
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Fremont
The
Pontoon Boat
O W N E R ' S
M A N U A L

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Fremont and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Classic Accessories Fremont

Summary of Contents for Classic Accessories Fremont

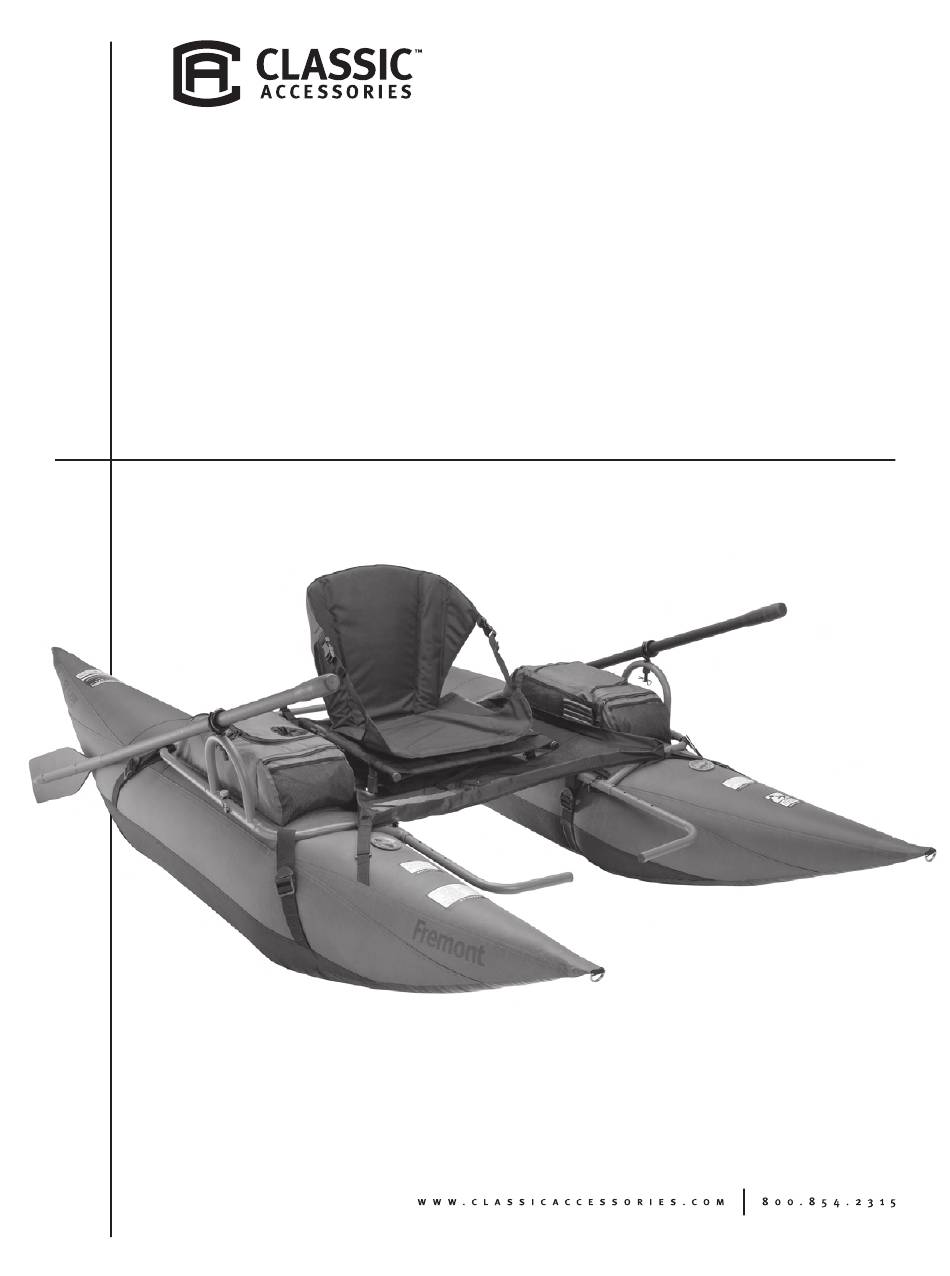

  • Page 1 Fremont Pontoon Boat O W N E R ' S M A N U A L...

  • Page 3: Table Of Contents

    F R E M O N T P O N T O O N B O A T O W N E R ’ S M A N U A L T A B L E O F C O N T E N T S INTRODUCTION SAFETY INFORMATION AND SYMBOLS RESPONSIBILITIES OF THE OPERATOR(S)

  • Page 4: Introduction

    F R E M O N T P O N T O O N B O A T O W N E R ’ S M A N U A L I N T R O D U C T I O N Congratulations on your purchase of a Classic Accessories pontoon boat. This manual has been compiled to help you assemble your boat correctly and operate it safely.

  • Page 5: Safety Information And Symbols

    F R E M O N T P O N T O O N B O A T O W N E R ’ S M A N U A L S A F E T Y I N F O R M A T I O N A N D S Y M B O L S The symbol to the left is the Safety Alert symbol.

  • Page 6: Responsibilities Of The Operator(S)

    F R E M O N T P O N T O O N B O A T O W N E R ’ S M A N U A L R E S PO N S IB I LI T IE S O F TH E OP ERATO R(S) IMPORTANT SAFETY INFORMATION •...

  • Page 7: Product Specifications & Capacity

    P R O D U C T S P E C I F I C A T I O N S & C A P A C I T Y BOAT SPECIFICATIONS Product Name: FREMONT Pontoon Boat Dimensions: 96"L x 56" W x 30"H (top of the seat) Weight of carrying case containing boat, oars and pump: 42 lbs.

  • Page 8: Inflation

    F R E M O N T P O N T O O N B O A T O W N E R ’ S M A N U A L I N F L A T I O N PROPER INFLATION During final inflation, inflate until most of the wrinkles in the fabric are gone and it feels firm to the touch, but DO NOT exceed 2.5 psi (0.17 bar) in the main air...
  • Page 9 A S S E M B L Y A N D U S E It is important to follow these instructions to successfully and safely assemble your Classic Accessories Pontoon Boat. Please pay particular attention to the bold faced instructions and any information which has this symbol next to it.

  • Page 10: Parts List

    P A R T S L I S T Hard Frame Parts: Before you begin please unpack the carton and check that you have all your parts. 2 Foot Pegs Miscellaneous Parts: 2 Three-piece oars 1 Rear Platform Frame 2 Oarlocks 2 Oarlock Cotter Pins 1 Main Frame 8 Frame Clevis Pins Soft Parts:...

  • Page 11: Assembly And Use

    F R E M O N T P O N T O O N B O A T A S S E M B LY A N D C A R E I N S T R U C T I O N S A S S E M B L Y A N D U S E 1.
  • Page 12 4. Insert the foot pegs. Insert footpegs, and secure with frame pins (both sides). Front of boat 5. Insert the cargo deck frame. Insert cargo deck frame and secure with frame pins (both sides). Be sure to insert cargo deck frame through loop on cargo deck as shown [1]. Rear of boat...
  • Page 13 6. Attach seat. Place seat on platform matching rip-and-grip strips. Attach under seat strap and seat back hold up strap. Front view of seat 7. Secure seat. Clip seat back hold-up strap behind seat. Use side straps to adjust seat angle Bottom rear view of seat Seat back hold up strap Side view...
  • Page 14 8. Assemble oar lock frames. Rotate oar lock frames to the UP position. Insert pin, lock into place, and tighten knob. To set an oar in an oar lock, drop the thinnest section of the oar into the oar lock. Slide the oar until the oar stop rests against the oar lock. The oar stops are adjustable if desired. 9. Assemble foot pump adaptor. Insert white, cone shaped adaptor [A] into the end of the foot pump tube, nozzle first. Insert gray adaptor [B] into white adaptor as shown.
  • Page 15 12. Do the final fitting and adjustments. Sit in the boat on dry land and adjust the foot pegs and oar lock placement to your leg length and preference. Float your Fremont Pontoon Boat in shallow water. Push off, get seated comfortably, place your feet on the foot pegs and check to see if you are level in the water. (This is easier with a another person on shore). WARNING - The goal is to find your balance point. When you are floating in the boat it should be level in the water. WARNING - If you need to adjust the seat or foot pegs, bring the boat back to shore and make the needed adjustments.

  • Page 16: Packing The Carrying Case

    F R E M O N T P O N T O O N B O A T O W N E R ’ S M A N U A L P A C K I N G Y O U R F R E M O N T P O N T O O N B O A T I N S I D E T H E C A R R Y I N G C A S E Fully deflate pontoons.
  • Page 17 C L E A N A N G L E R S T A T E M E N T Classic Accessories is a proud partner of the Federation of Fly Fishers Clean Angler program. We invite you join us in our efforts to keep your favorite waterways free of invasive, non-native species that can seriously damage them.

  • Page 18: Repair And Troubleshooting

    F R E M O N T P O N T O O N B O A T O W N E R ’ S M A N U A L R E P A I R & T R O U B L E S H O O T I N G Repairing Tears and Holes in Pontoon Bladders If your pontoon bladder becomes torn or punctured, use the enclosed patches to fix it.
  • Page 19 R E P A I R & T R O U B L E S H O O T I N G If your boat appears to be losing air, it might not be because of a leak. Changes in air temperature, elevation and use on cold water (which can cool the air inside the pontoon bladders) can all have an effect on the air inside the bladders.

  • Page 20: Warranty

    If the boat, oars, backpack, or pump fail due to a defect in work manship and materials within one year from the date of purchase Classic Accessories will repair or replace it free of charge. This warranty gives you specific rights and you may also have other rights which vary from state to state.
